Thermal Imaging Laser Ranging Gimbals Drone Camera with 4K Camera and GPS 3-Axis Gimbal ZT30 180-Degree Hybrid Zoom Pod
Product Details:
|
|
Place of Origin: | Guangdong, China |
---|---|
Brand Name: | flysafe |
Model Number: | D6 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information |
|||
Max Thrust: | 6.5 Kg | Recommended Takeoff Weight: | 2 ~ 2.5 Kg |
---|---|---|---|
Recommended Battery: | 12S | Powertrain Arm Tube Outer Diameter: | 30 Mm |
Compatible Propellers: | Straight Propeller:22 X 7.8 " Foldable Propeller:22 X 9 " | Product Weight(without Props): | 429 G |
Highlight: | Brushless ESC Propulsion System,Industry Power Motor Propulsion System,Foldable Propellers Propulsion System |
Product Description

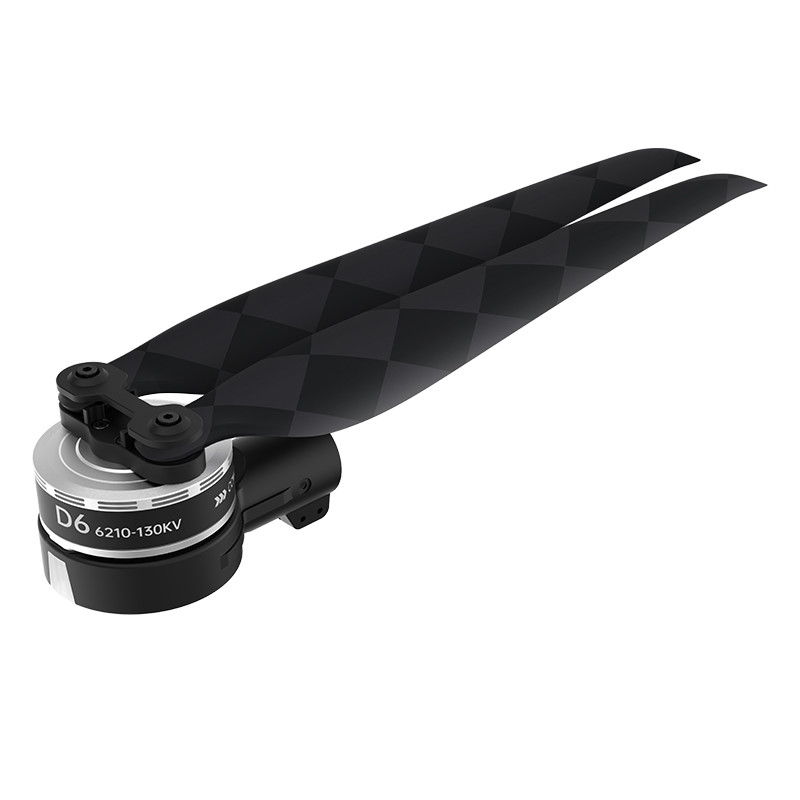

D6 is the first all-in-one industry power system independently developed by SIYI, which is stable, reliable, lightweight, compact, efficient and cooperative, it's easy for drones to select and maintain. It can be adapted to both straight and folding propellers, taking into account the thrust performance and flight efficiency. The dual-throttle control design not only support real-time adjustment and quick response, but also greaty improves the stability of data transmission and the anti-interference ability. The power system is equipped with a variety of sensors, real-time detection and storage of system voltage, current, temperature, speed and other core parameters. It is also adapted to the inclusive open source system and trustworthy commercial system, which injects strong vitality for empowering the construction of a sustainable industry ecology!
Item | Specs |
Model | 55 A FOC |
PWM Voltage Input | 3.3 / 5 V |
PWM Pulse Width | 1100 ~ 1940 μs |
PWM Working Frequency | 50 ~ 500 Hz |
Max Voltage | 60 V |
Max Current | 55 A |
Communication Protocol | CAN |
Firmware Upgrade | Supported |
Digital Throttle | CAN Throttle |
KV | 130 KV |
Motor Size | Φ67.7 * 23.1 mm |
Poles & Magnets | 24N28P |
Product Weight | 240 g |
Diameter x Pitch | 22 x 7.8 Inch |
Product Weight | 35.7 g |
Diameter x Pitch | 22 x 9 Inch |
Product Weight | 61.2 g |
Continuous Current | 23 A |
