UAV Drone Detection And Jamming Defense Integrated Equipment Vehicle Gps Blocker

Product Details

Place of Origin: Guangdong, China

Brand Name: flysafe

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: LC, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Drone Detection And Jamming gps blocker, Drone Detection And Jamming Integrated Equipment, vehicle gps blocker Jamming Equipment


Output Side:	900M /1.2G/ 1.5G /2.4G /5.2G/ 5.8G	Working Distance:	1-5Km
Electricity Consumption:	7000W	Weights:	80Kg
Sizes:	(550mm)400*1800mm

Output Side:	900M /1.2G/ 1.5G /2.4G /5.2G/ 5.8G
Working Distance:	1-5Km
Electricity Consumption:	7000W
Weights:	80Kg
Sizes:	(550mm)400*1800mm

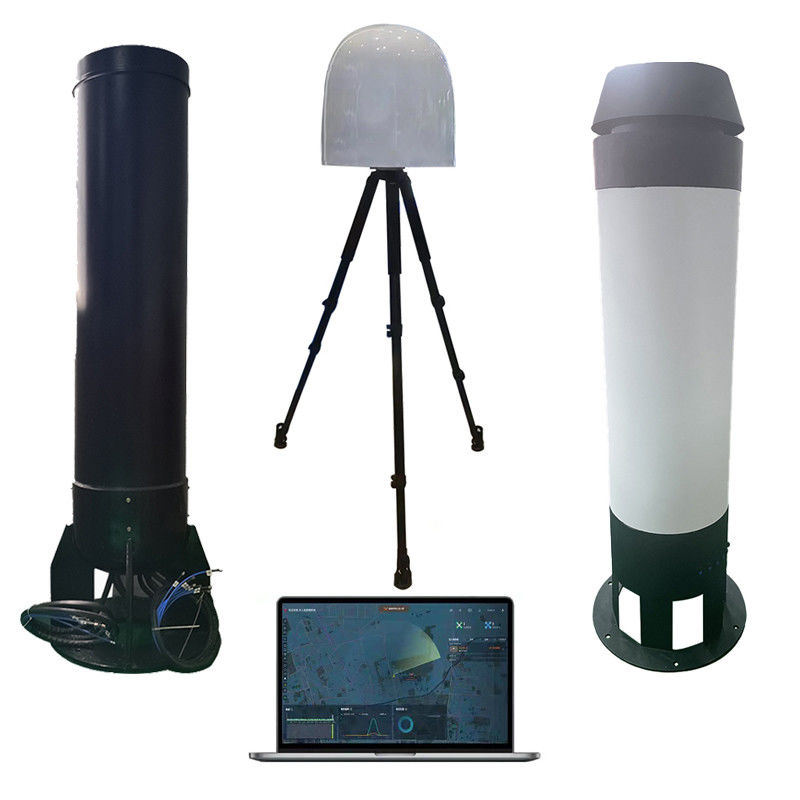

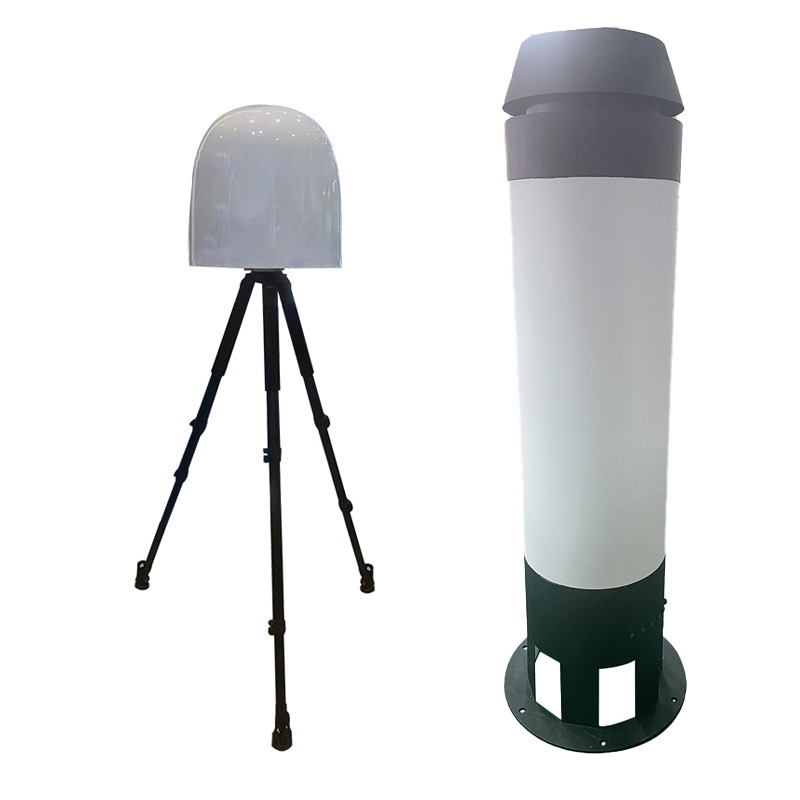

UAV Drone Detection And Jamming Defense Integrated Equipment Vehicle Gps Blocker

Cannon cylinder high-power UAV detection and defense integrated UAV jamming equipment

Product Introduction

Fixed cannon barrel integrated countermeasures equipment, using antenna host integrated design, adopting high-power directional antenna, realizing long-distance interception, repulsion and forced landing of black-flying drones. Applying UHF sweeping technology to transmit a variety of broadband signals, it effectively suppresses the mainstream UAV remote control, mapping and positioning bands in the current market, cuts off the connection between the flyer and the UAV, forces the UAV to be out of control, and leads to the effect of its return, forced landing and so on. It is suitable for public security, electric power system, anti-terrorism field, military strongholds, airports, prisons and guards, activity sites, breeding farms and other low-altitude security strongholds.

Product Paramenters

output side	quantities	operating frequency	Average output power	channel output power
900M	4	840-930MHz	50dBm	20dBm/30KHz(min)
1.2G	4	1160-1280MHz	50dBm	20dBm/30KHz(min)
1.5G	4	1550-1630MHz	50dBm	20dBm/30KHz(min)
2.4G	4	2380-2500MHz	50dBm	20dBm/30KHz(min)
5.2G	8	5150-5350MHz	50dBm	20dBm/30KHz(min)
5.8G		5720-5880MHz	50dBm	20dBm/30KHz(min)
Power:AC220V Working distance:1-5Km Weight: 80Kg
Power consumption: 7000W Dimensions on the unit: 400X1800mm Bottom disc; 550mm
