Detail Information
Control Type:	Remote Control	Image Transmission Distance:	9KM
Motor:	Brushless Motor	Flight Speed:	120km/h
Loaded Flight Time:	20 Minutes (3kg Load))	TV Or Radio Receiver:	ELRS 915
Antennae:	HGLRC 5.8G Hammer Antenna
Highlight:	13inch long range fpv drone , Heavy Payload long range fpv drone , 13inch freestyle drone kit

Product Description

Product Background

Military application demands drive: In modern warfare, FPV drones have been widely used due to their unique advantages. The 13-inch FPV drone, with features such as a large payload capacity, holds significant value in the military field. For instance, during the conflict between Ukraine and Russia, both sides extensively utilized FPV drones for reconnaissance, strike, and other tasks. The 13-inch FPV drone can carry up to 8 kilograms of payload and has a flight distance of up to 5 kilometers. It can also carry special warheads such as combustion mixtures, which are used to burn enemy positions, etc. At the same time, the US Special Operations Command proposed the large-scale deployment of FPV drones to cope with underground space operations. The 13-inch FPV drone can fly in underground narrow spaces thanks to its size and performance, and can perform reconnaissance, self-destructive attacks, and other tasks.
Technical development provides support: The continuous progress of drone-related technologies has laid the foundation for the development of the 13-inch FPV drone. The optimization of flight control algorithms, the improvement of image transmission technology, and the enhancement of battery endurance have continuously improved its performance. For example, the 13-inch crossing drone developed by Feixiong Technology uses a T300 carbon fiber frame, combining lightweight and high strength. It is equipped with a 440KV high-efficiency motor and an 80A power supply system, capable of reaching a top speed of 130 km/h. It is also equipped with a 5.8GHz video transmission system, with a transmission distance of over 10 kilometers at 3W power. Combined with low-light cameras and Super WDR technology, it can achieve clear and stable shooting in both day and night.

Expansion of civilian market demand: As the demand for high-quality aerial photography experiences increases, and the application of FPV drones in fields such as film production, agriculture, and energy continues to expand, the 13-inch FPV drone, due to its relatively larger size, may have advantages in terms of payload and endurance, and can carry more professional photography equipment to capture high-quality aerial images. It can also play a role in some high-performance aerial photography scenarios and large-scale venue racing competitions, meeting some civilian market demands.
Market competition drives innovation: The global FPV drone market is highly competitive, and various manufacturers are launching competitive products. To secure market share, companies continuously innovate and optimize their products, developing FPV drones of different sizes and performance. The 13-inch FPV drone, as one of the types, has attracted the attention of enterprises. The competition among enterprises has promoted the technological progress and market penetration of this type of product.

Product Paramenters

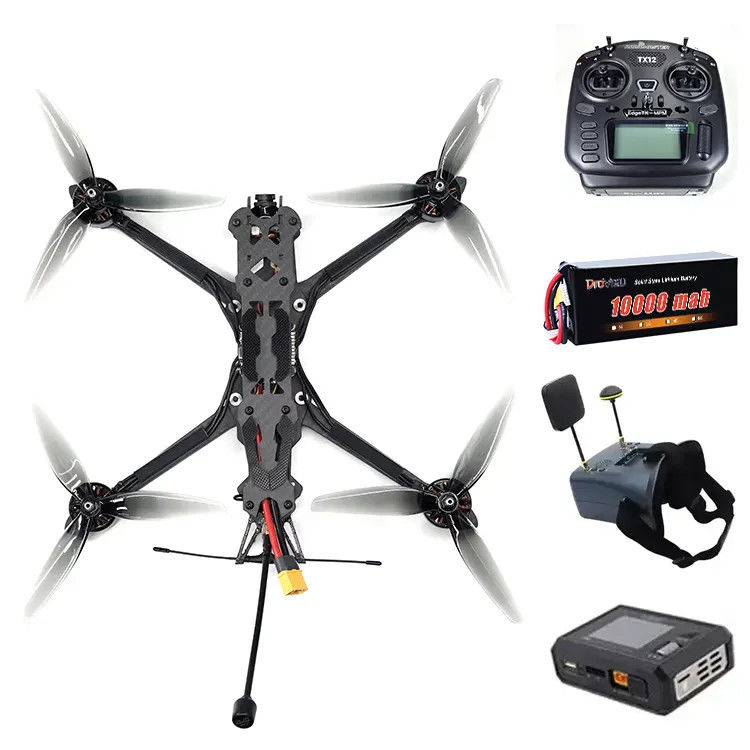

form	FPV Kit 13-inch Heavy Payload Long Flight with Brushless Motor and Night Vision Camera Race Drone
FPV	15inches
Unfolded size	600mm×600mmx116mm
wheelbases	703mm
altitude (aviation)	7KM (open field)
flight speed	120km/h
carrying capacity	8kg
Loaded flight time	20 minutes (3kg load))
surveillance camera	CADDX ratel pro
antennae	HGLRC 5.8G hammer antenna
TV or radio receiver	ELRS 915
flight control	SPECTER F722
MCU	STM32F722
gyros	MPU6000
ESC	SPECTER 90A *4
ESC Continuous Current	90A
peak current	100A(10s)
this matter	BL32
image transmission	ZEUS 5.8G2.5WVTX(64ch) ZEUS 1.2G 4.5W VTX
Mapping distance	8km
paddle	HQProp 15X7X3 15-inch 3-leaf
rackmount	XN15" Rack
Rack Type	positive X
electrical machinery	4215 400KV(8S)
Battery Strap	2mmx30mm440mm
Drone weight	2144g(Without paddle)
Package Size	37521555mm+55228068mm
Package Weight	789g+1834g
Recommended Batteries	LiPo 8S:22000mAh / 21700 8S 20000mah

Details Images

Tag:

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Model Number:	FPV-13-120
