Long Range FPV Drone 900 Mhz Directional Antenna 720MHz-1020MHz Frequency

Long Range FPV Drone 900 Mhz Directional Antenna 720MHz-1020MHz Frequency

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Contact Now

Detail Information
Maximum Input Power(W):	50W	Dimensions:	1310*370mm
Antenna Weight(kg):	1.309KG	Directional Antenna Frequency Range:	720-1020MHz
Gain(dBi):	14±0.5dBi
Highlight:	FPV 900 mhz directional antenna , 720MHz 900 mhz directional antenna , Directional long range fpv antenna

Product Description

720-1020MHz frequency range 1310*370mm directional antenna

Product Description

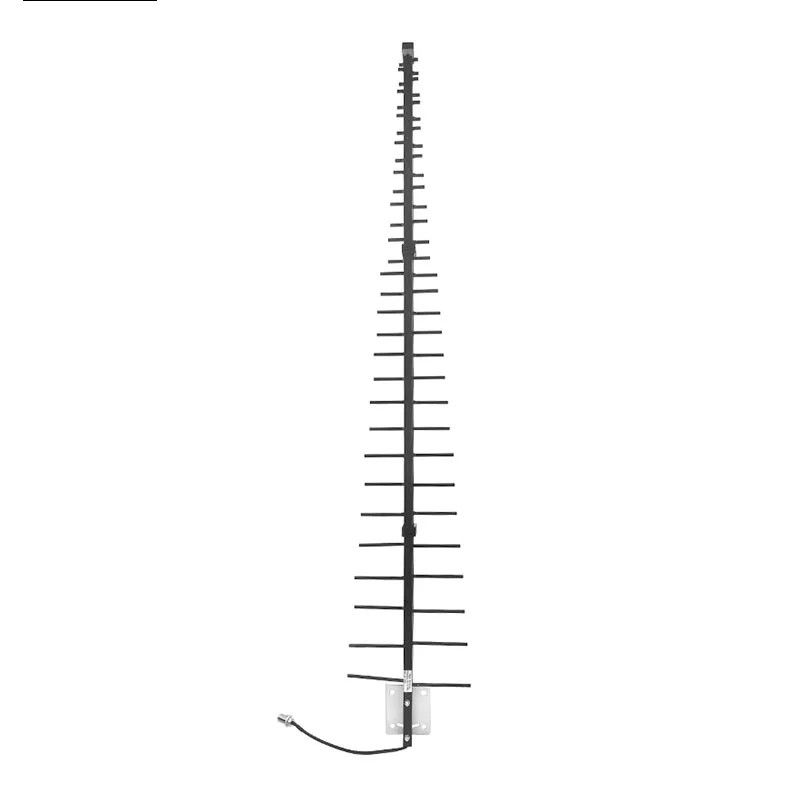

This 720-1020MHz 14dBi Directional Antenna for signal field, designed especially in the shape of a Christmas tree, is wide use in signal communication field. And the product has a high gain of 14 dBi Vswr ≤2. When it's working, it can support 50W power output. The connector takes N-K solution compared with traditional antennas; this Yagi directional high is 131 cm, almost Child height. Horizontal beam width 55±10º, vertical beam width 30±10º. It is a super-signal transfer directional antenna.The 720-1020MHz 14dBi Directional Antenna is a directional antenna with 14 dB gain that operates in the 720 MHz to 1020 MHz frequency range.

Product Paramenters

Electrical Specifications
directional antenna Frequency Range	720-1020MHz
Gain(dBi)	14±0.5dBi
VSWR	≤2
Polarization	Vertical
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 55±5º
Validity(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Mechanical Specifications
Dimensions-mm(Height/Width/Depth)	1310*370mm
Antenna weight(kg)	1.309KG
Rated Wind Velocity(m/s)	31m/s
Operational Humidity(％)	10- 95
Radome Color	Black
Radome material	Aluminum
Operating temperature(ºC)	-40～55 º
