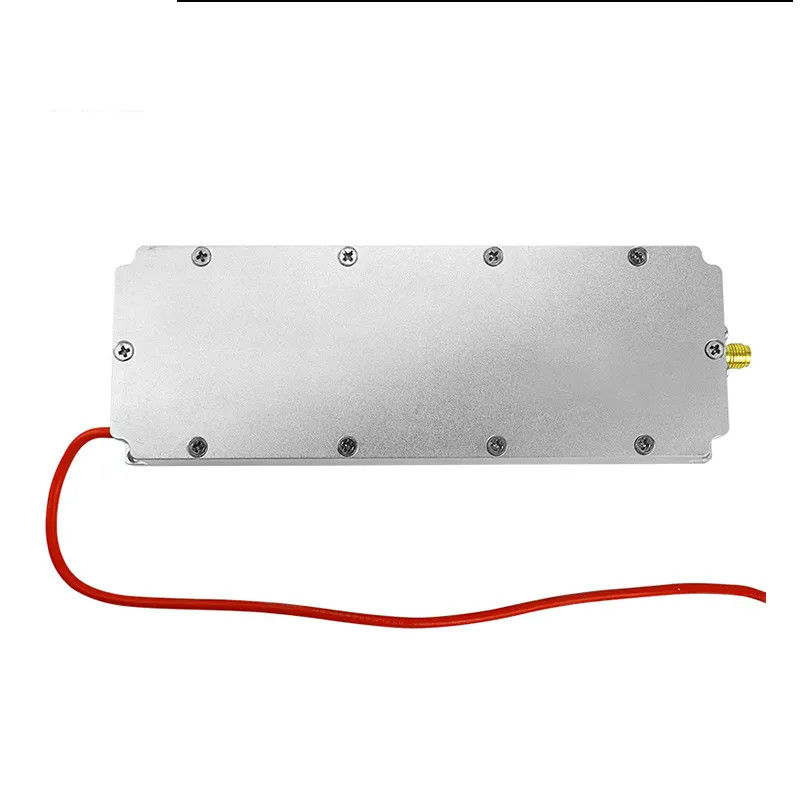

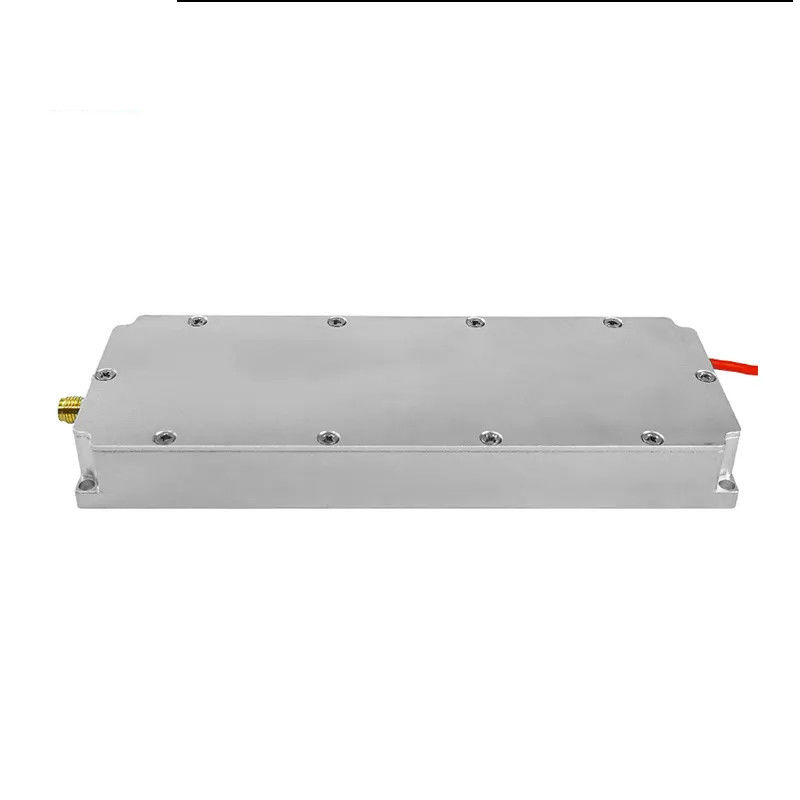

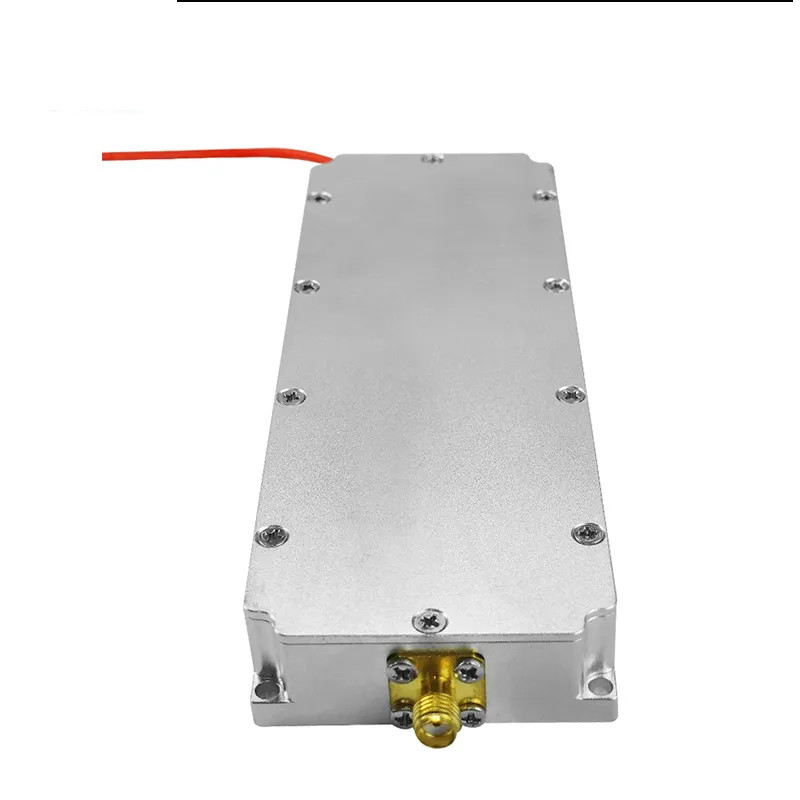

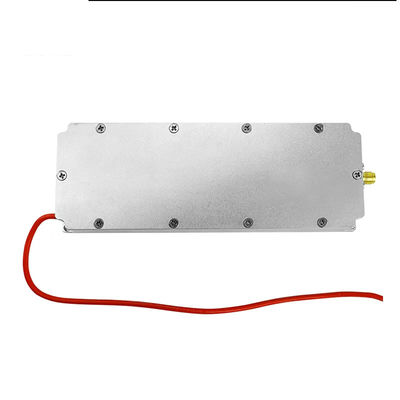

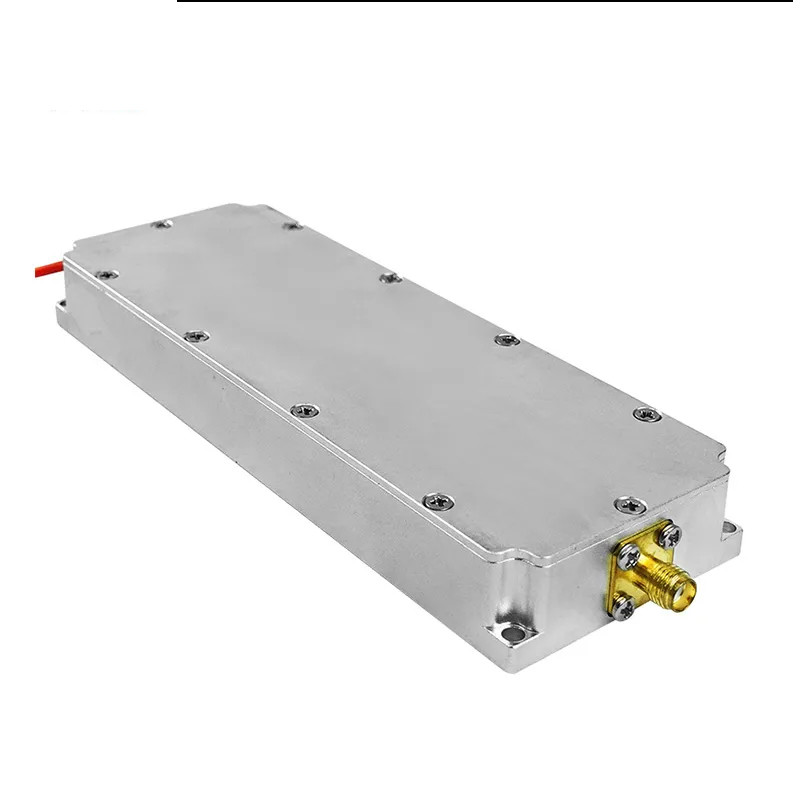

Anti FPV Power Amplifier Wifi Signal Jammer Module 4GHz 50W

Product Details

Place of Origin: Guangdong, China

Brand Name: flysafe

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: LC, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                Anti FPV Signal Jammer Module, 4GHz Signal Jammer Module, Amplifier wifi jammer module


Frequency:	Customized	Out Shell Size:	1404912mm
Weight:	262g

Frequency:	Customized
Out Shell Size:	1404912mm
Weight:	262g

Anti FPV Power Amplifier Wifi Signal Jammer Module 4GHz 50W

Product Description

The 30-40W RF Signal Jammer Module with Circulator has a power output of 30 to 40W. It generates a powerful RF jamming signal that effectively blocks RF communications within a specific range. The integrated high-quality circulator ensures unidirectional transmission of the signal and effectively directs the transmitted jamming signal in the direction of the target. The 30-40W RF signal jammer module with circulator ensures powerful coverage and strength of the jamming signal. Advanced power amplification technology and stable power management system ensure the stability and reliability of power output. It supports jamming in a wide range of common RF bands, including 2.4GHz, 5.8GHz and other residential wireless communication bands, as well as some specific professional bands.

Product Paramenters

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	24-28	V
3	Current	3	A
4	Output	30-40	W
5	Gain	41	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red wire
11	Enable Control	High ON Low Off
12	Out shell Size	1404912	mm
14	Weight	262	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK
