High Power UAV Signal Power RF Amplifier Module 5.8GHz 50W Custom

High Power UAV Signal Power RF Amplifier Module 5.8GHz 50W Custom

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	5-8work days
Payment Terms:	LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Contact Now

Detail Information
Frequency:	400-5800MHZ(Customized)	Size:	1515020mm
Weight:	254g
Highlight:	UAV rf amplifier module , 5.8GHz 50W rf amplifier module , UAV rf power module

Product Description

5.8GHz 50W High Power Signal Power Amplifier Module

Product Description

This 30W power amplifier module has a built-in temperature sensor to monitor the module temperature in real time. It has a powerful output power

of 30W. This digitally sourced 30W power amplifier module is primarily used in UAV RF jammers to jam the signal transmission of a drone, thus

forcing the drone to return to land. The module is characterized by simple connection and intuitive control, which is suitable for users of all levels.

Product Paramenters

No.	Item	Data	Unit	Notes
1	Frequency	400-5800	MHZ	Customized
2	Work Temperature	-20~+70	℃
3	Max Output Power	30	W
4	Work Voltage	DC28	V
5	Max Gain	45	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	1515020	mm
15	Weight	0.254	Kg

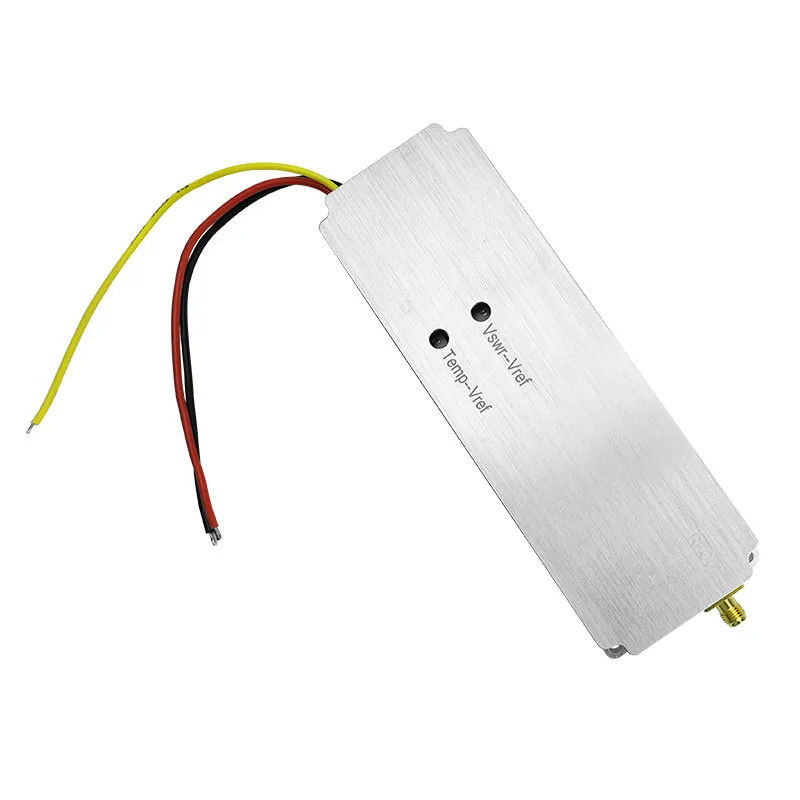

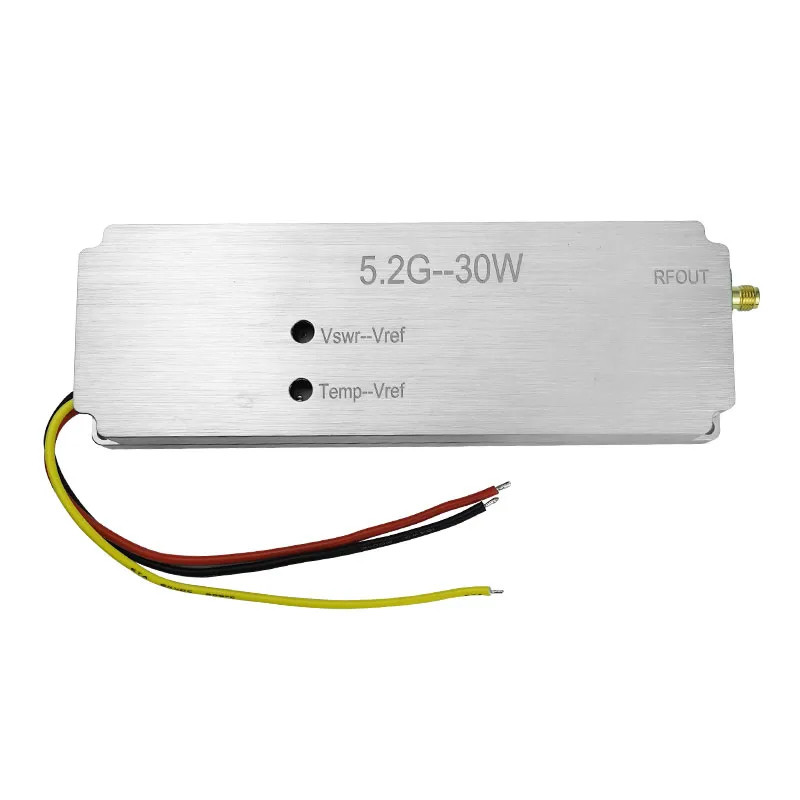

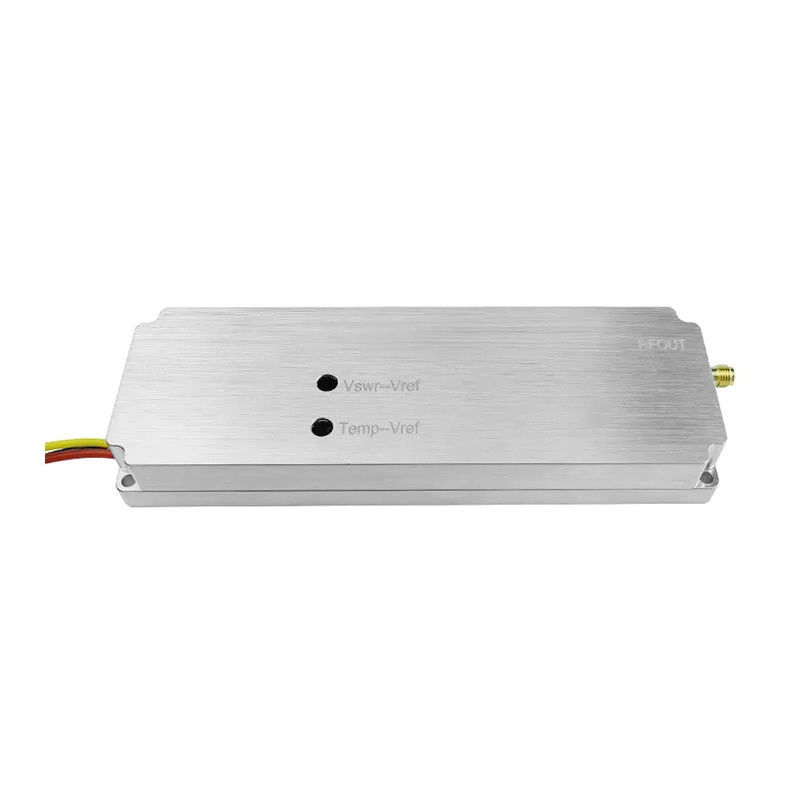

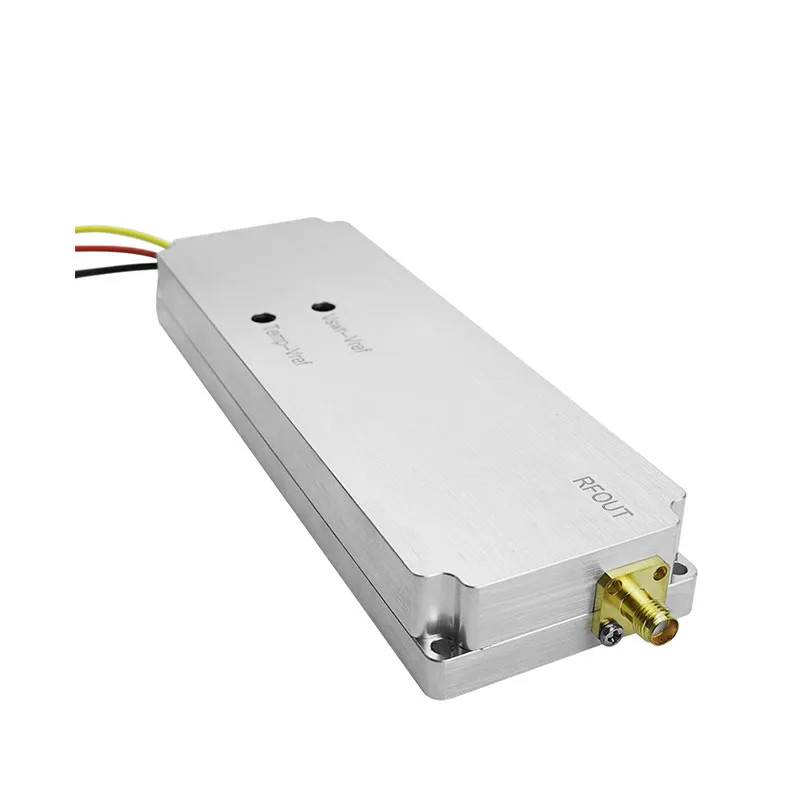

Details Images

Tag:

power amp module

rf power amplifier module

vhf power amplifier module

You Might Be Into These

High Power UAV Signal Power RF Amplifier Module 5.8GHz 50W Custom

UAV rf amplifier module

5.8GHz 50W rf amplifier module

UAV rf power module

Product Description

This 30W power amplifier module has a built-in temperature sensor to monitor the module temperature in real time. It has a powerful output power

of 30W. This digitally sourced 30W power amplifier module is primarily used in UAV RF jammers to jam the signal transmission of a drone, thus

forcing the drone to return to land. The module is characterized by simple connection and intuitive control, which is suitable for users of all levels.

Product Paramenters

No.

Item

Data

Unit

Notes

1

Frequency

400-5800

MHZ

Customized

2

Work Temperature

-20~+70

℃

3

Max Output Power

30

W

4

Work Voltage

DC28

V

5

Max Gain

45

dB

6

Flatness

&plusmn;1

dB

7

Max Current

4

A

8

Output VSWR

&le;1.5

9

Output Connector

SMA/F 50&Omega;

Customized

10

Power Amplifier Efficiency

45

when Max Output

11

Switch Control

high low level current

V

0V off /0.6 on

12

Standing Wave Protection

OK

13

Temperature Protection

75&deg;

℃

14

Size

151*50*20

mm

15

Weight

0.254

Kg

Details Images

power amp module

rf power amplifier module

vhf power amplifier module

Shenzhen Baohong intelligent manufacturing Co., LTD
