Highlight:
                                                                                                                                                                                                                                                UAV Drone Detection And Jamming, High Power Drone Detection And Jamming, 3KM uav defense system


Application:	Executive Offices, Gas Stations, Hotels, Indoor & Outdoor, Prisons, Public Places	Feature:	Durable, Remote Control
Detecting Frequency Bands:	900M,1.2G,1.4G,2.4G,5.2G,5.8G	Working Distance:	1-10km (subject To Environmental Factors)
Sizes:	513x462x233MM	Weight:	≤45kg

Application:	Executive Offices, Gas Stations, Hotels, Indoor & Outdoor, Prisons, Public Places
Feature:	Durable, Remote Control
Detecting Frequency Bands:	900M,1.2G,1.4G,2.4G,5.2G,5.8G
Working Distance:	1-10km (subject To Environmental Factors)
Sizes:	513x462x233MM
Weight:	≤45kg

3KM Drone Detection And Jamming Positioning UAV Defense System High Power

360°3KM UAV positioning system High-power UAV detection equipment

Product features

1, Adopting UHF broadband seamless jamming technology, specially for all kinds of frequency hopping technology.

2, Single-channel control switch, selective countermeasure according to demand, with battery power display.

3, The larger the single power (channel power), the larger the jamming distance.

4, customised frequency band, only interfere with drone control and video transmission frequency, will not interfere with other frequencies.

5, imported devices, slow start circuit design can avoid the mechanical switch generated by the ignition phenomenon, high integration and stable work.

6, Separate battery box 80A, improve endurance, integrated design, simple and easy to understand.

7, used to connect the omni-directional antenna 8 SMA / N-type interface (900M / 1.5G / 2.4G / 5.2G / 5.8G)

Product Paramenters

frequency, power	CH1:860-930 MHz 100W CH2: 1160-1280 MHz 100W CH3: 1560-1630 MHz 100W CH4: 2400-2500 MHz 120W CH5: 5150-5350 MHz 50W CH6: 5720-5860 MHz 50W
Total output power	600W
omnidirectional antenna	4+6 pcs, length 600mm
Coverage	1-3km
electricity supply	AC 220V/DC 28V
power wastage	1400W
housings	Paragon Outer Box
protection class	IP65
radiator	Air-cooled, cooling fan
sizes	513x462x233mm
weights	45kg
batteries	35Kg

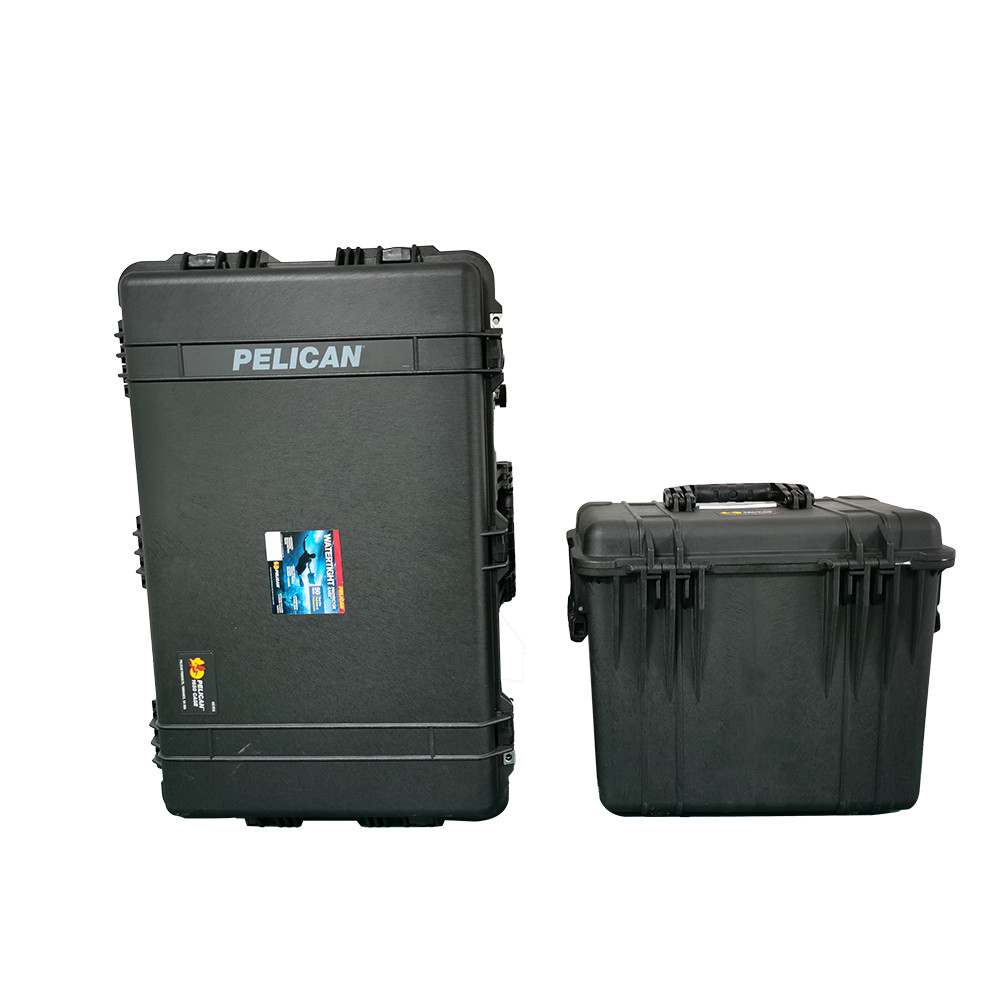

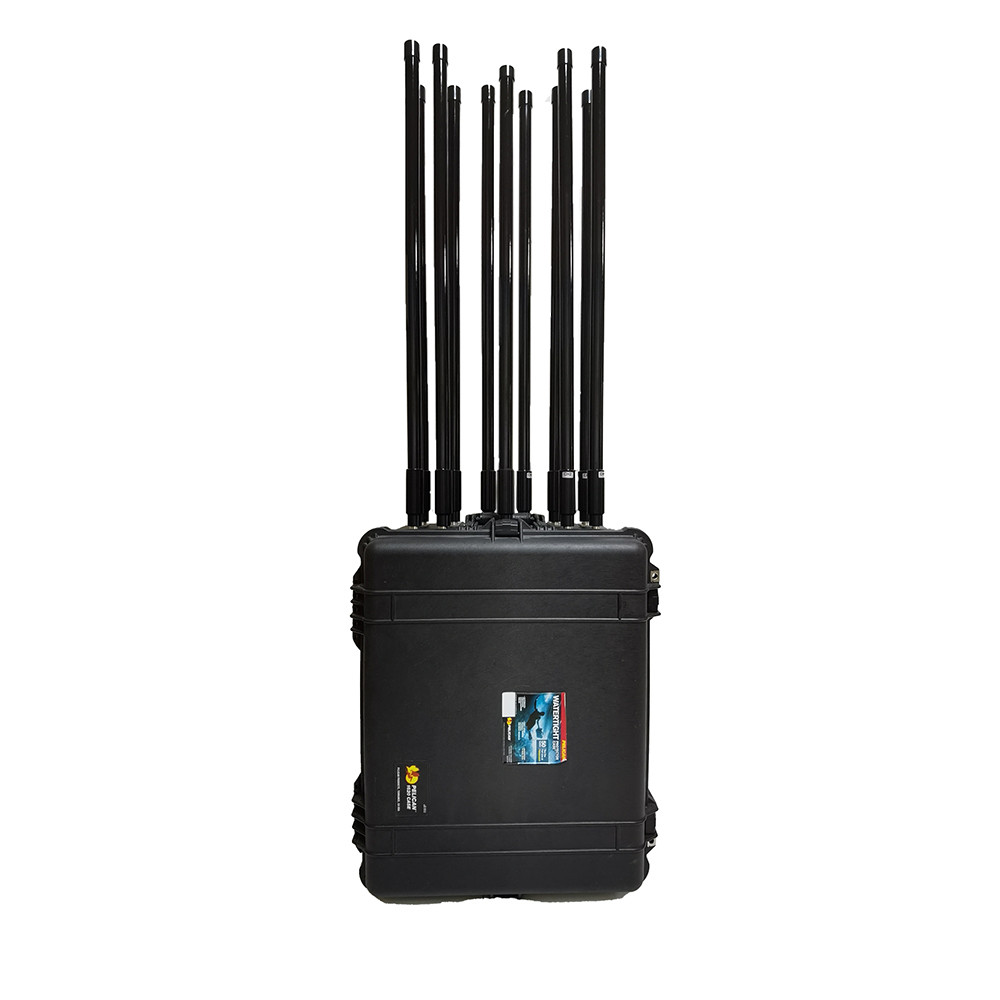

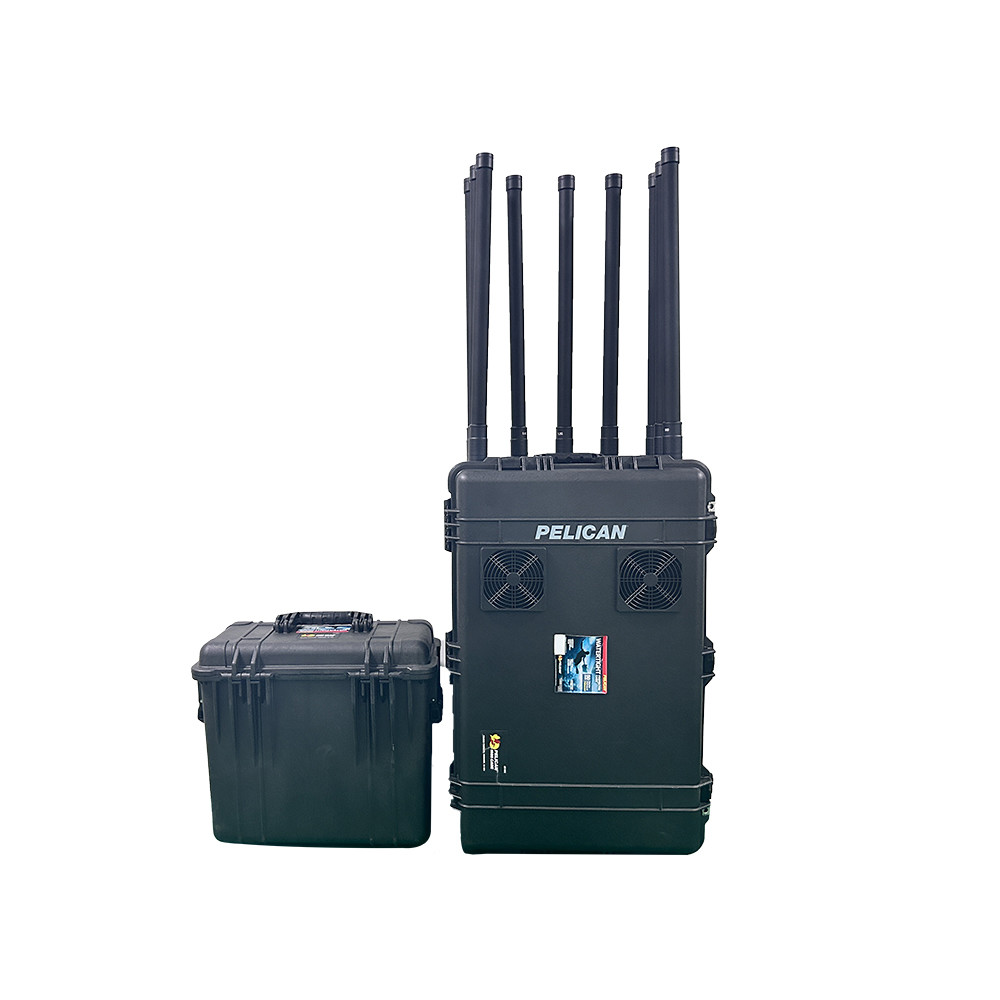

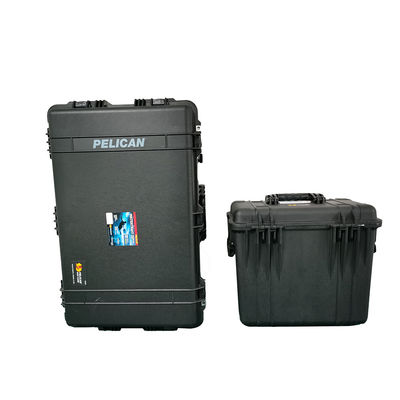

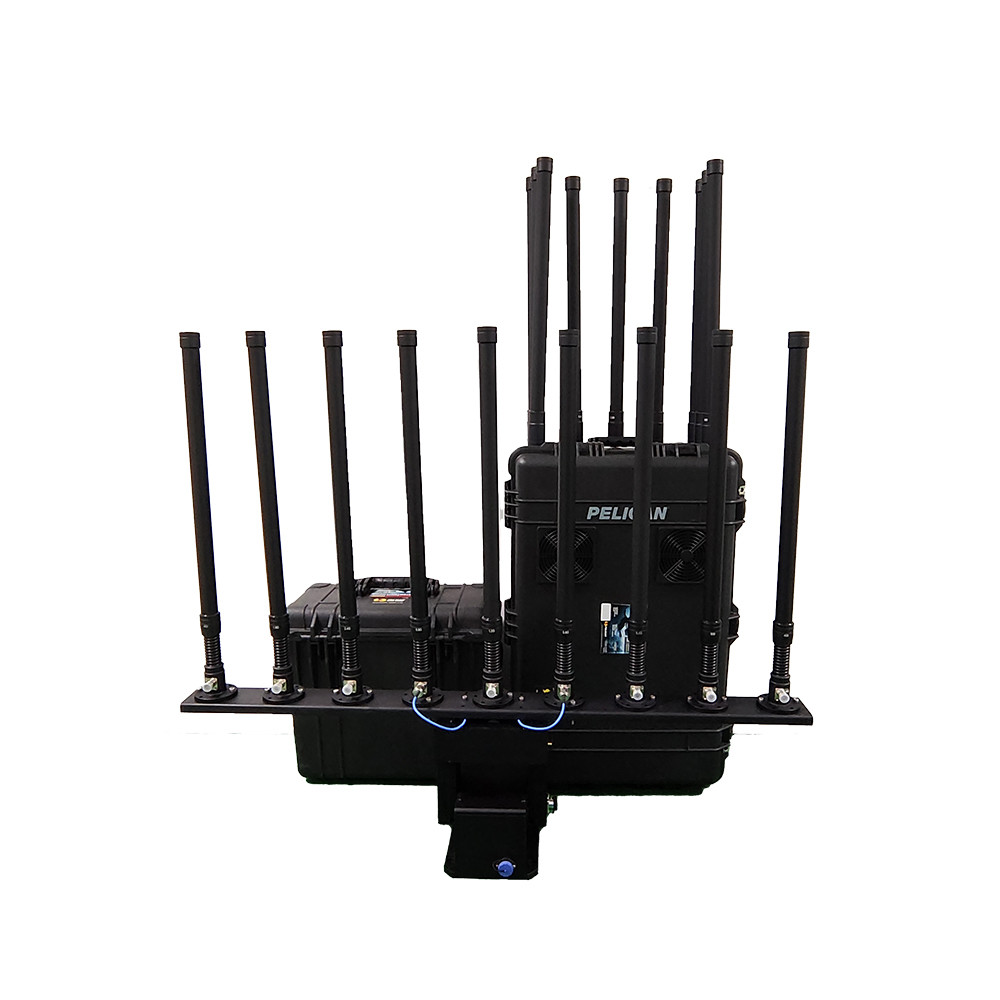

Details Images
