Highlight:
                                                                                                                                                                                                                                                                                Four Band uas jammer, Drone uas jammer, uav countermeasures Defense Gun


Application:	Public Places	Feature:	Remote Control
Output Side:	GPS/2.4G/5.8G/800-900M	Working Distance:	500-1500M
Electricity Consumption:	192W	Weights:	5.0Kg
Sizes:	72258CM

Application:	Public Places
Feature:	Remote Control
Output Side:	GPS/2.4G/5.8G/800-900M
Working Distance:	500-1500M
Electricity Consumption:	192W
Weights:	5.0Kg
Sizes:	72258CM

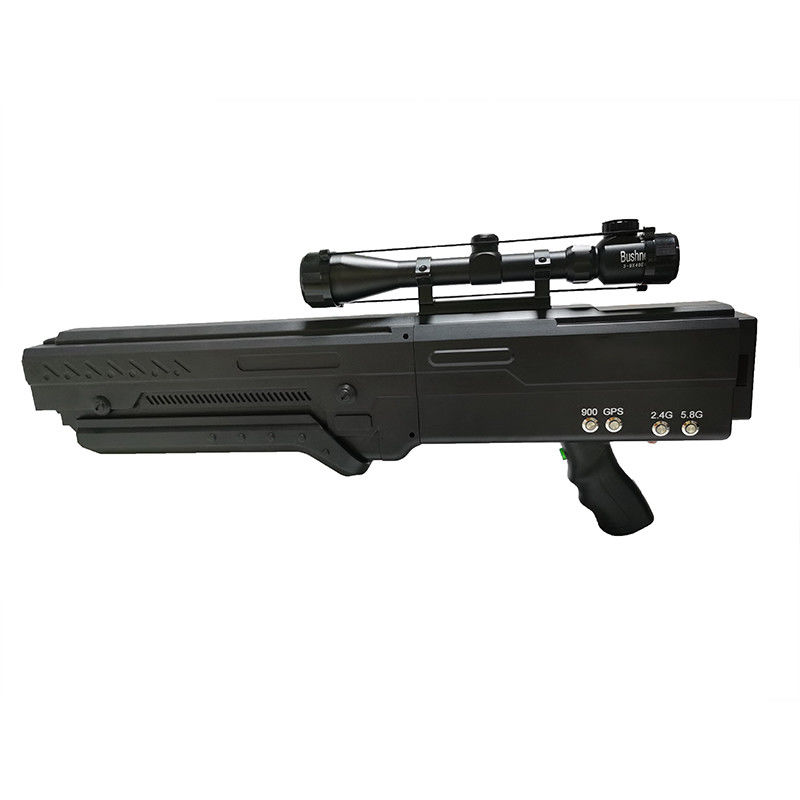

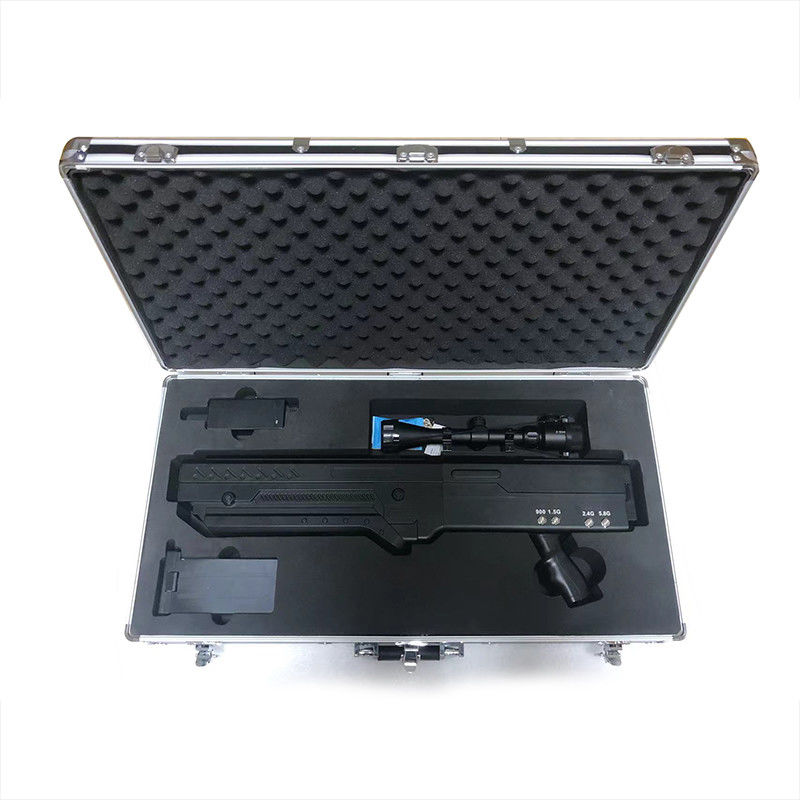

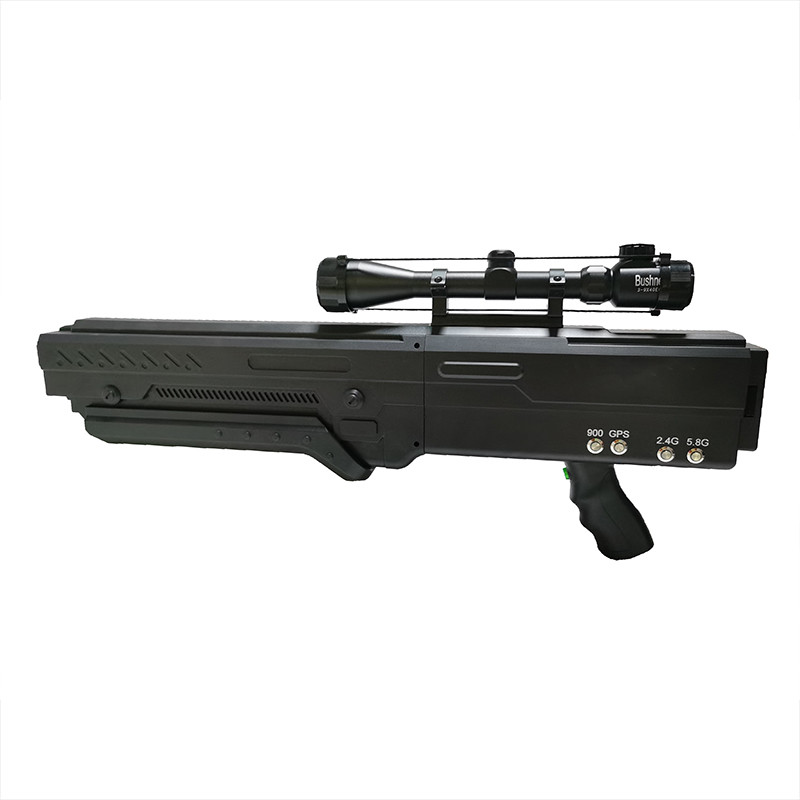

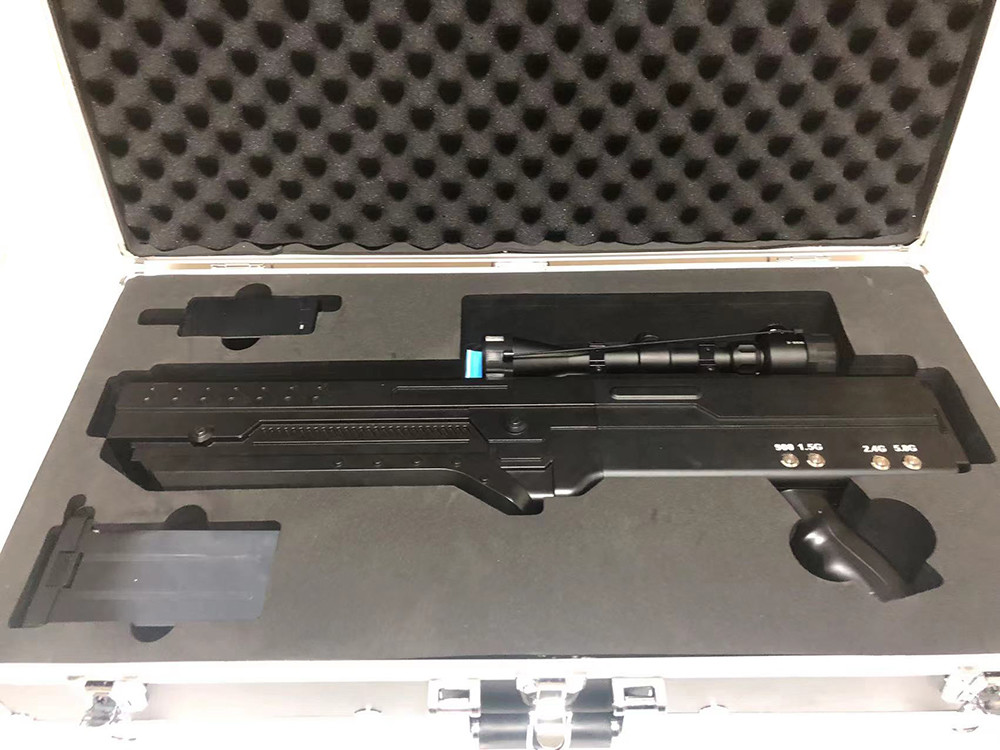

Four Band UAS Jammer UAV Countermeasures Drone Detection Defense Gun 2KM

Four-band 2KM drone detection defense gun

Product features

1; Adopt UHF broadband seamless interference technology

2; Single-channel adjustable switching technology to control the power size output, with battery power display.

3; The higher the effective power (channel power), the greater the interference distance.

4; Effective segmentation, only interferes with the drone control and video transmission frequency, will not interfere with other frequencies.

5; Imported devices. Slow start circuit design can avoid the mechanical switch generated by the firing phenomenon, high integration and stable work.

6; 4 SMA/N type interfaces for connecting directional antenna (900M/2.4G/GPS/5.8G)

7; a power charging interface (DC24V IN), the use of built-in battery, plug-in battery, can be replaced at any time, the endurance of about 1 hour, charging 4 hours

Product Paramenters

output side	operating frequency	Average output power	channel output power
GPS	1550-1620MHz	45dBm	20dBm/30KHz(min)
2.4G	2380-2500MHz	45dBm	20dBm/30KHz(min)
5.8G	5720-5850MHz	43dBm	20dBm/30KHz(min)
800-900M	840-930MHz	44dBm	20dBm/30KHz(min)
power supply:AC220V-DC24V Working distance:500-1500M
Electricity consumption:192W weights: 5.0Kg sizes:7×22×58CM

Details Images
