Product Details
Place of Origin: Guangdong, China
Brand Name: flysafe
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 7-15 work days
Payment Terms: LC, T/T
Frequency: |
5800MHz |
Test Voltage: |
28V |
Current: |
4.2A |
Output: |
50W |
Gain: |
47dB |
Output Stability: |
1dB |
Connector: |
N / Male |
Output Connector VSWR: |
≤1.30 (No Power And VNA Test) |
Power Supply Wire: |
Red+Black+Enable Wire |
Enable Control: |
High ON Low Off |
Out Shell Size: |
150*53*20mm |
Mount Hole: |
48*126mm |
Weight: |
316g |
Work Temperature: |
-40~+65 ℃ |
Out Shell Material: |
Aluminum |
Vibration Need: |
Vibration Need |
Frequency: |
5800MHz |
Test Voltage: |
28V |
Current: |
4.2A |
Output: |
50W |
Gain: |
47dB |
Output Stability: |
1dB |
Connector: |
N / Male |
Output Connector VSWR: |
≤1.30 (No Power And VNA Test) |
Power Supply Wire: |
Red+Black+Enable Wire |
Enable Control: |
High ON Low Off |
Out Shell Size: |
150*53*20mm |
Mount Hole: |
48*126mm |
Weight: |
316g |
Work Temperature: |
-40~+65 ℃ |
Out Shell Material: |
Aluminum |
Vibration Need: |
Vibration Need |

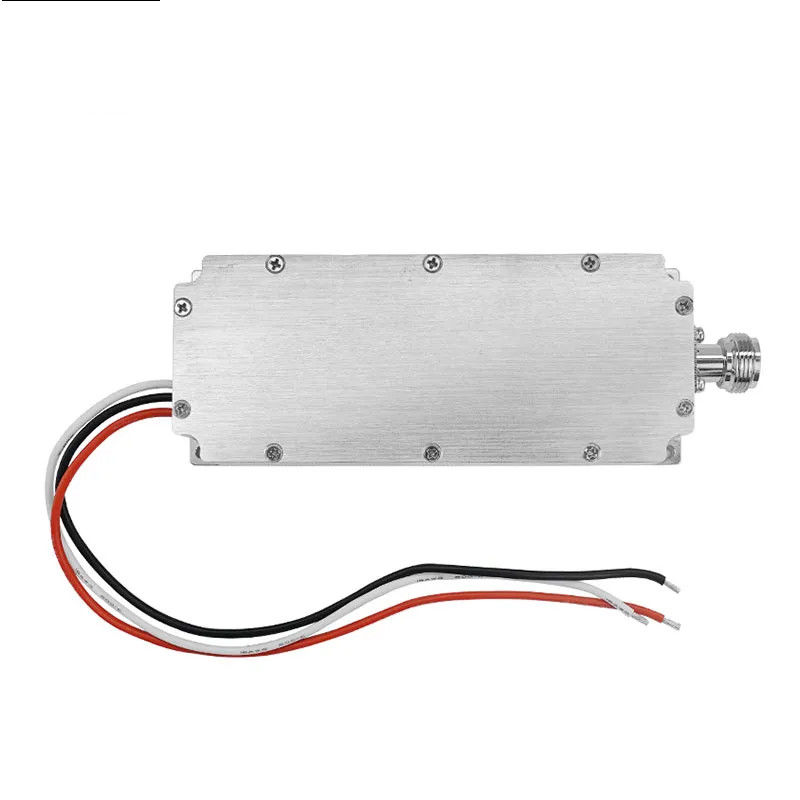

The 5.8GHz 50W High Power Signal Power Amplifier Module we offer is a high performance RF device designed to meet the needs of applications that require powerful signal amplification. It can proficiently amplify the incoming 5.8GHz signal with an output power of up to 50W, thus providing stable and reliable signals for your wireless communication system. The module can be used to enhance the signal transmission power of wireless communication base stations, wireless bridges, wireless access points and other such devices. In this way, the communication coverage can be extended and the communication quality can be improved.5.8GHz 50W High Power Signal Power Amplifier Module has an output power of up to 50W.Such a powerful power enables it to significantly extend the signal transmission distance and expand the signal coverage area, so as to satisfy the requirements of long-distance communication and comprehensive signal coverage. The module utilizes advanced circuit design techniques and state-of-the-art electronic components to deliver extremely high power conversion efficiency. This means it provides powerful signal amplification with relatively low energy consumption, making it an efficient choice for a variety of applications.
