20W 868 Mhz Jammer Power Amplifier Module With Circle Protection

Product Details

Place of Origin: Guangdong, China

Brand Name: flysafe

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: LC, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                20W Power Amplifier Module, 868 Mhz Power Amplifier Module, 20W 868 mhz power amplifier


Work Temperature:	-20~+70 ℃	Max Output Power:	20 W
Work Voltage:	24-28 V	Max Gain:	43 DB
Flatness:	±3 DB	Max Current:	2.5 A
Output VSWR:	≤1.5	Output Connector:	SMA/F 50Ω(Customized)
Power Amplifier Efficiency:	43(when Max Output)	Switch Control:	High Low Level Current--V--0V Off /0.6 On
Size:	1193916 Mm	Weight:	0.151 Kg

Work Temperature:	-20~+70 ℃
Max Output Power:	20 W
Work Voltage:	24-28 V
Max Gain:	43 DB
Flatness:	±3 DB
Max Current:	2.5 A
Output VSWR:	≤1.5
Output Connector:	SMA/F 50Ω(Customized)
Power Amplifier Efficiency:	43(when Max Output)
Switch Control:	High Low Level Current--V--0V Off /0.6 On
Size:	1193916 Mm
Weight:	0.151 Kg

20W 868 Mhz Jammer Power Amplifier Module With Circle Protection

20W Jammer Module with Circle Protection

Product Description

This 20W jamming module with ring protection is a professional electronic jamming device that generates powerful jamming signals, effectively blocking or interfering with wireless communications, signal transmission and more. The ring structure also has special signal shielding and reflection features that reduce the interference of external signals to the jamming module. The module is designed with a circulator and supports frequency band customization. With a stable 20W output power, it can generate effective jamming signals within a certain range to meet the jamming requirements in various scenarios. By increasing the heat dissipation area and forming a good air circulation channel, the heat generated during the operation of the equipment can be emitted in a timely manner. The jamming module can be used to prevent information from being stolen in places where confidentiality is required, such as governmental organizations, confidential meeting rooms of enterprises, and scientific research laboratories.

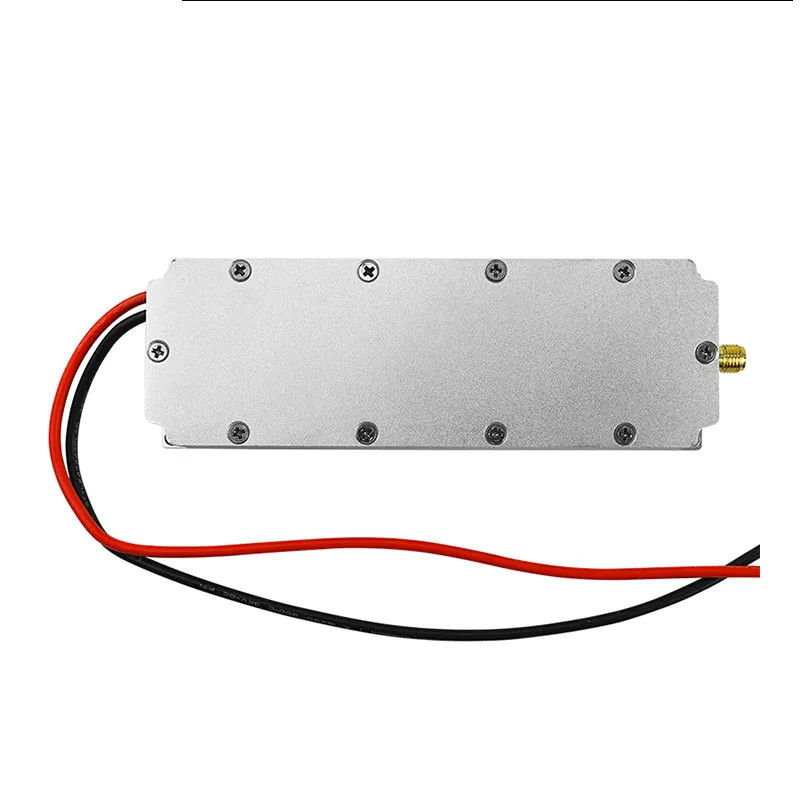

20W 868 Mhz Jammer Power Amplifier Module With Circle Protection 0

20W 868 Mhz Jammer Power Amplifier Module With Circle Protection 1

20W 868 Mhz Jammer Power Amplifier Module With Circle Protection 2

20W 868 Mhz Jammer Power Amplifier Module With Circle Protection 3
