GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM

Product Details

Place of Origin: Guangdong, China

Brand Name: flysafe

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: LC, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                GAN power amp module, OEM power amp module, GAN vhf power amplifier module


Frequency:	Customized	Test Voltage:	DC28 V
Current:	3 A	Output:	50 W
Gain:	47 DB	Output Stability:	1 DB
Connector:	SMA / Female	Output Connector VSWR:	≤1.30 (No Power And VNA Test)
Standard Input:	0-10DB	Power Supply Wire:	Red+Black+Enable Wire
Enable Control:	High ON Low Off	Out Shell Size:	1305520 Mm
Weight:	239 G	Work Temperature:	-20~+70 ℃
Out Shell Material:	Aluminum	Standing Wave Protection:	OK

Frequency:	Customized
Test Voltage:	DC28 V
Current:	3 A
Output:	50 W
Gain:	47 DB
Output Stability:	1 DB
Connector:	SMA / Female
Output Connector VSWR:	≤1.30 (No Power And VNA Test)
Standard Input:	0-10DB
Power Supply Wire:	Red+Black+Enable Wire
Enable Control:	High ON Low Off
Out Shell Size:	1305520 Mm
Weight:	239 G
Work Temperature:	-20~+70 ℃
Out Shell Material:	Aluminum
Standing Wave Protection:	OK

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM

Product Description

This GAN 50W Power Amplifier Module with Ring Protection is an advanced RF power amplifier device with a unique ring protection design. It is designed for RF applications requiring high power output and can play a key role in various communication systems, radar systems, electronic countermeasure systems, etc. It provides users with efficient and stable power amplification solutions. It can provide up to 50W output power to meet the demand of high power RF signals. The toroidal protection design provides the module with increased stability and reliability. It is resistant to external interference and shocks, reduces the probability of equipment failure, and ensures continuous stable operation even in complex environments.

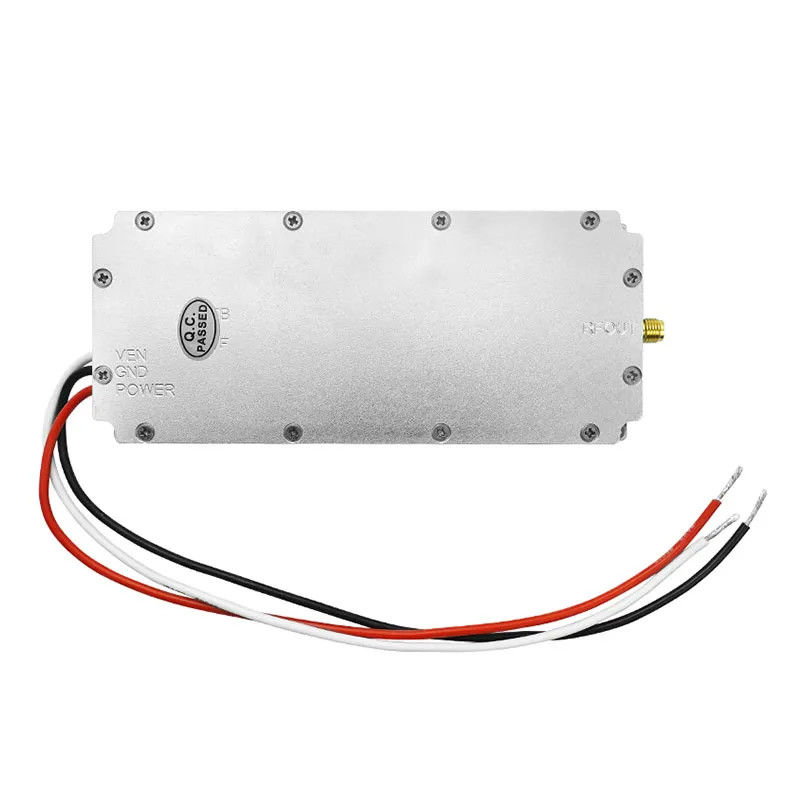

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM 0

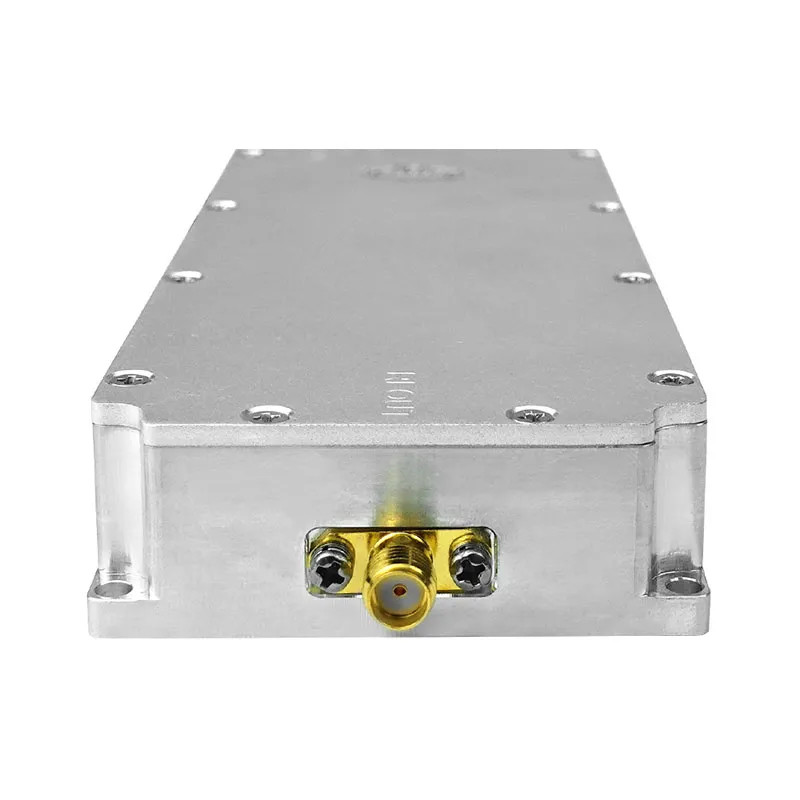

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM 1

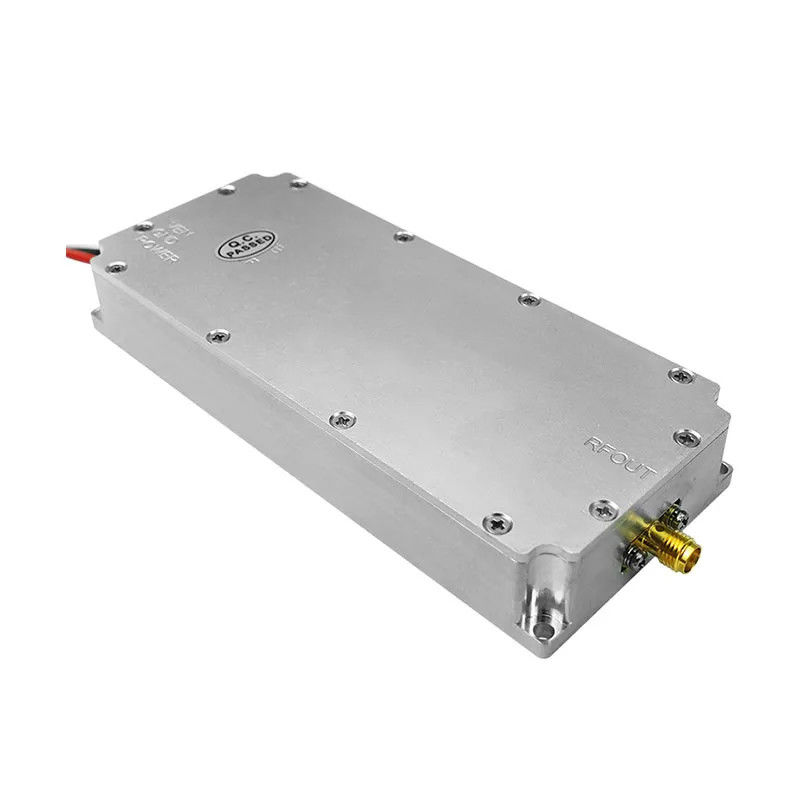

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM 2

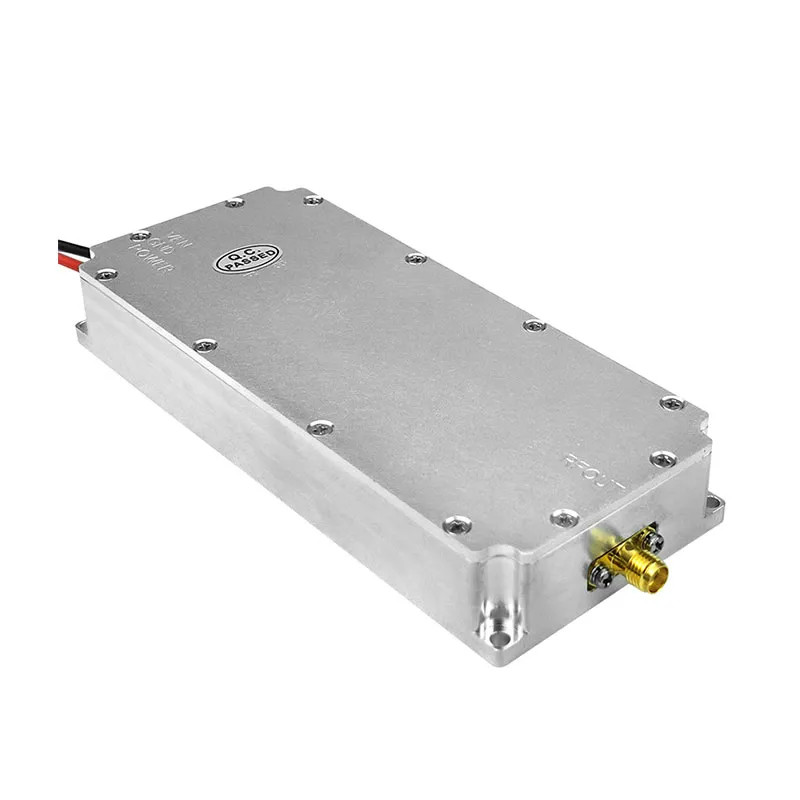

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM 3

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM 4

GAN 50W VHF Power Amp Amplifier Module With Circle Protection OEM 5
