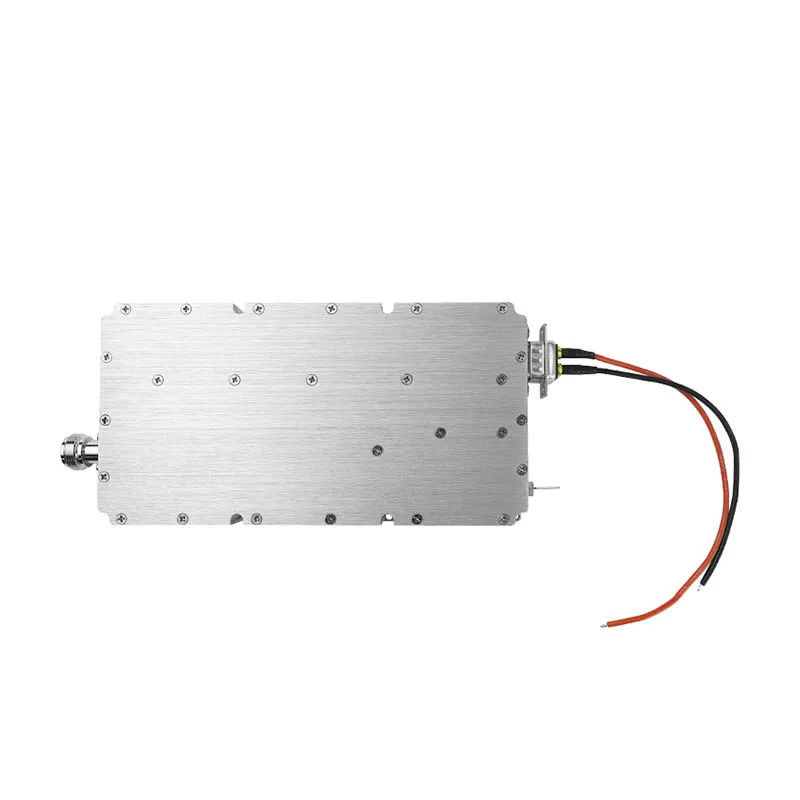

High Power UAV Signal Power RF Amplifier Module 5.8GHz 50W Custom
|
Detail Information |
|||
| Frequency: | 100-2700 MHZ | Work Temperature: | -20~+70 ℃ |
|---|---|---|---|
| Max Output Power: | 100 W | Input Power: | 5 DBm |
| Work Voltage: | 24-28 V | Max Gain: | 50 DB |
| Max Current: | 10 A | Impedance: | 50Ω |
| Output Connector: | N/F(Customized) | Power Amplifier Efficiency: | 45 When Max Output |
| Switch Control: | 24-28V Or Customized | Standing Wave Protection: | OK |
| Temperature Protection: | 75 ℃ | Size: | 194*91*24 Mm |
| Weight: | 0.765 Kg | ||
| Highlight: | anti drone Signal Jammer Module,100MHz Signal Jammer Module,100w anti drone module |
||
Product Description
| Frequency | 100-2700 MHZ |
| Work Temperature | -20~+70 ℃ |
| Max Output Power | 100 W |
| Input power | 5 dBm |
| Work Voltage | 24-28 V |
| Max Gain | 50 dB |
| Max Current | 10 A |
| Impedance | 50Ω |
| Output Connector | N/F(Customized) |
| Power Amplifier Efficiency | 45 when Max Output |
| Switch Control | 24-28V Or Customized |
| Standing Wave Protection | OK |
| Temperature Protection | 75 ℃ |
| Size | 194*91*24 mm |
| Weight | 0.765 Kg |
This 100-2700MHz 100W High Power Amplifier Module for RF Applications is a high power amplifier designed for RF applications, capable of delivering 100W output power over the 100 - 2700MHz frequency range. It utilizes advanced technology and high-quality components for excellent performance and reliability, and is suitable for a variety of RF systems such as wireless communications, broadcasting, and radar. It can cover a wide frequency range of 100-2700MHz to meet the needs of various RF applications. It also provides 100W of powerful output power to ensure signal strength and transmission distance. The module utilizes high-efficiency power amplification technology to reduce energy consumption and improve overall system efficiency.
![]()
![]()
![]()
![]()
![]()
![]()
