Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz
Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz
Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C
Contact Now

Detail Information
Frequency: 100-2700MHz Work Temperature: -20~+70 ℃
Max Output Power: 30 W Work Voltage: DC24 V
Max Gain: 45 DB Flatness: ±3 DB
Max Current: 3 A Output VSWR: ≤1.5
Output Connector: SMA/F 50Ω Customized Power Amplifier Efficiency: 45 When Max Output
Switch Control: 0V Off /0.6 On Standing Wave Protection: OK
Temperature Protection: 75 ℃ Size: 53*139*19 Mm
Weight: 0.263 Kg
Highlight:

compact network jammer module

,

2700mhz network jammer module

,

100mhz broadband rf power amplifier module

Product Description

100-2700mhz 30w Anti Drone Jammer Module

Product Parameters

Frequency 100-2700MHz
Work Temperature -20~+70  ℃
Max Output Power 30  W
Work Voltage DC24  V
Max Gain 45  dB
Flatness ±3  dB
Max Current 3  A
Output VSWR ≤1.5
Output Connector SMA/F 50Ω     Customized
Power Amplifier Efficiency 45     when Max Output
Switch Control 0V off /0.6 on
Standing Wave Protection OK
Temperature Protection 75  ℃
Size 53*139*19  mm
Weight 0.263  Kg

Product Description

Designed to counter the threat of drones, this 100-2700MHz 30W Anti-Drone Jammer Module effectively interferes with a drone's communication and navigation systems in the 100-2700MHz frequency range, causing it to lose control or return to its takeoff point.The 100-2700MHz 30W Anti-Drone Jammer Module is a wireless information security module. It interferes with the drone's signal transmission, preventing it from flying, filming or performing other tasks.100-2700MHz 30W Anti-Drone Jammer Module is a wireless information security module. The module has the advantages of high average output power, good in-band flatness and small upper and lower sideband offset.

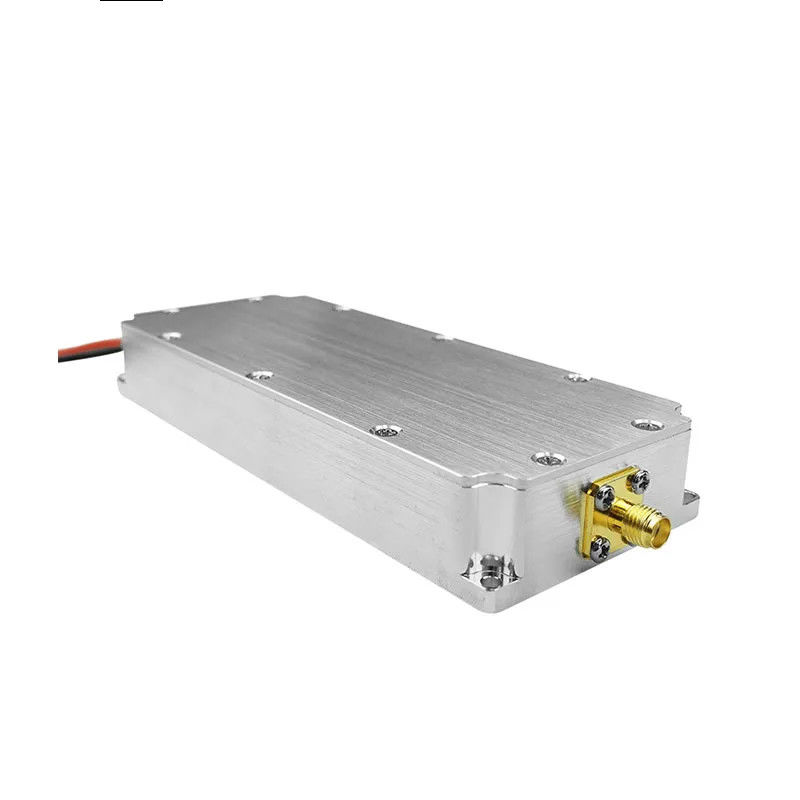

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 0

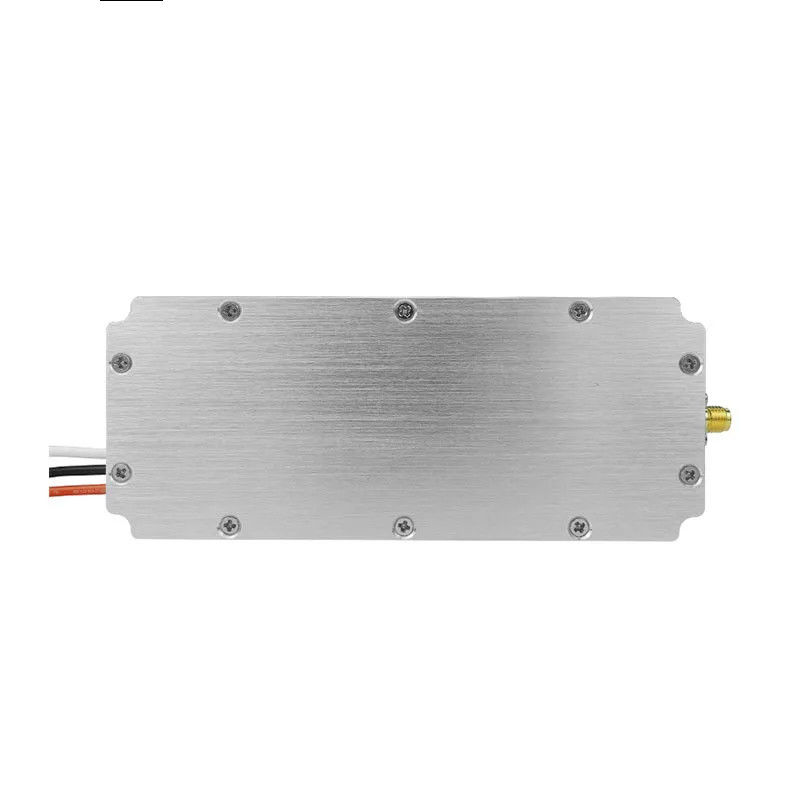

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 1

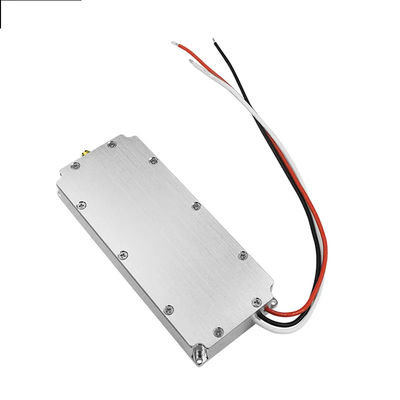

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 2

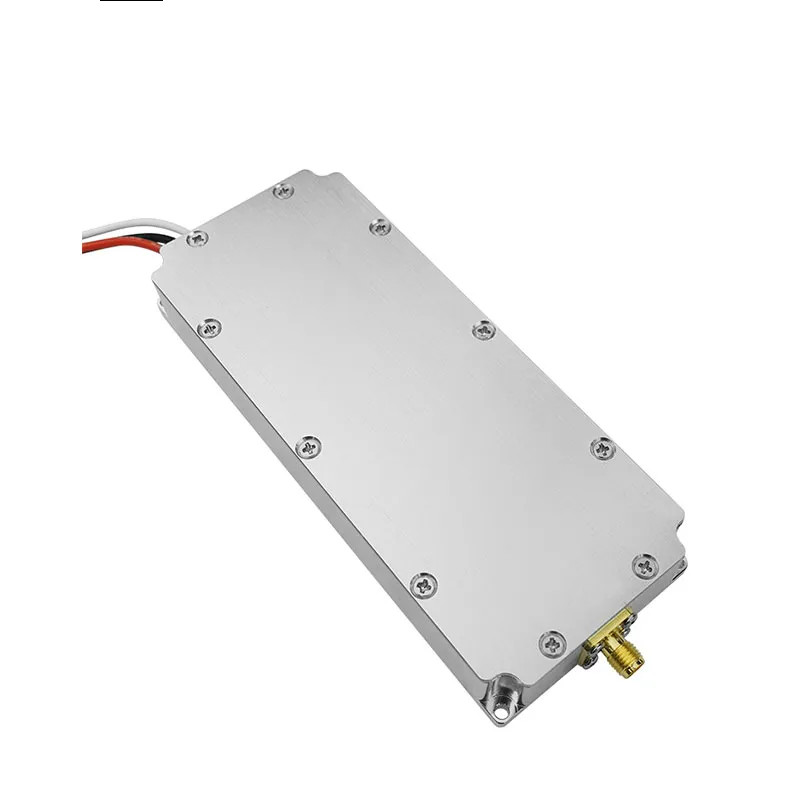

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 3

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 4

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 5

Compact Network Jammer Module Broadband RF Power Amplifier Module 100mhz-2700mhz 6
