28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection
28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection
28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection

28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-8work days
Payment Terms: LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C
Contact Now

Detail Information
Frequency: 5150-5350 MHZ Work Temperature: -20~+70 ℃
Max Output Power: 50 W Work Voltage: DC28 V
Max Gain: 47 DB Flatness: ±1 DB
Max Current: 4 A Output VSWR: ≤1.5
Output Connector: SMA/F 50Ω Customized Power Amplifier Efficiency: 45 When Max Output
Switch Control: 0V Off /0.6 On Standing Wave Protection: OK
Temperature Protection: 75° ℃ Size: 132*53*18 Mm
Weight: 0.25 Kg
Highlight:

28V Signal Jammer Module

,

5.2G Signal Jammer Module

,

Jammer rf power module

Product Description

Product Parameters

Frequency 5150-5350  MHZ
Work Temperature -20~+70  ℃
Max Output Power 50  W
Work Voltage DC28  V
Max Gain 47  dB
Flatness ±1  dB
Max Current 4  A
Output VSWR ≤1.5
Output Connector SMA/F 50Ω     Customized
Power Amplifier Efficiency 45     when Max Output
Switch Control 0V off /0.6 on
Standing Wave Protection OK
Temperature Protection 75°  ℃
Size 132*53*18  mm
Weight 0.25  Kg

Product Description

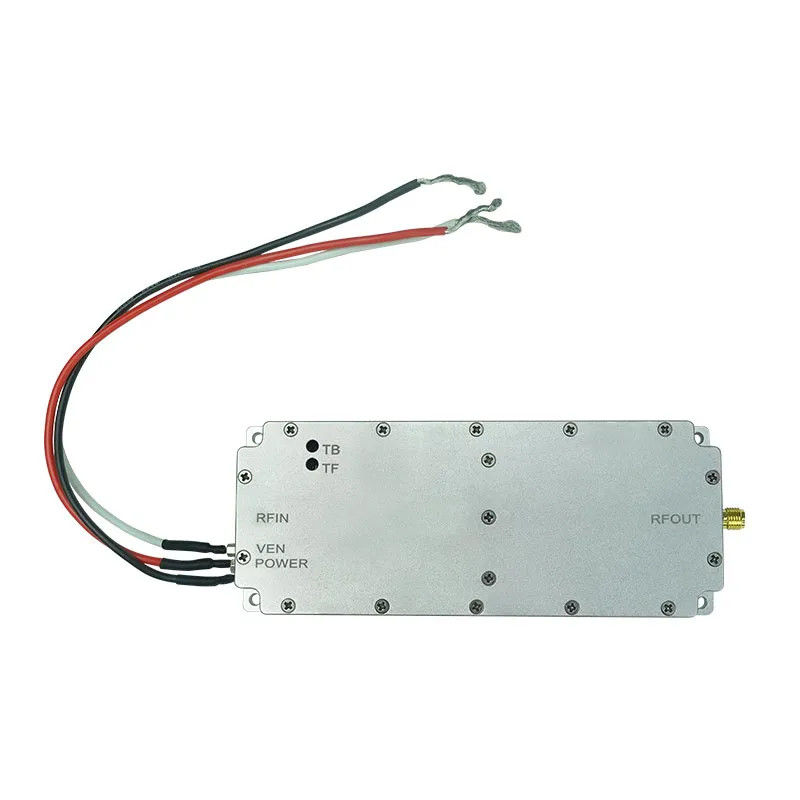

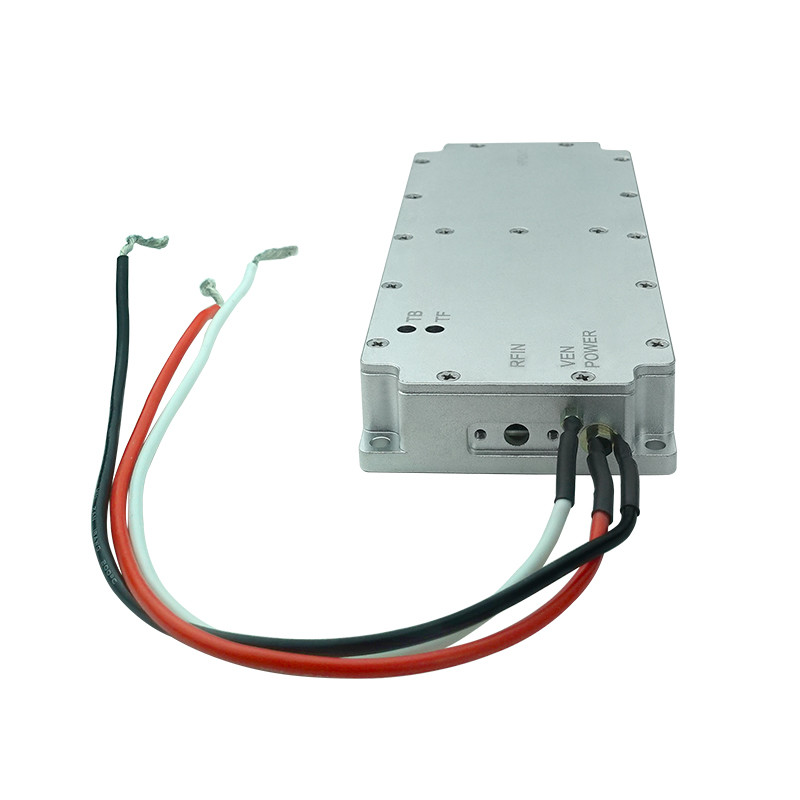

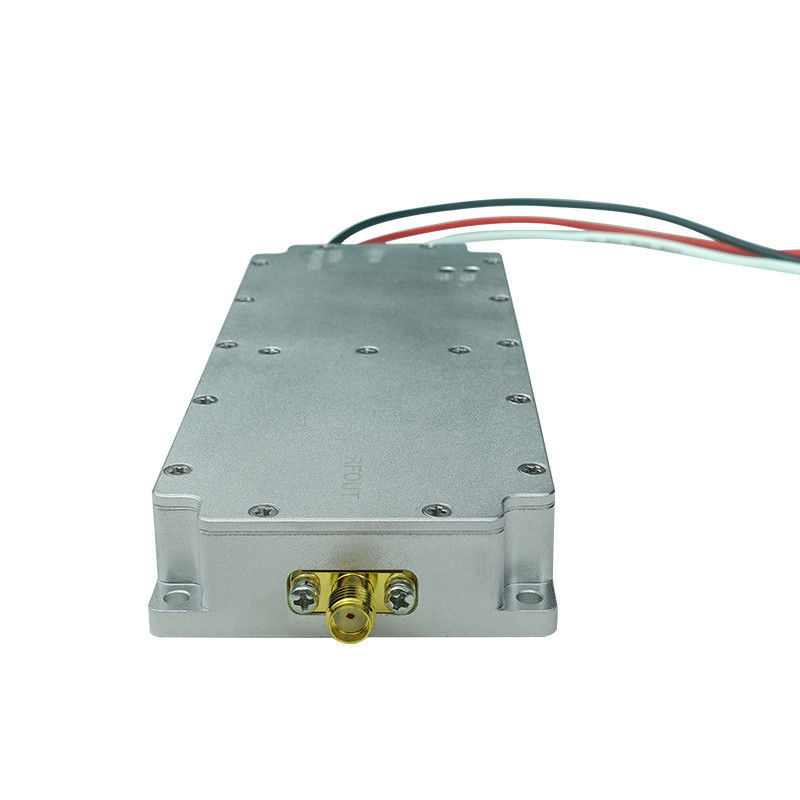

50W Jammer Module with Circle Protection Designed for the 5.2GHz frequency, this powerful 50W jammer is equipped with a circle protection feature that effectively interferes with target signals to ensure security and privacy. It interferes with 5.2 GHz signals, blocking communication and data transmission. However, the module is compact and easy to integrate into various systems for easy installation and use. It also has good heat dissipation performance to ensure the stability of the module during long-term operation.

28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 0

28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 1

28V 50W 5.2G RF Power Signal Jammer Module With Circle Protection 2
