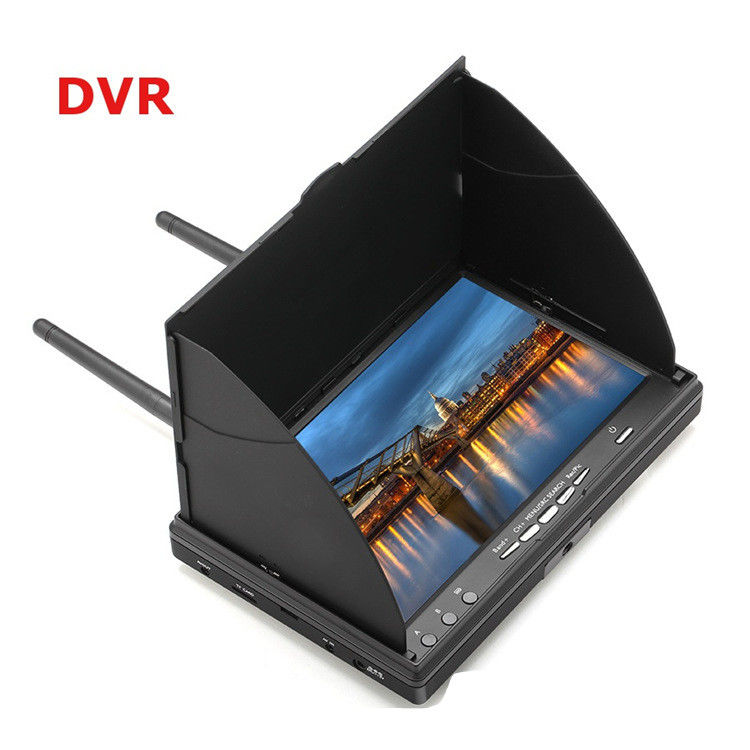

800x480 7 Inch FPV Monitor LT5802S 5.8G 40CH LED Backlight

800x480 7 Inch FPV Monitor LT5802S 5.8G 40CH LED Backlight

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Contact Now

Detail Information
LCD Screen:	7 Inch	Screen Type:	TFT LCD Screen / Long Life, LED Backlight
Resolution:	800 * 480	Brightness:	600CD / M2
Perspective:	140/120degree (horizontal / Vertical)	Working Voltage:	DC 7 ~ 16 V
Power Consumption:	Max 650 MA 12V	Battery Charging Current:	850 MA 12V (max)
Working Temperature:	-10℃~ + 65℃	Connector:	RP-SMA (external Needle)
Antenna Connector:	RP-SMA (inner Hole)	Size:	17511730mm
Highlight:	800x480 7 inch fpv monitor , 40CH 7 inch fpv monitor , LT5802S

Product Description

Product parameters

LCD Screen	7 inch
Screen type	TFT LCD screen / long life, LED backlight
Resolution	800 * 480
Brightness	600CD / m2
Perspective	140/120degree (horizontal / vertical)
Working voltage	DC 7 ~ 16 V
Power consumption	Max 650 mA 12V
Battery charging current	850 mA 12V (max)
Working temperature	-10℃~ + 65℃
Connector	RP-SMA (external needle)
Antenna connector	RP-SMA (inner hole)
Size	17511730mm

Product Description

7Inch FPV Monitor LT5802S 5.8G 800*480 Resolution 40CH LED Backlight for Multicopter parts 800x480 7 Inch FPV Monitor LT5802S 5.8G 40CH LED Backlight 0
