Highlight:
SZSRYFZ-LGX -08 /UHF broadband seamless jamming technology/customized frequency /Imported devices/
Product Overview
Portable drone countermeasures trolley equipment with integrated antenna host design, using directional antenna, to realize the long-distance range of black flight drone interception, drive away, forced landing. Apply UHF sweeping technology to transmit a variety of broadband signals, targeting the mainstream drone remote control, video transmission and positioning bands on the current market for effective suppression, cutting off the connection between the flyer and the drone, forcing the drone to lose control, resulting in the occurrence of the effect of its return, forced landing and so on. It is suitable for public security, electric power system, anti-terrorism field, military strongholds, airports, prisons and guards, activity sites, breeding farms and other low-altitude security strongholds.
product features
Ø Adoption of UHF broadband seamless jamming technology, specializing in all types of frequency hopping technology；
Ø Single-channel control switch for selecting the frequency band to be turned on on demand, with battery level indication；
Ø customized frequency band, only interferes with drone control and video transmission frequencies, does not interfere with other frequencies；
Ø Imported devices, the use of slow start circuit design can avoid the mechanical switch generated by the ignition phenomenon, high integration and stable work；
Ø Built-in large battery 50A, improve endurance, integrated design, easy to understand；
Ø SMA/N (400M/900M/1.2/1.4/1.5G/2.4G/5.2G/5.8G) for connecting directional antennas;
Ø One power charging port (AC220V ), one DC battery port (DC24-29.4V), the device supports charging and using at the same time, high efficiency cooling fan to ensure the stability of the device.
Product Parameters
1.Frequency bands and power
|
No.
|
frequency band
|
Power
|
Remark
|
|
1
|
400 - 450 MHz
|
50W(47dBm)
|
|
|
2
|
840 – 930 MHz
|
50W(47dBm)
|
|
|
3
|
1150 – 1280 MHz
|
50W(47dBm)
|
|
|
4
|
1350 - 1450 MHz
|
50W(47dBm)
|
|
|
5
|
1550 - 1680 MHz
|
50W(47dBm)
|
|
|
6
|
2380 – 2500 MHz
|
50W(47dBm)
|
|
|
7
|
5150 - 5350 MHz
|
50W(47dBm)
|
|
|
8
|
5720 - 5860 MHz
|
50W(47dBm)
|
|
|
jamming distance:800-2500m
|
2. Safety and standards
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
model
|
SZSRYFZ-LGX -08
|
|
|
2
|
protection level
|
IP65
|
|
3Electrical standards
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
power supply
|
AC220V / DC28V
|
|
|
2
|
power consumption
|
1120W
|
|
|
3
|
output power
|
400W
|
|
4. Mechanical parameters
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
size
|
L*W*H: 630x500x350mm mm
|
|
|
2
|
weight
|
40 kg
|
|
5. Environmental adaptability
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
working temperature
|
－20℃～＋45℃
|
|
|
2
|
storage temperature
|
－40℃～＋55℃
|
|
|
3
|
recommended storage temperature
|
20~30℃
|
|
|
4
|
relative humidity
|
80%RH
|
|
It can simultaneously send out more than eight kinds of frequency band signals to jam the wireless control link, GPS link and wireless map transmission signal of the UAV, and each transmitting frequency band has an independent control switch. The equipment has the function of displaying the working status, battery power and other working status, and various instructions are clear and intuitive.

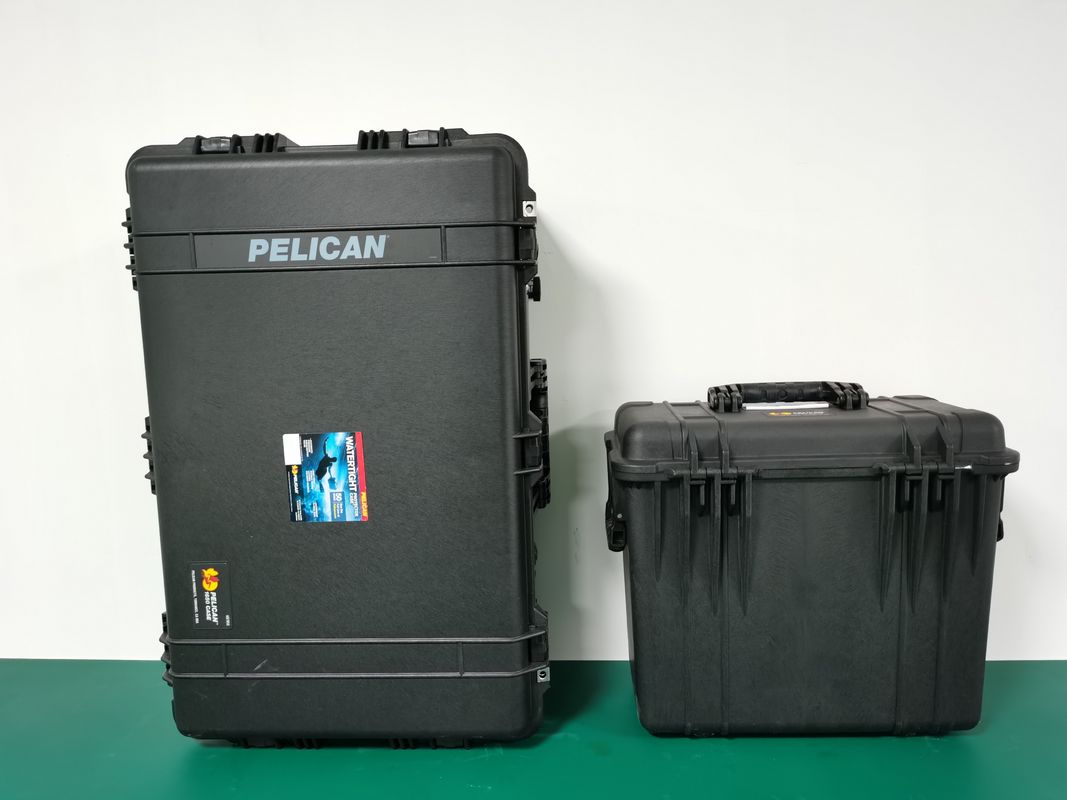

Product Dispaly
