Long Range FPV / Drone Fiber Optic 5km10km20km Range Crossover and Anti-Interference Technology

Long Range FPV / Drone Fiber Optic 5km10km20km Range Crossover and Anti-Interference Technology

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	5KM 10KM 20KMFPV Fiber Optic Dron-e Anti-interference Long-distance Optical Fiber FPV Drone
Model Number:	FPV Dron-e with Fiber Optic Kit
Payment & Shipping Terms:
Minimum Order Quantity:	1
Delivery Time:	5-8 work days
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Contact Now

Detail Information
Transmission Distance:	Single-mode Optical Fiber 0-20 Kilometers	Wavelength Single Mode:	1310(9/125um)+ 1550
Data Direction:	Bidirectional	Video Format:	NTSC/PAL/SECAM
Highlight:	20km FPV Drone Fiber Optic , 5km FPV Drone Fiber Optic , Anti Interference FPV Drone Fiber Optic

Product Description

Product Background

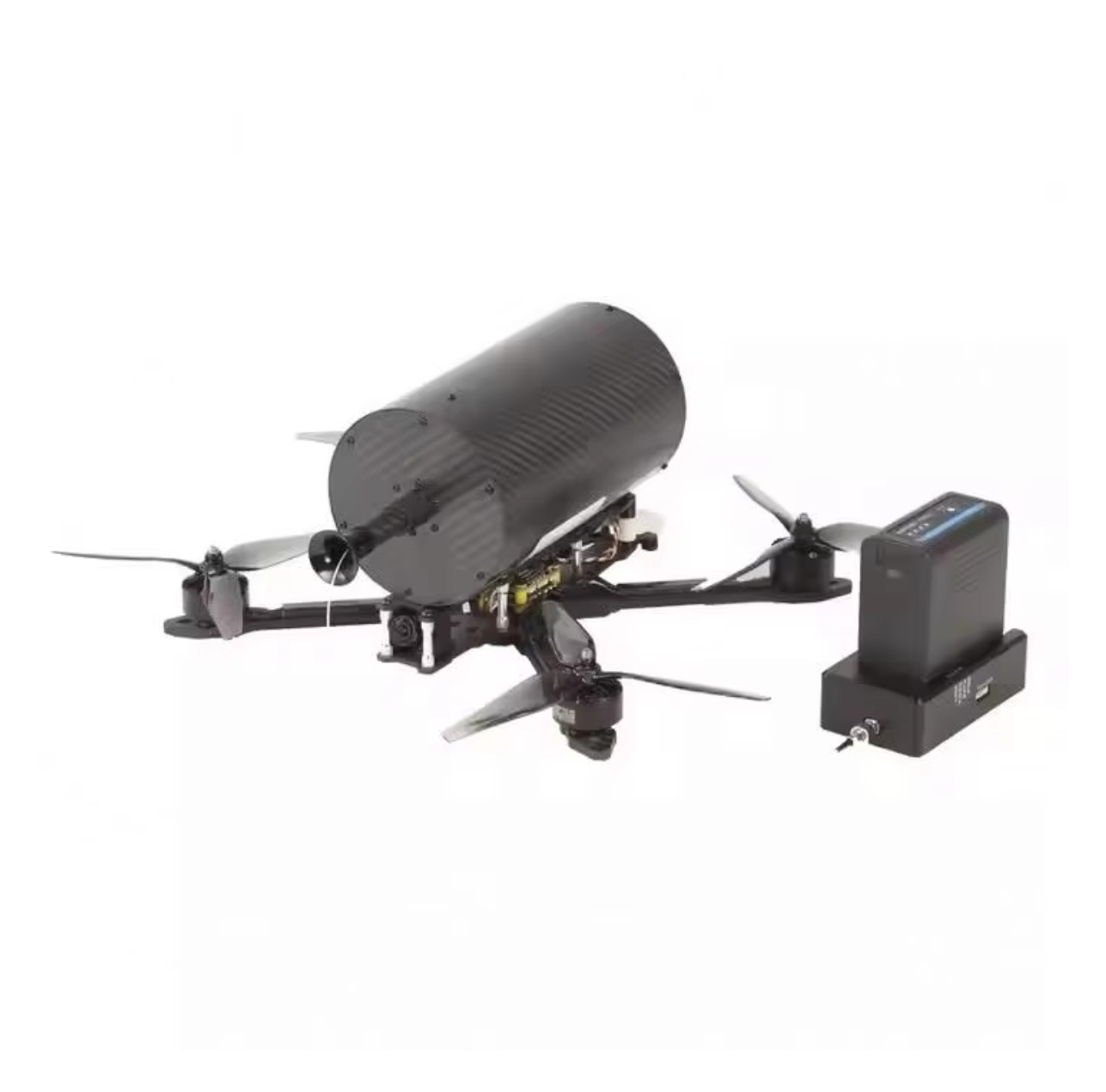

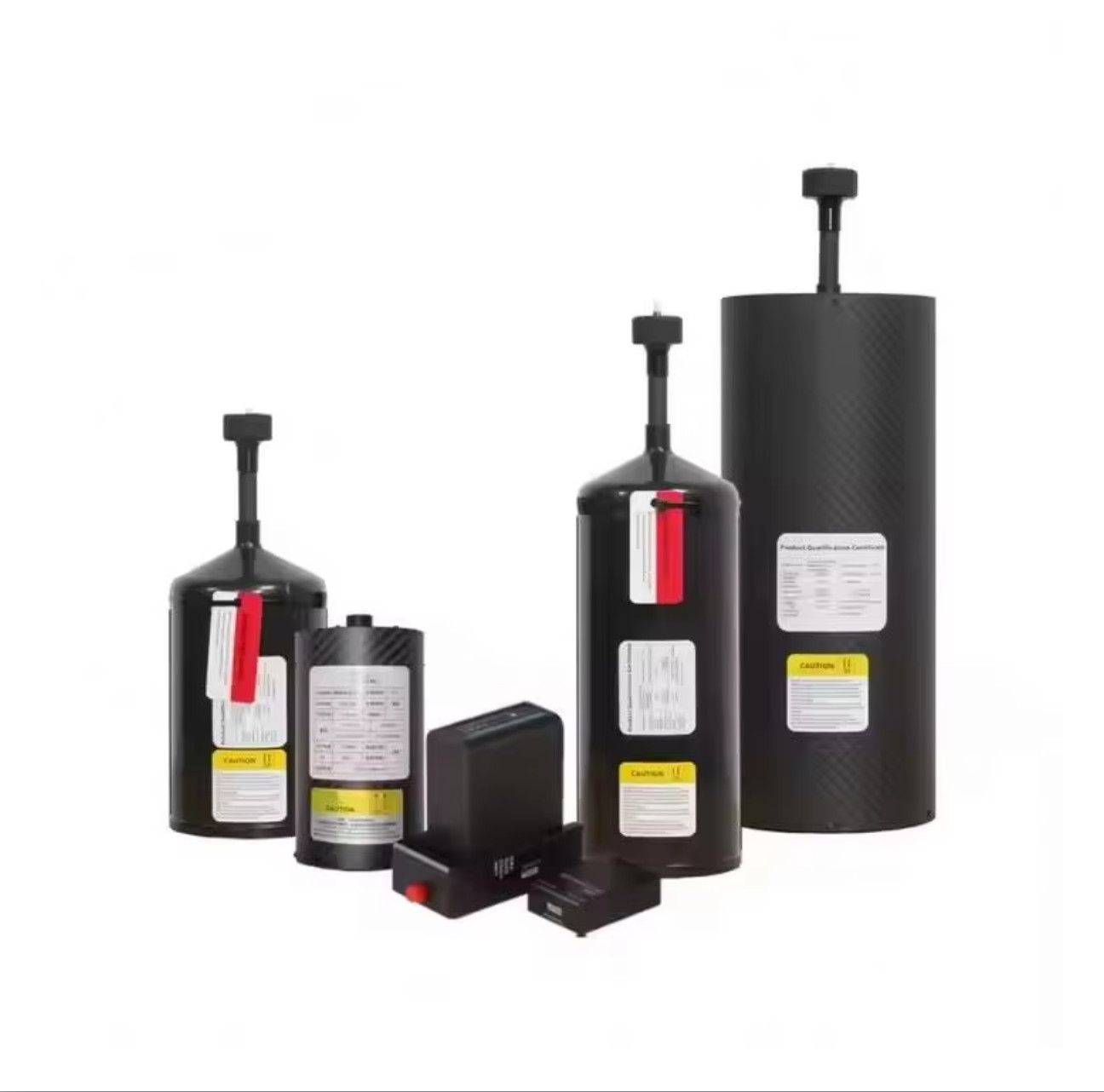

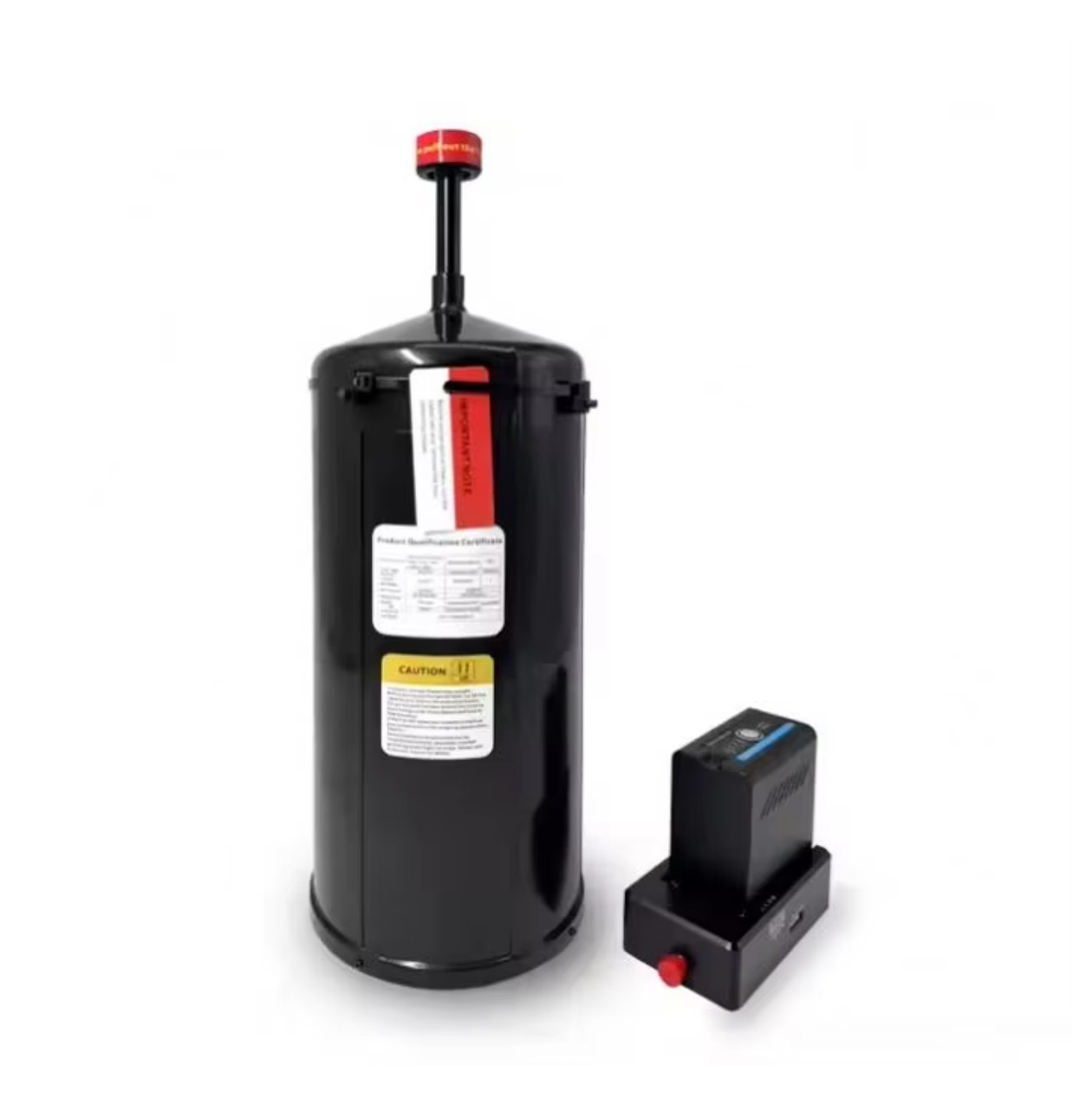

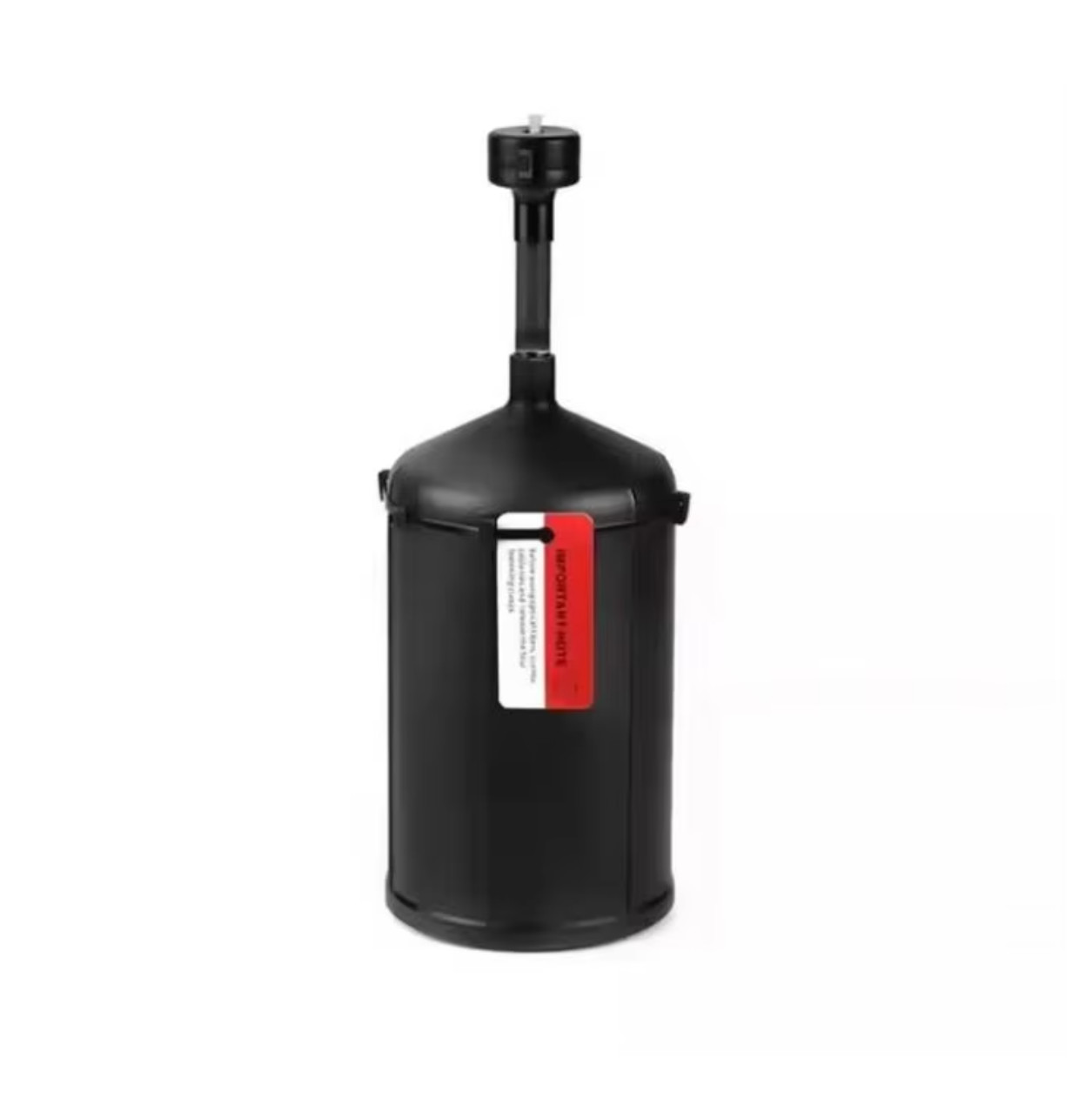

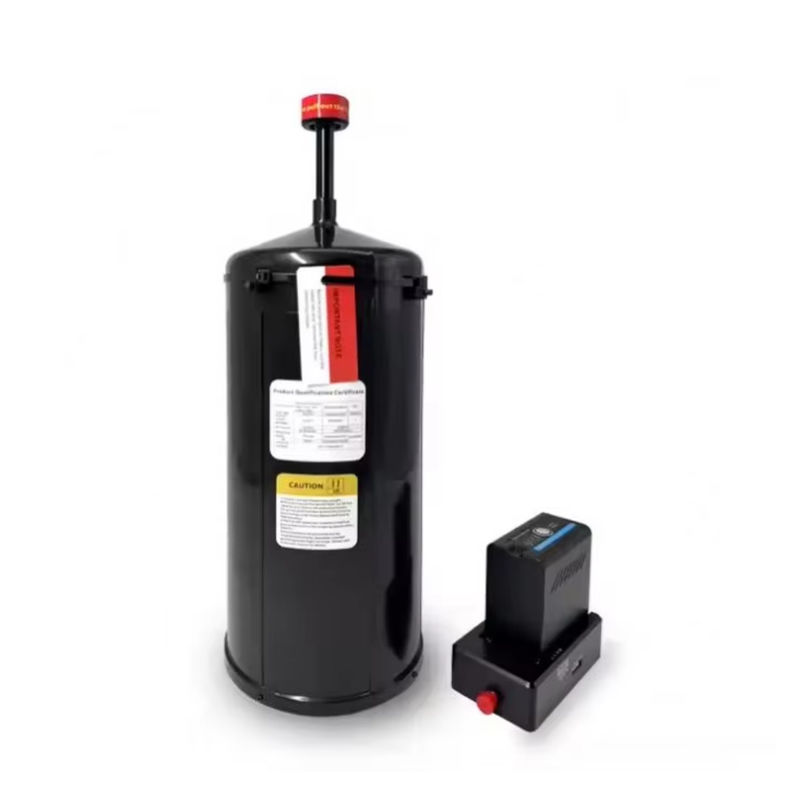

The optical fiber drone consists of a drone, a wire bucket equipped with optical fibers, and an optical-electrical converter. After the drone takes off, the optical fibers it carries continuously release, and the high-definition images captured by them are transmitted back to the ground control personnel in the form of optical signals. After signal conversion by the optical-electrical converter, the signals are fed back to the ground operators. The optical fiber drone is a type of drone that connects the drone and the operator through optical fibers to transmit control signals and video data, and it has strong anti-interference capabilities. The 5KM, 10KM, and 20KM optical fiber drones refer to those with optical fiber lengths of 5 kilometers, 10 kilometers, and 20 kilometers respectively, and the corresponding combat radius is usually within this range.

Specification

Fiber Interface	FC interface
Data Format	TTL/S.BUS
Rate	0-1Mbps
Video Format	NTSC/PAL/SECAM
Product Interface	GH1.25
Fiber Type	Single mode, single fiber
Transmission Distance	Single mode fiber 0-20Km
Data Direction	Bidirectional
