Portable Passive Detection Drone Jammer Ensuring Zero Electromagnetic Environmental Pollution
Detail Information |
|||
Detection Band: | 900M,1.2G,2.4G,5.2G,5.8G | Detection And Positioning Distance: | 1~10km |
---|---|---|---|
Detection Height: | 0m~1000m | Weights: | ≤18kg |
Sizes: | 520mm*415mm*224mm | Screen Size: | 10.1in |
Highlight: | Suitcase drone signal detector,5.8G drone signal detector,5.8G handheld drone jammer |
Product Description

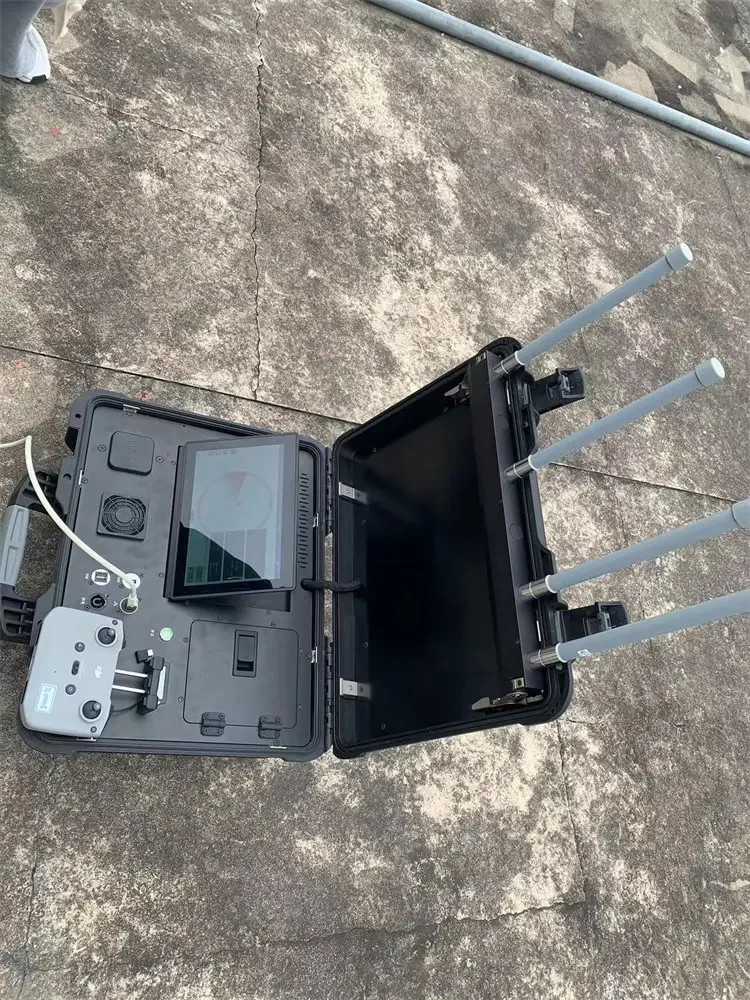

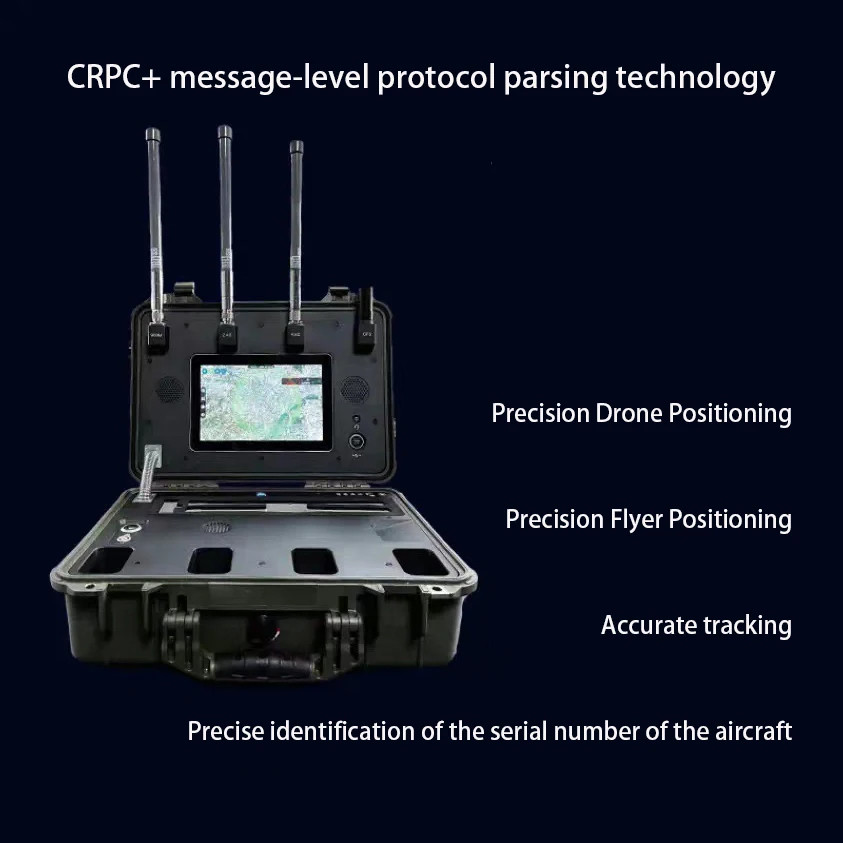

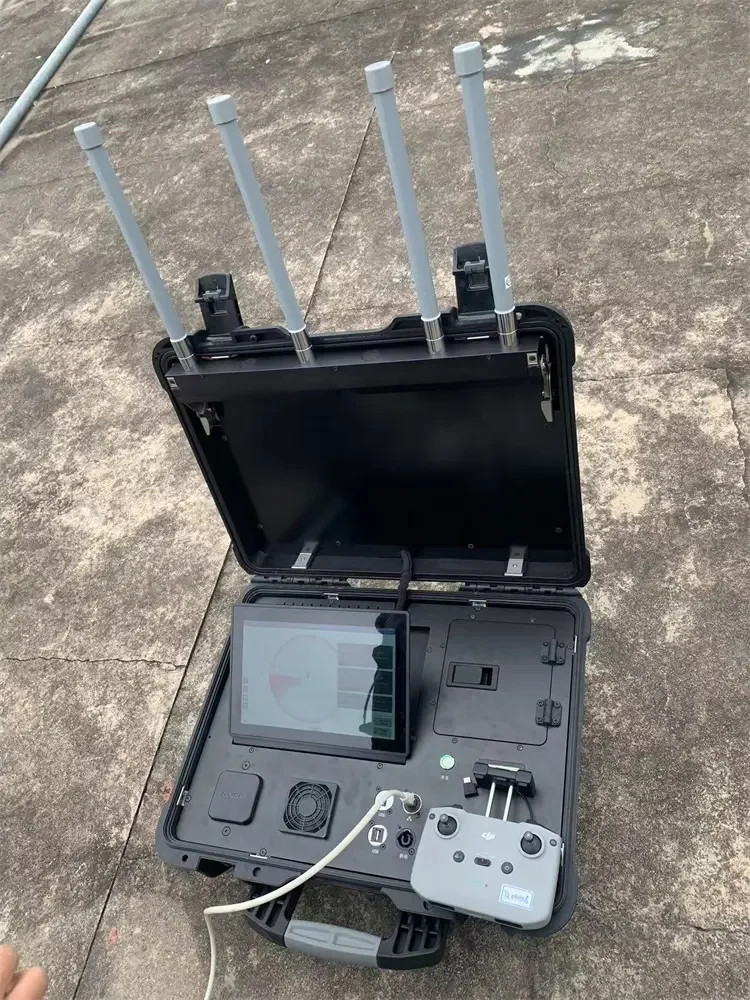

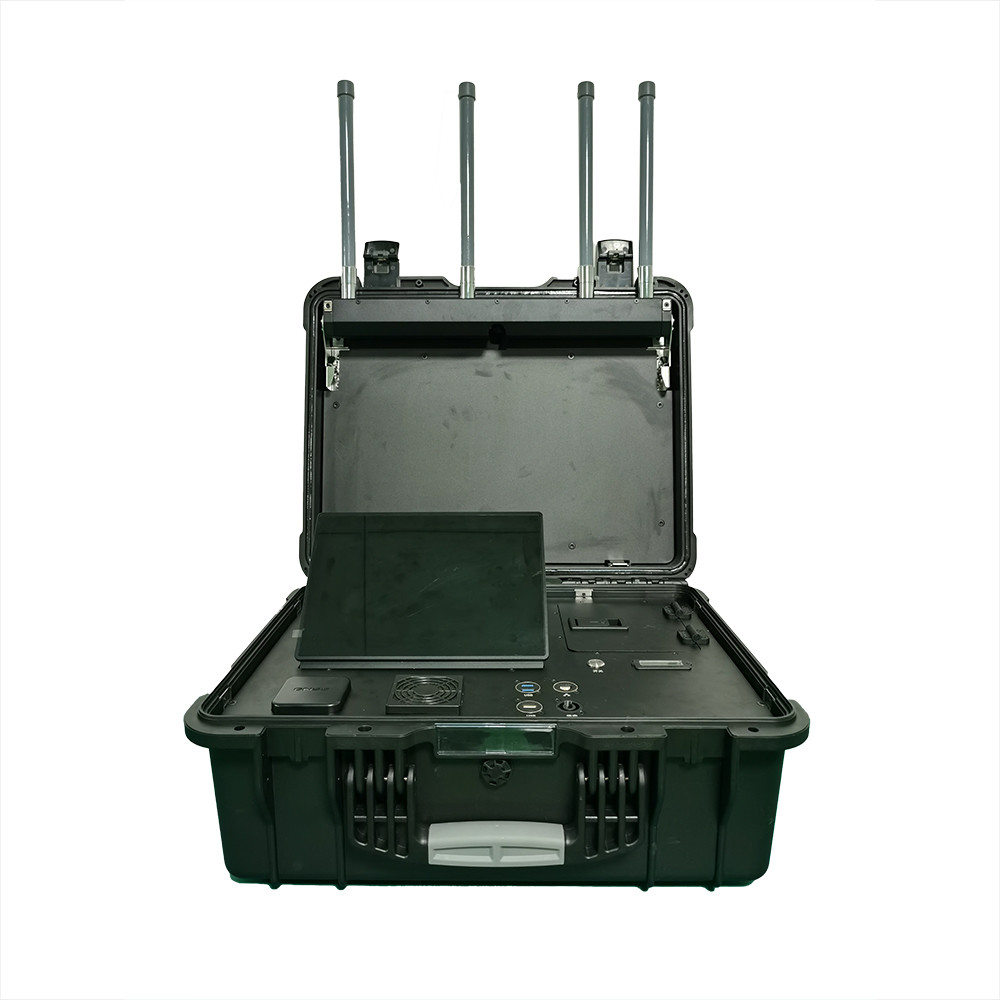

Suitcase portable drone detection and positioning system
Product Overview
Portable drone detection and positioning equipment is a portable drone detection equipment in the form of a suitcase equipped with a comprehensive drone control system. Through in-depth analysis and data mining of drone signals, the device can monitor the serial number, model, location (latitude, longitude, azimuth), speed, altitude, altitude, take-off point, return point, trajectory, remote control position (latitude, longitude, azimuth) and other multi-dimensional information of the drone within the monitoring range.
The equipment is suitable for security and guard duties at major events, security patrol, special counter-terrorism, political core areas, border security, military restricted areas, military management areas, power and petrochemical parks and other scenarios of low-altitude security, can be a single offline work, flexible and rapid deployment, mobile response to meet the needs of all types of scenarios.
Product Paramenters
Detection and identification of drone types
|
Most of the drones on the market, such as DJI, Daotong, Feimi, Dahua, Haoxiang, etc., and other homemade traversing machines and
WiFi machines. |
Locatable drone models
|
Dajian Gao, Air, Mini, FPV, Avata etc. Type No.
|
Detection band (Hz)
|
900M, 1.2G, 2.4G, 5.2G, 5.8G (expandable)
|
Detection and positioning distance
|
1~10km
|
Detection height
|
0m~1000m
|
Number of simultaneous targets
|
≥5 sorties
|
Simultaneous tracking and display of drone trajectories
|
Article ≥5.
|
azimuthal error
|
≤1.5°(RMS)
|
position accuracy
|
≤10m
|
Detection success rate
|
≥95%
|
Roll-out deployment time
|
≤90s
|
Equipment withdrawal time
|
≤30s
|
Recognition Response Time
|
≤5s
|
