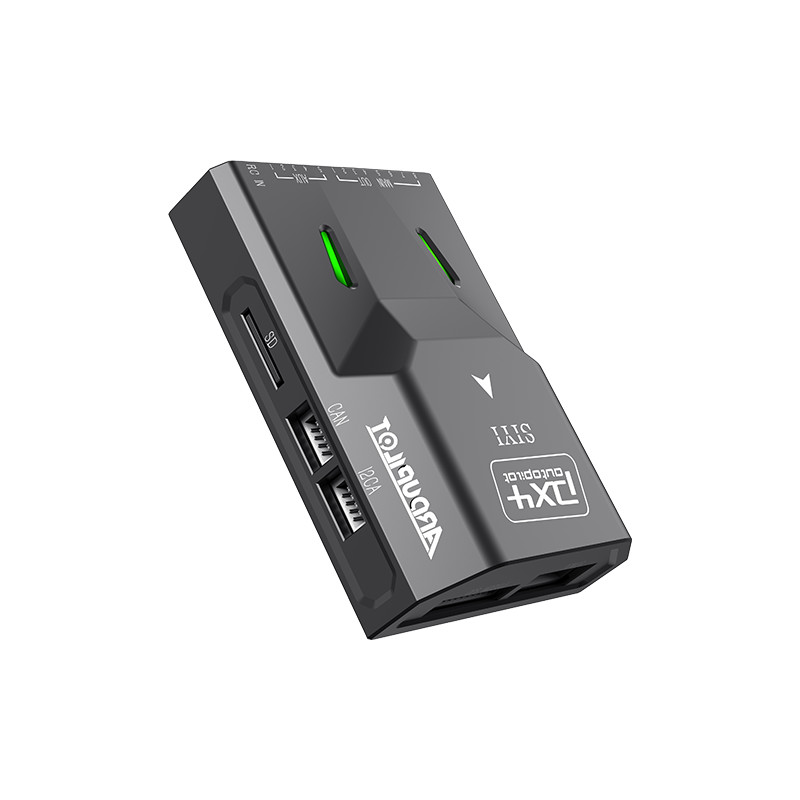

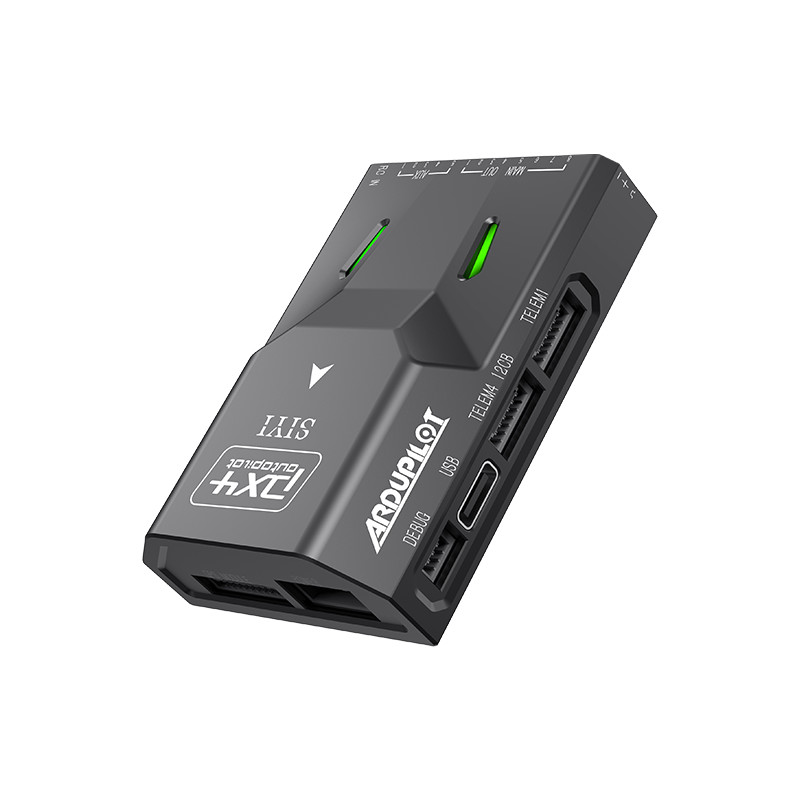

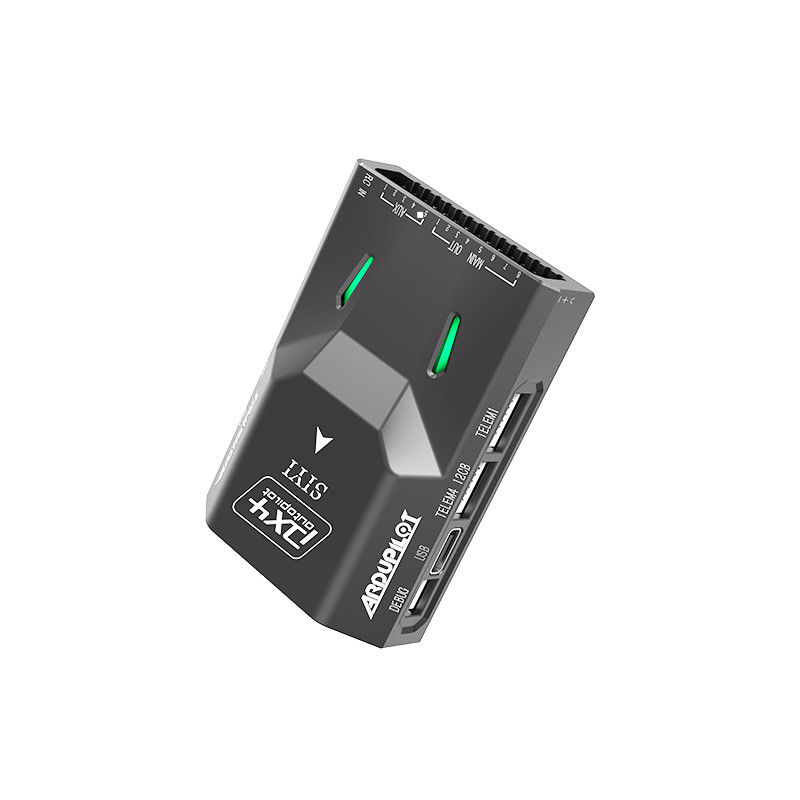

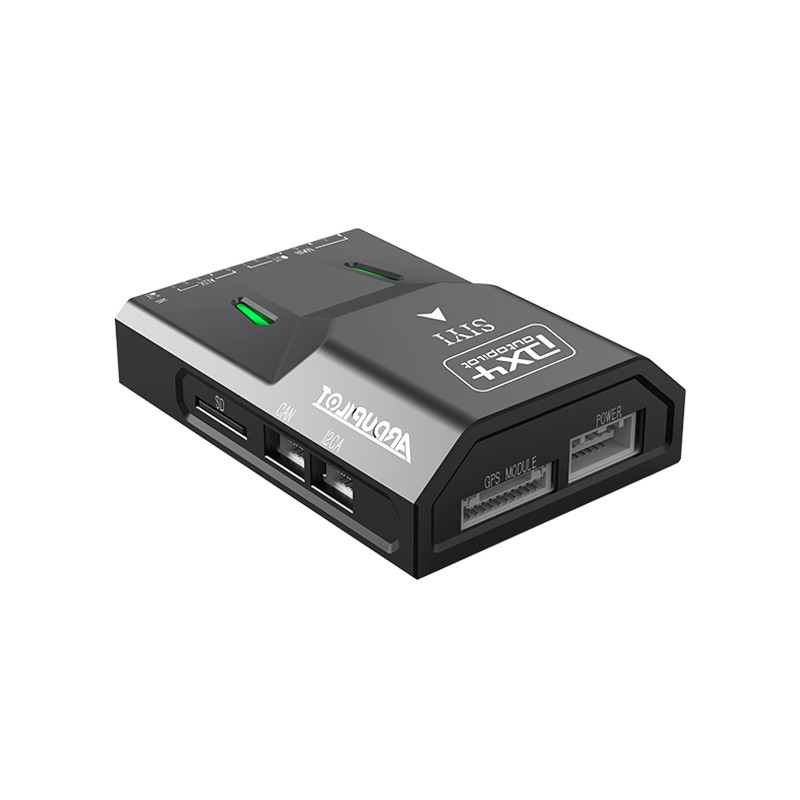

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV
SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Model Number: N7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

Detail Information
Main Processor: STM32H743IIK6 (32 Bit Arm ® Cortex®-M7, 480MHz, 2MB Memory, 1MB RAM) Co-processor: STM32F103 (32 Bit Arm® Cortex®-M3, 72MHz, 20KB SRAM)
Accelerometer / Gyro: BMI088/ICM20689 Electronic Compass: IST8310
Barometer: MS5611 Compatible Model: PX4 / ArduPilot Firmware (Planes / 3-8 Axis Multirotors / Helicopters / VTOL / UGV / USV)
Dimensions: 47 X 68 X 19 Mm Weight: 57 G
Highlight:

M9N GPS Autopilot Flight Controller

,

PX4 Autopilot Flight Controller

,

14S Autopilot Flight Controller

Product Description

Product Description

The N7 flight controller is equipped with the H7 double-precision floating-point unit processor. lt adopts built-in dual lMU redundancy and internal shock absorption structure design,  which endows the aircraft with high reliability. The N7 flight controller is compatible with  both Ardupilot and PX4 open-source ecosystem to achieve adbundant application scenarios  and provide stable and comprehensive systematic solutions for enthusiasts and industry  application explorers of drones, unmanned vehicles and ships, smart robots.

Technical Specification



UART Serial Port 4
I2C 3
CAN 1
PWM Output

8 x Standard PWM IO

5 x Programmable IO
RC Input (SBUS) 1
Power Module Input 1
GPS & Safety 1
USB (Type-C) 1
TF Card Slot 1
Compatible Model

PX4 / ArduPilot Firmware

(Planes / Multirotors / Helicopters / VTOL / UGV / USV)
Power Module Voltage Input 4.5 ~ 5.5 V
USB Voltage Input 5 V (±0.25 V)
Servo Voltage Input 0 ~ 10 V
Working Temperature -20 ℃ ~ 65 ℃
Dimensions 47 x 68 x 19 mm
Weight 57 g



SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 0

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 1

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 2

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 3

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 4

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 5

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 6

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 7

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 8

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 9

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 10

SIYI N7 Autopilot Flight Controller Compatible With Ardupilot And PX4 Ecosystem M9N GPS And 2 To 14S Power Module For Drone UAV 11
