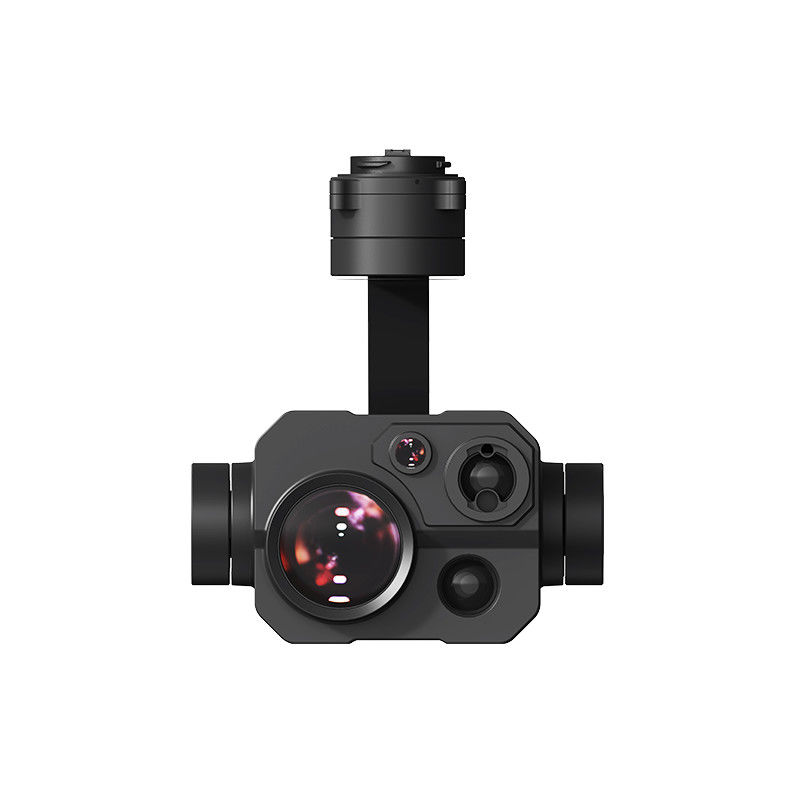

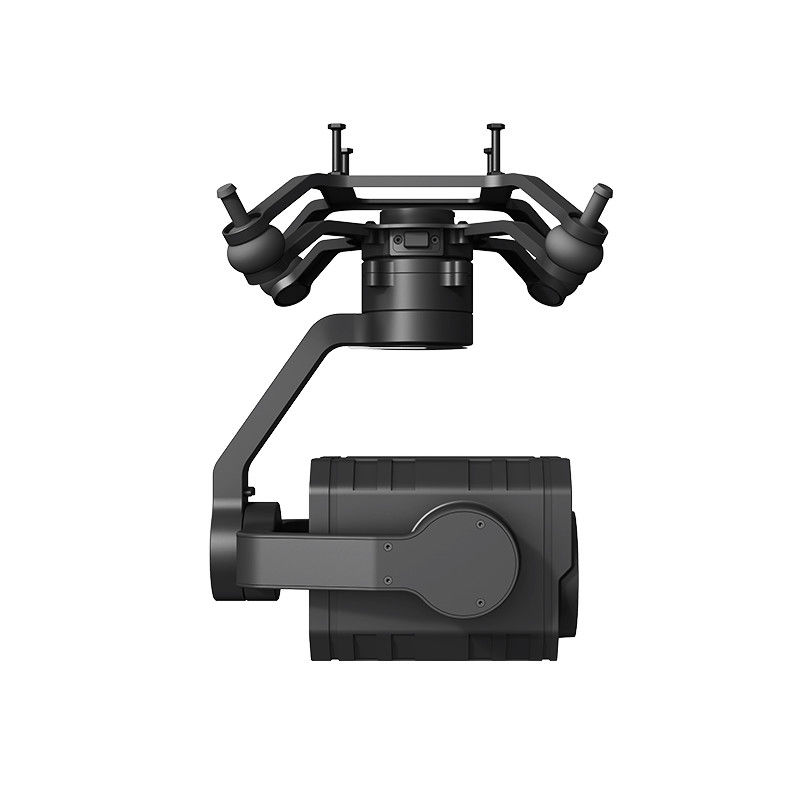

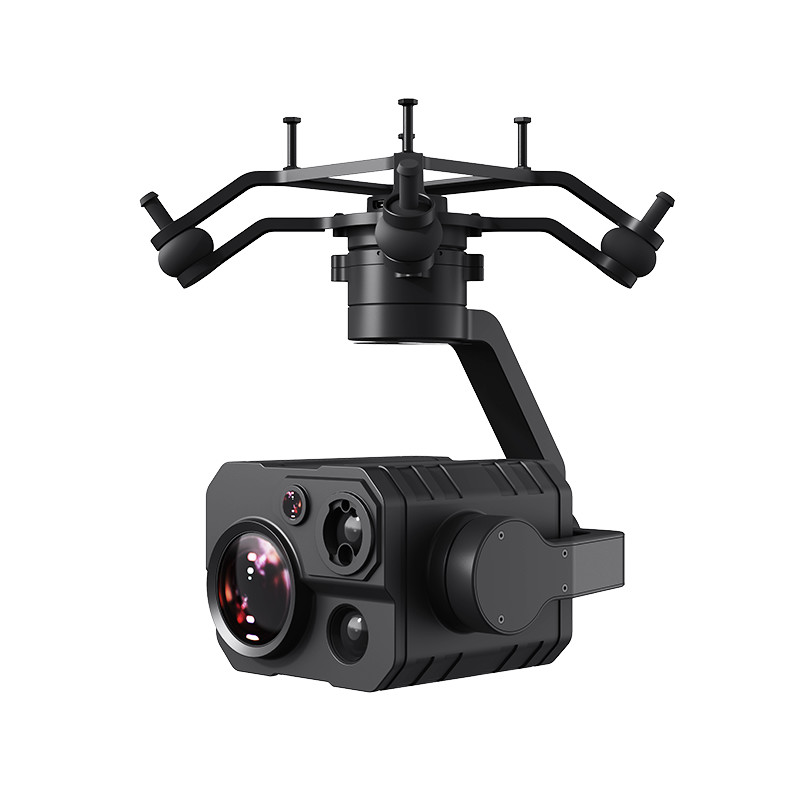

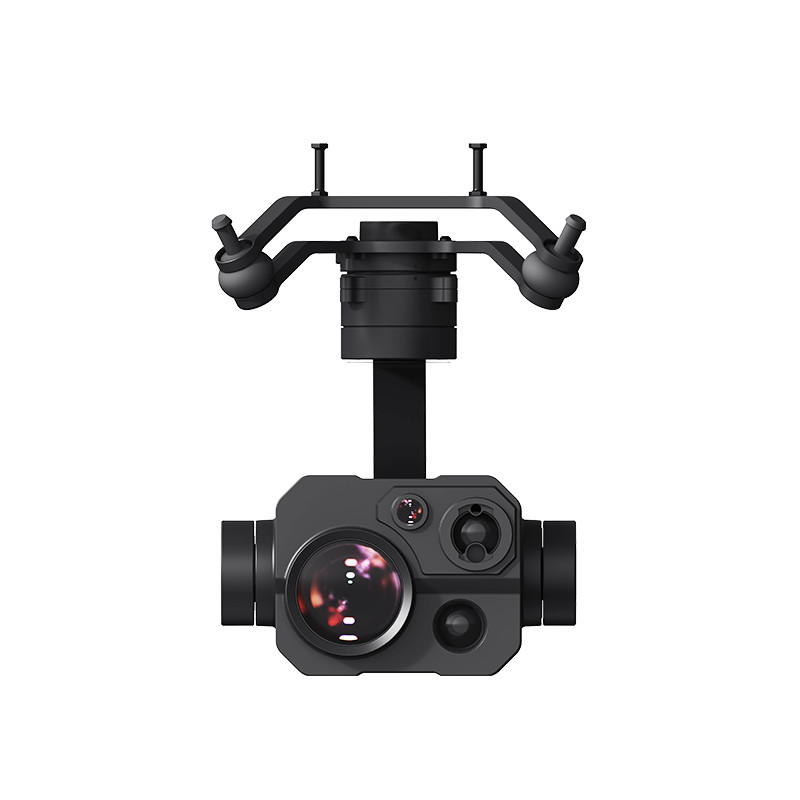

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera
ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Model Number: ZT30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

Detail Information
Quick Release: Supported Controllable Yaw Angle: Limitless
Zoom Camera: 30X Optical Zoom (180X Hybrid Zoom) 4K 1/2.8 Inch CMOS 8MP Effective Resolution Thermal Camera: 640X512, 2X Digital Zoom Focal Length: 19mm Fixed Focus & Athermalization Point/Full Screen/ Selected Area Measure Temperature
Wide Angle Camera: 2K, 1/2.8-Inch CMOS 4MP Effective Resolution Laser Rangefinder: Range: 5-1200m
Video Output: Ethernet Control Signal Input: S.Bus, UART, Ethernet UDP/TCP
Product Dimension (Including The Quick Release Anti-Vibration Claw): 182*140*134.5 Mm Product Weight (Including The Quick Release Anti-Vibration Claw): 854 G
Highlight:

AI 180X Four-sensor Optical Pod

,

High Resolution Night Vision Camera

Product Description

Product Description

ZT30 is a four-sensor hybrid optical pod, zoom camera, thermal imaging camera, laser range- finder, and wide-angle camera that collaborates efficiently. With 640X512 resolution thermal  imaging sensor, 1200m range high accuracy rangefinder, 180X hybrid zoom, and 30X optical  zoom(1/2.8-inch Sony CMOS support 4K Ultra HD Video Recording and Photography) Optional  powerful AI identify tracking designed by SIYI, 2K wide-angle camera, limitless yaw axis,  upgraded quick release structure, abundant gimbal control interface compatible with both  SIYI links and third-party links. High accuracy and high collaboration control algorithms  ensure stable imaging and zooming ability during flight. In a word, ZT30 optical pod is a rare  and good payload for multi-rotors, VTOLs, and robotics.

Technical Specification



Video Output Port Ethernet
Control Signal Input Port

S.Bus

UART

Ethernet UDP / TCP
Control Signal Output Port S.Bus
High-Accuracy 3-Axis Stabilization Yaw, Pitch, Roll
Working Voltage 11 ~ 25.2 V
Power Consumption

Average 9 W

Summit 20 W
Waterproof Level IP4X
Working Temperature -10 ~ 50 ℃
Dimension 134.5 x 140 x 201 mm (including the quick release anti-vibration claw)
Weight 854 g (including the quick release anti-vibration claw)

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 0

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 1

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 2

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 3

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 4

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 5

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 6

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 7

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 8

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 9

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 10

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 11

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 12

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 13

ZT30 4K AI 180X Four-sensor Optical Pod Wide-Angle High Resolution Night Vision Camera 14
