ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot
ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Model Number: ZT6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

Detail Information
Controllable Yaw Angle: ± 270° Optical Camera: 6X Digital Zoom, 4K, Sony 1/2.8 Inch CMOS, 8MP Effective Resolution
Thermal Camera: 640X512, 2X Digital Zoom Focal Length: 13mm / F1.0 Fixed Focus & Athermalization Point / Full Screen / Selected Area Measure Temperature Video Output: Ethernet, Micro-HDMI, CVBS(AV)
Control Signal Input: S.Bus, UART, Ethernet UDP/TCP Product Dimension (Including Anti-Vibration Board): 73.5*75*131.5 Mm
Product Weight (Including Anti-Vibration Board): 197 G
Highlight:

4K 8MP Gimbal Camera

,

ZT6 Mini Gimbal Camera

,

3-Axis Stabilizer Gimbal Camera

Product Description

Product Description

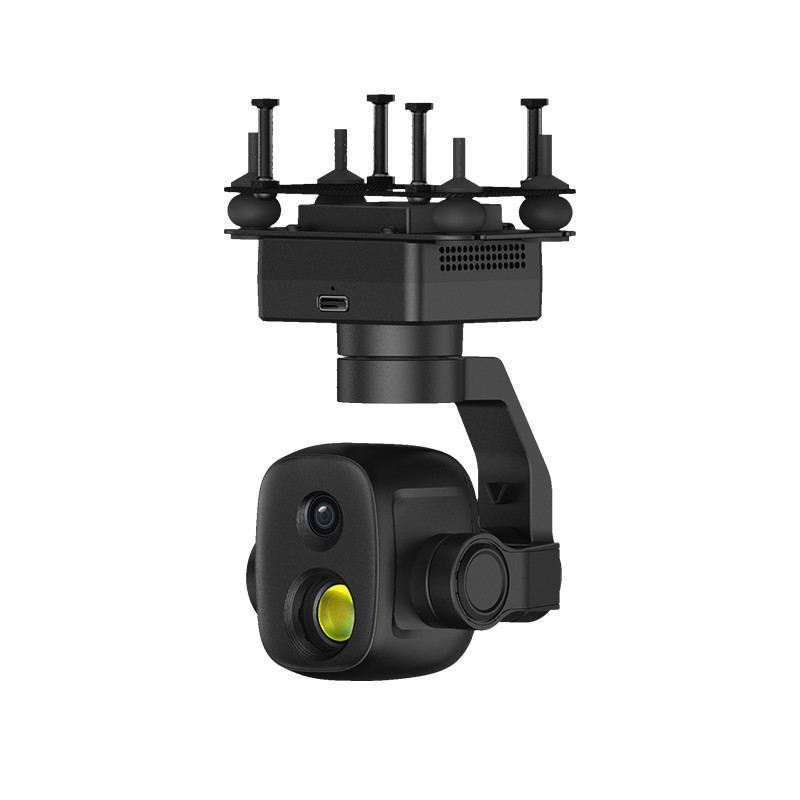

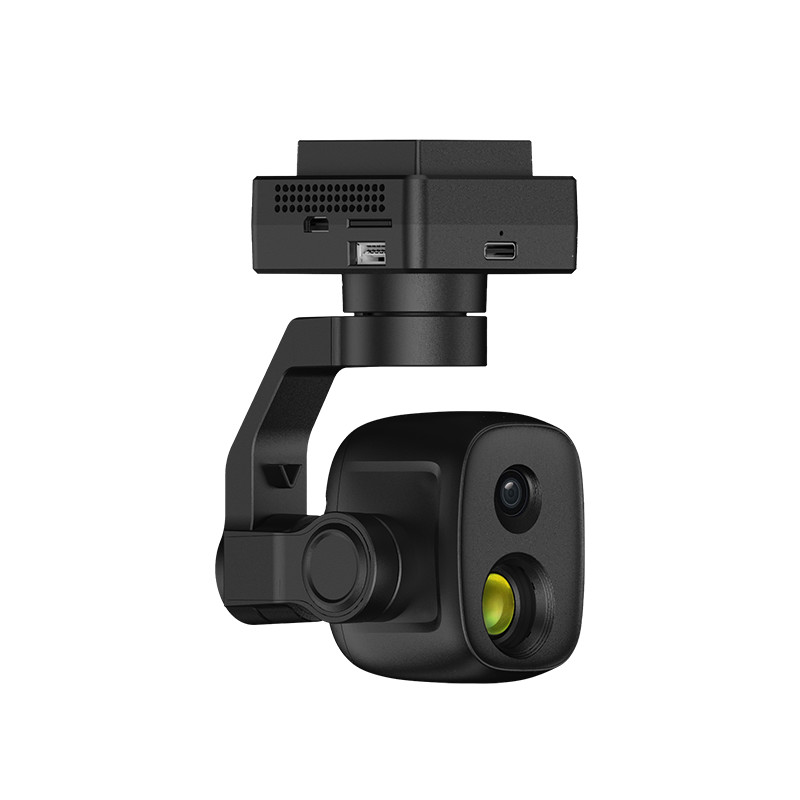

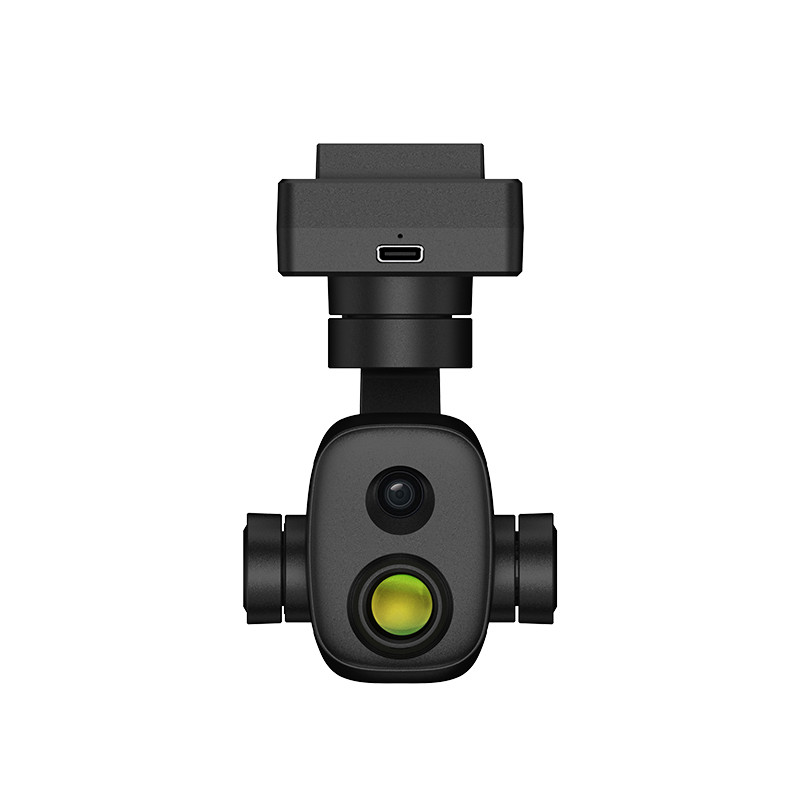

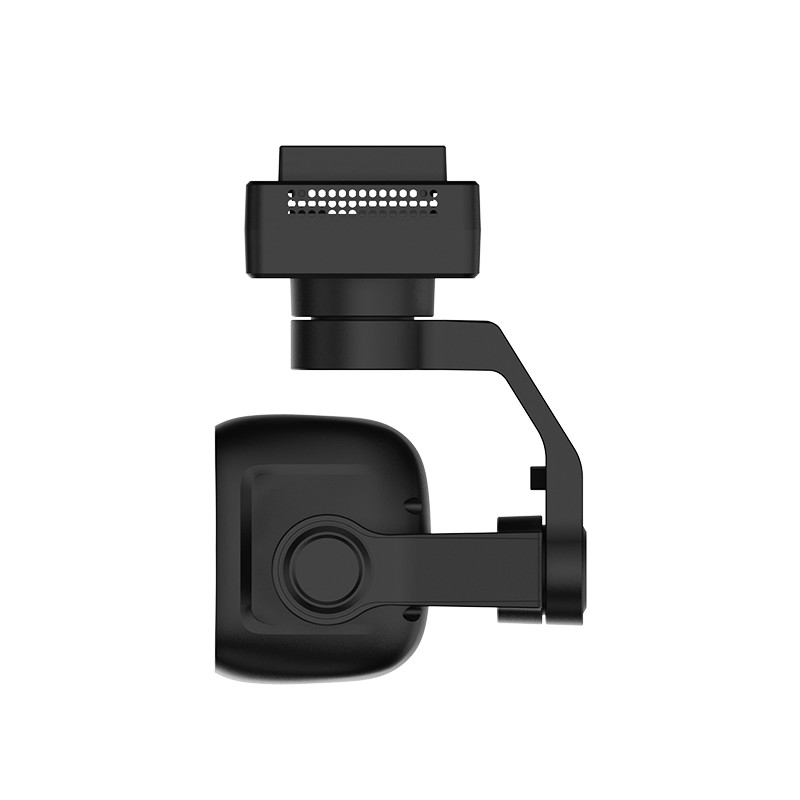

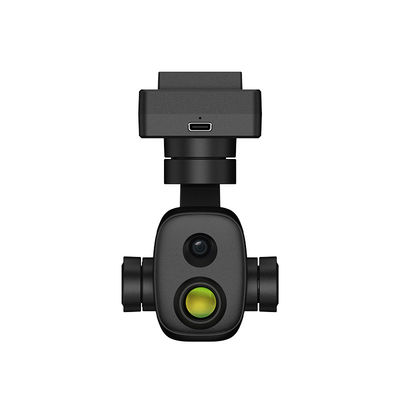

ZT6 is a mini-size and lightweight dual sensors optical pod integrated with an optical sensor  and a thermal imaging sensor to collaborate efficiently.  With a 640X512 high resolution thermal imaging sensor, 1/2.8 inch Sony CMOS, supports 4K  HD Video Recording and Photography. Optional powerful AI identify tracking designed by SIYI, Yaw Axis 540-Degree Rotation, abundant gimbal control interface compatible with both SIYI links and third-party links. High accuracy and high collaboration control algorithms ensure stable imaging during flight. In a word,  ZT6 optical pod is a rare and good payload for multi-rotors, VTOLs, and robotics.

Technical Specification



Video Output Port

Ethernet / CVBS

Micro-HDMI
Control Signal Input Port

S.Bus

UART

Ethernet UDP / TCP
Control Signal Output Port S.Bus
High Accuracy 3 Axis Stabilization

Yaw

Pitch

Rol
Working Voltage 11 ~ 25.2 V
Power Consumption

Average 6.5 W

Summit 15 W
Waterproof Level IP53
Working Temperature -10 ~ 50 ℃
Dimension 73.5 x 75 x 131.5 mm
Weight

Excluding Anti-Vibration Board: 177 g

Including Anti-Vibration Board: 197 g

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 0

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 1

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 2

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 3

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 4

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 5

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 6

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 7

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 8

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 9

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 10

ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera Thermal Imaging 3-Axis Stabilizer ArduPilot 11
