A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67
A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Model Number: A2 Mini
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8 work days
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Contact Now

Detail Information
Controllable Yaw Angle: -90 ~ 25° FPV: 1/2.7-Inch CMOS 2 MP Effective Resolution
Camera Lens: Ultra Wide Angle 160° Horizontal Video Qutput: Ethernet
Control Signal Input: S.bus, UART, Ethernet UDP/TCP Product Dimension: 65*43*50 Mm
Product Weight: 85 G
Highlight:

160 degree FOV FPV Gimbal

,

1080p FPV Gimbal

,

IP67 FPV Gimbal

Product Description

Product Description



A2 mini is a lightweight and ultra-wide-angle FPV gimbal, built with industrial protection class,  the 160-degree horizontal FOV makes camera view wide and broad. Pitch angle control can be  widely used for agriculture spraying drones. Ethernet output can be used with some third-party  links. Upside-down mode makes it also a great option for UGV, USV, robotics, RC hobby planes.

Technical Specification



Video Output Port Ethernet
Control Signal Input Port

S.Bus, PWM

Ethernet UDP
Working Voltage 12V
Power Consumption

Average: 2 W

Summit: 12 W
Working Temperature -10°C ~ 50°C
Dimension 65*43*50 mm
Weight 85 g
Controllable Pitch Angle -90° ~ 25°
Image Sensor 1/2.7 Inch, 2 MP effective resoultion
FOV Horizontal 160°

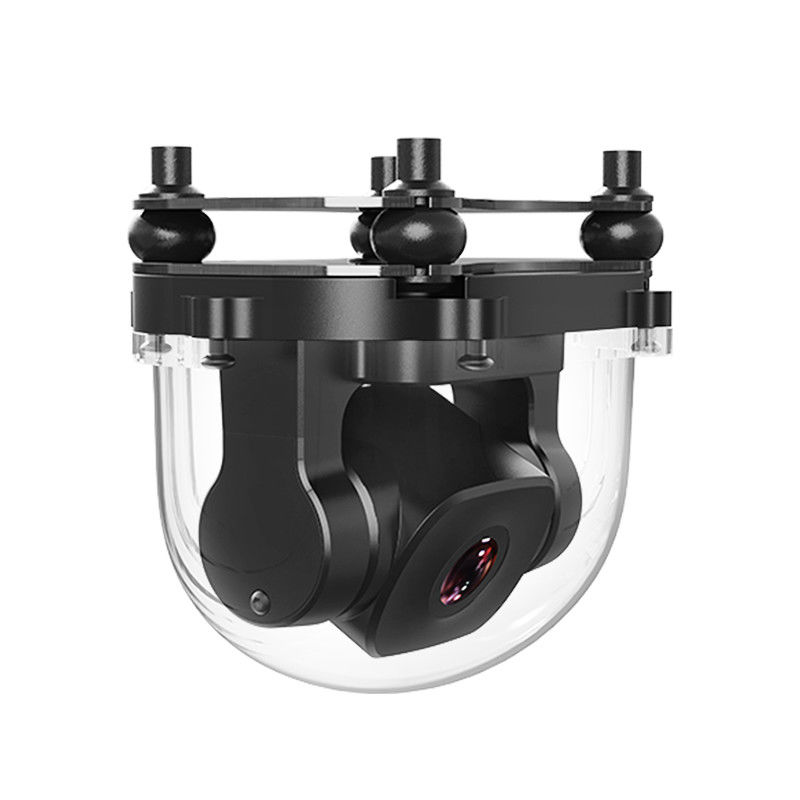

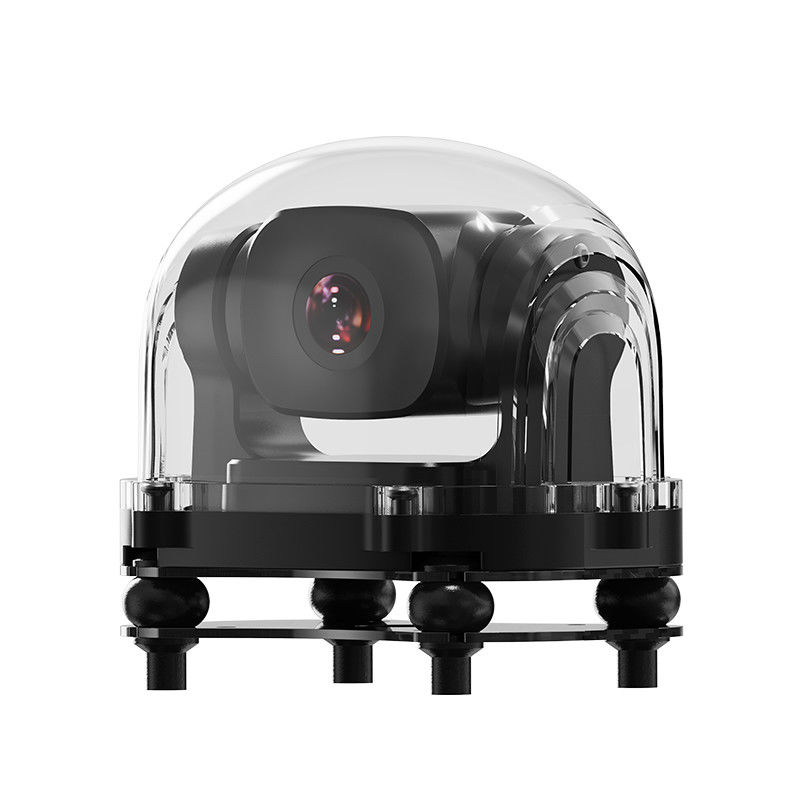

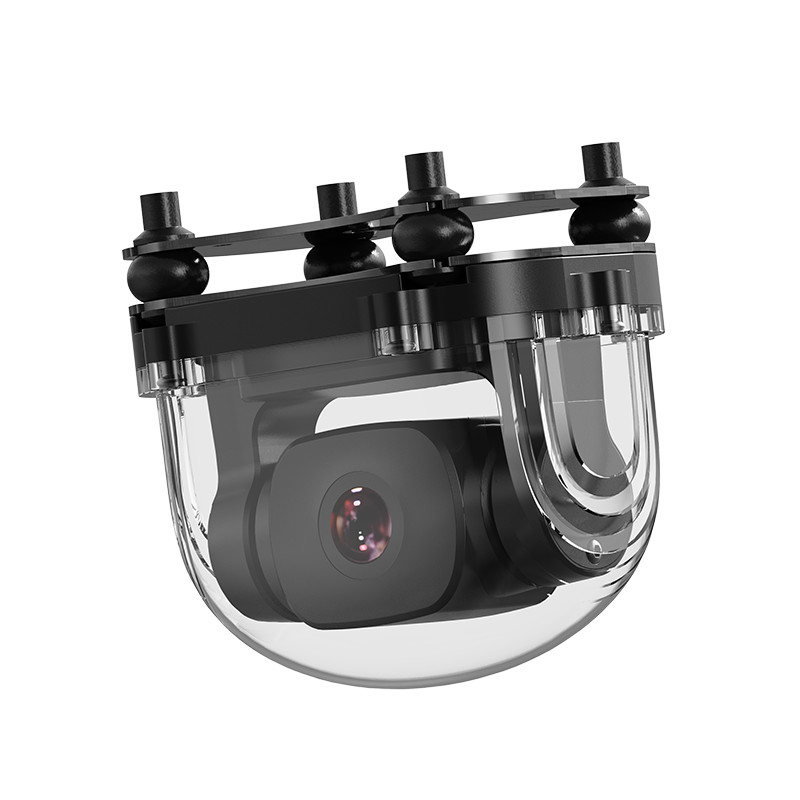

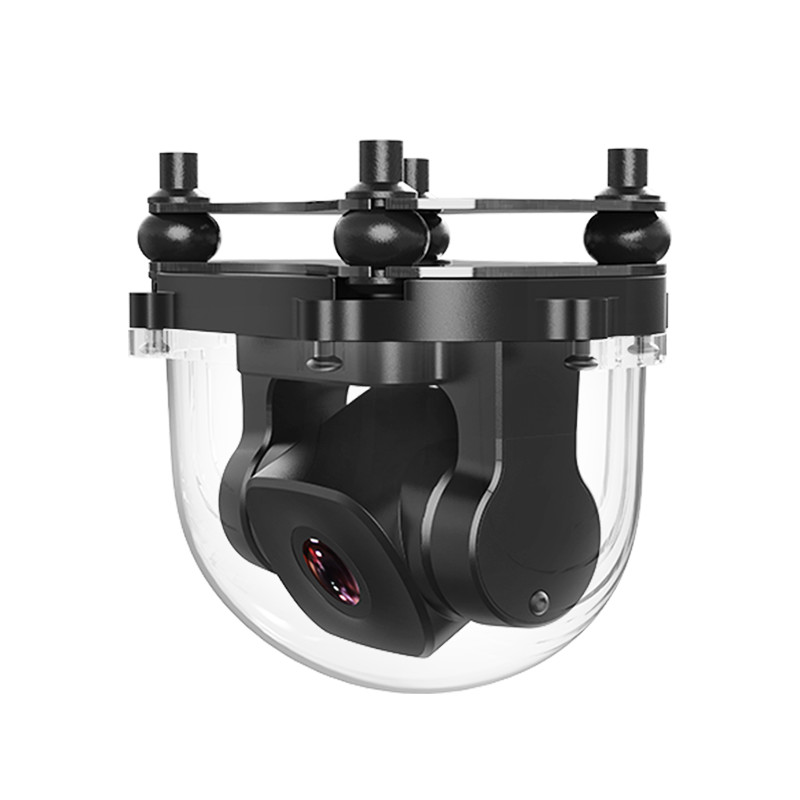

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 0

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 1

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 2

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 3

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 4

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 5

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 6

A2 Mini Ultra Wide Angle FPV Gimbal Single Axis Tilt With160 Degree FOV 1080p Starlight Camera Sensor IP67 7
