Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz

Product Details

Place of Origin: Guangdong, China

Brand Name: flysafe

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: LC, T/T

Get Best Price
Highlight:

Multi Band Anti Drone Antenna

,

2.4GHz Anti Drone Antenna

,

1.2GHz counter drone antenna

Frequency Range:
1.2GHz/1.5GHz/2.4GHz (customized)
Gain(dBi):
≥6dB
VSWR:
≤1.5
Polarization:
Right-handed Circular Polarization
Operate Current:
2.8A
Ovality(dB):
≤±2dB
Input Impedance(Ω):
50Ω
Output Frequency:
≥10W
Input Connector Type:
TNC-K,Side Entry Cable
Frequency Range:
1.2GHz/1.5GHz/2.4GHz (customized)
Gain(dBi):
≥6dB
VSWR:
≤1.5
Polarization:
Right-handed Circular Polarization
Operate Current:
2.8A
Ovality(dB):
≤±2dB
Input Impedance(Ω):
50Ω
Output Frequency:
≥10W
Input Connector Type:
TNC-K,Side Entry Cable
Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz
1.2GHz/1.5GHz/2.4GHz multi-band UAV counter antenna

Product Description

This 1.2GHz 1.5GHz 2.4GHz Right Hemisphere Circularly Polarized Antenna is a high performance multi-band antenna that operates in the 1.2GHz, 1.5GHz and 2.4GHz bands. It adopts advanced technology and design concepts to provide stable and efficient signal transmission solutions for wireless communication systems. Whether it is in satellite communication, wireless LAN, mobile communication or other applications that require circularly polarized antennas, it can play an excellent role. This 1.2GHz 1.5GHz 2.4GHz Right Handed Hemisphere Circularly Polarized Antenna can cover three frequency bands at the same time: It can cover three frequency bands at the same time, 1.2GHz, 1.5GHz and 2.4GHz, so it can be widely used in a variety of wireless communication systems. In satellite communication systems, it can be used to receive and transmit satellite signals. Due to its multi-frequency band coverage and circular polarization characteristics, it can adapt to the requirements of different frequency bands and polarization modes in satellite communication to ensure a stable signal link.

Product Paramenters

Electrical Specifications

Frequency Range
1.2GHz 1.5GHz 2.4GHz (customized)

Gain(dBi)
≥6dB

VSWR
≤1.5

Polarization
right-handed circular polarization

Operate current
2.8A

ovality(dB)
≤±2dB

Input Impedance(Ω)
50Ω

Output frequency
≥10W

Input connector type
TNC-K,Side entry cable

Mechanical Specifications

Dimensions­ mm(Height/Width/Depth)
φ120×H 52.5(mm)

Antenna weight(kg)
0.284KG

Radome Color
White

Material
ABS

Operating temperature(ºC)
-40℃~+60℃

Installation Method
threaded connection


Details Images

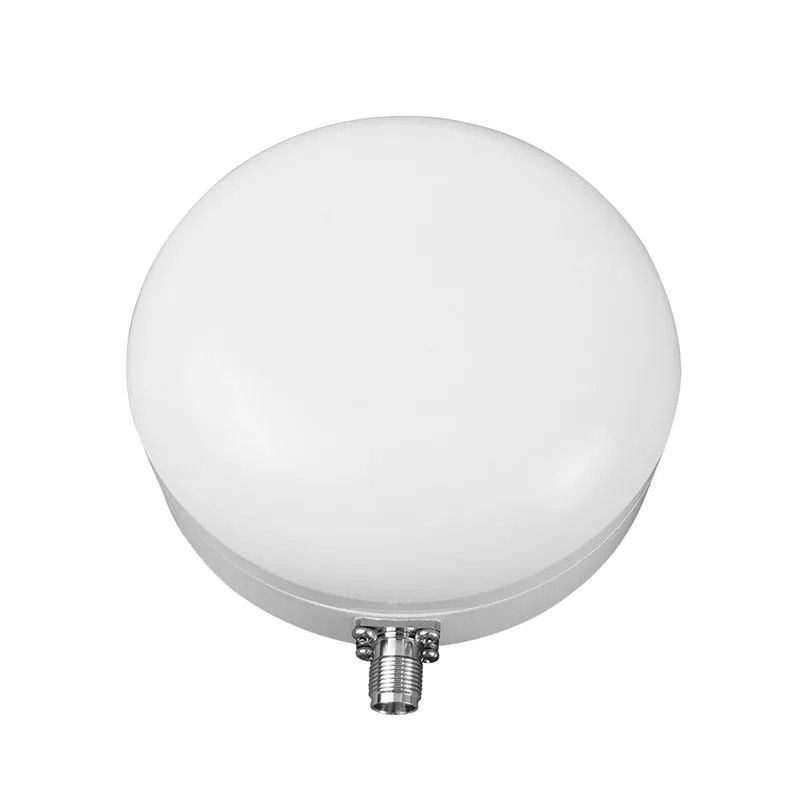

Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz 0

Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz 1
Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz 2
Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz 3
