Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable
Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable

Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 7-15 work days
Payment Terms: LC,T/T
Contact Now

Detail Information
Packing Size(mm): 975*330*330mm Antenna Weight(kg): 13.5Kg
Maximum Input Power(W): 300W
Highlight:

Lightweight Anti Drone Antenna

,

850Mhz Anti Drone Antenna

,

850Mhz long range drone antenna

Product Description

The 550-650/750-850Mhz bands are customizable and lightweight drone counter antennas

Product Description

This high performance 550-650/750-850MHZ 65 panel antenna is designed for excellent signal transmission and reception in specific frequency bands. It is a high performance and reliable panel antenna with precise band coverage, high gain performance, high quality materials and exquisite craftsmanship, and easy installation. It is suitable for various wireless communication application scenarios, providing stable and efficient signal support for your communication system. By choosing our products, you will get excellent performance and high quality service.

Product Paramenters

Electrical Specifications

Frequency Range
550-650 MHZ
750-850 MHZ

Gain(dBi)
550-650 MHZ 10±1dBi
750-850 MHZ 12±1dBi

VSWR
≤1.5

Polarization
550-650 MHZ V
750-850 MHZ V

Horizontal Beamwidth(0º)
65±8º

Vertical Beamwidth(0º)
35±5º

Front-to-back ratio(dB)
≥22

Electrical lower inclination(0º)
0º

Isolation(dB)
≥26

Input Impedance(Ω)
50Ω

Maximum input power(W)
300W

Input connector type
2*N-K

Lightning Protection
DC Ground

Mechanical Specifications

Dimensions­-mm(Height/Width/Depth)
900*280*80mm

Packing size(mm)
975*330*330mm

Antenna weight(kg)
13.5Kg

Rated Wind Velocity(m/s)
31m/s

Operational Humidity(％)
10- 95

Radome Color
offwhite

Radome material
UPVC

Operating temperature(ºC)
-40～55 º

Installation Method
Pole mounting

Mounting hardware(mm)
￠40～￠80

Mechanical tilt(º)
0-10º


Details Images

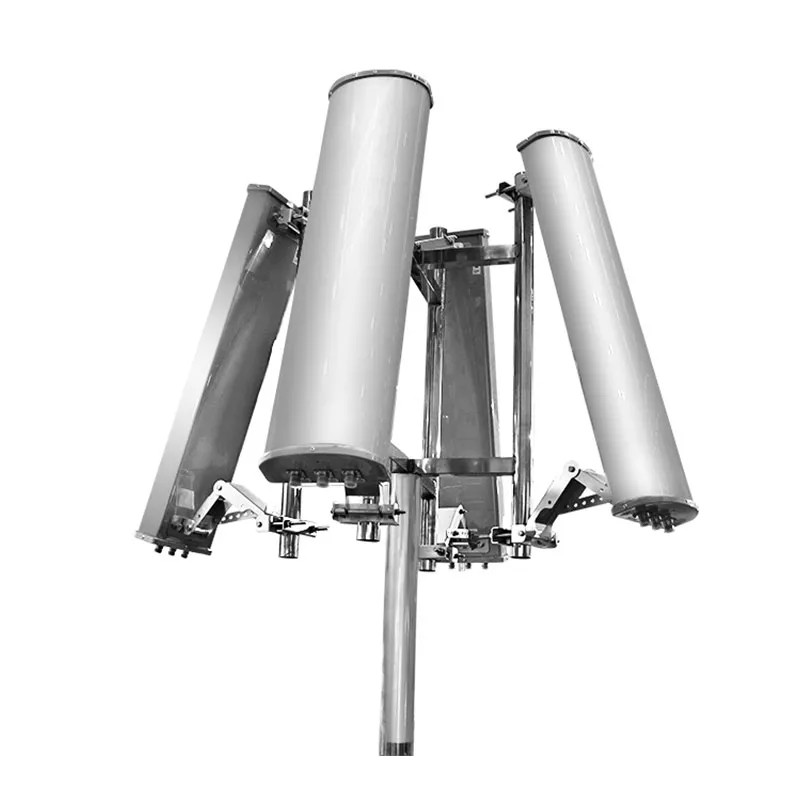

Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable 0

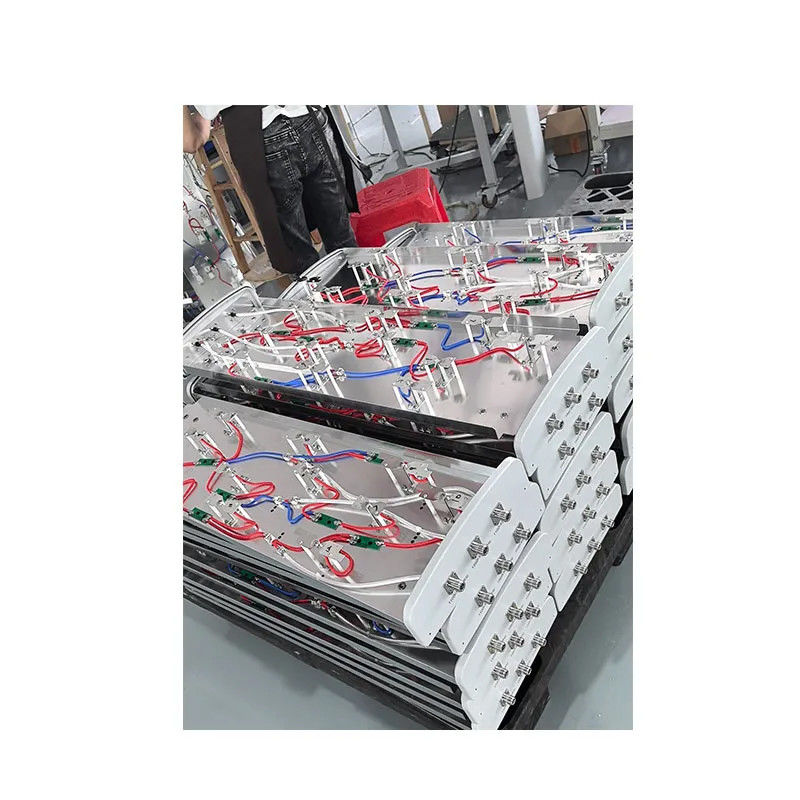

Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable 1

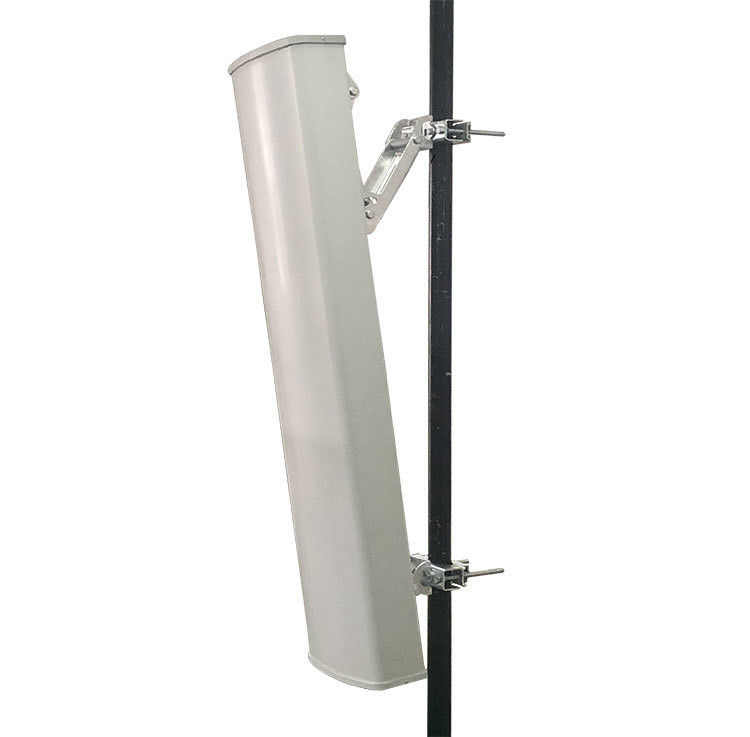

Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable 2
