885g Directional 5G Antenna High Gain 2400Mhz-2500Mhz 5700Mhz-5900Mhz

885g Directional 5G Antenna High Gain 2400Mhz-2500Mhz 5700Mhz-5900Mhz

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	5-8work days
Payment Terms:	LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Contact Now

Detail Information
Directional Antenna Frequency Range:	840-960/1560-1620/2400-2500/5700-5900MHIZ	Maximum Input Power(W):	50W
Dimensions-mm(Height/Width/Depth):	26026040mm	Antenna Weight:	885g
Highlight:	885g directional 5g antenna , 2400Mhz directional 5g antenna , 5700Mhz high gain directional antenna

Product Description

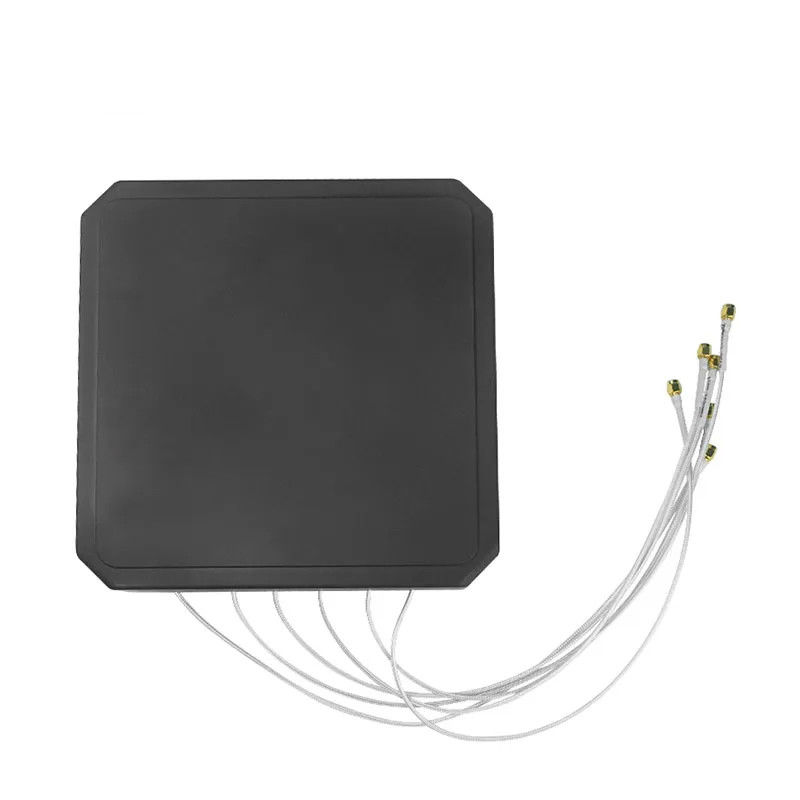

885g Directional Antenna 260*260*40mm Lightweight and Durable for 840-960/1560-1620/2400-2500/5700-5900Mhiz

Product Description

This small square directional antenna can be used to boost WiFi drone signals for better device results. The device can extend the coverage area, improve the signal quality and reduce the interference with the directional antenna. Moreover, this antenna is made of ABS material, which is very lightweight and easy to install. The directional antenna can force the drone to leave about 1500 to 2000 meters with low energy consumption. The small square directional antenna has a compact design and is easy to install, making it suitable for a variety of environments.

Product Paramenters

directional antenna Frequency Range	840-960/1560-1620/2400-2500/5700-5900MHIZ
Gain (dBi)	840-960MHz 8dbi 1560-1620MHz 12dbi 2400-2500MHz 14.5dbi 5700-5900MHz 17.5dbi
VSWR	≤2
Polarization	840-960MHzV 1560-1620MHz V 2400-2500MHz V 5700-5900MHZH
Horizontal Beamwidth (0°)	840-960MHz 65±10° 1560-16201MHz 65±10° 2400-2500MHIz 35±5° 5700-5900MMHz 22±3°
Vertical Beamwidth (0°)	840-960MHz 65±10° 1560-16201MHz 35±10° 2400-2500MHlz 35±5° 5700-5900MMHz 32±3°
Front-to-back ratio(dB)	≥20
Electrical lower inclination(0°)	0°
Input Impedance(Q)	500
Maximum input power(W)	50W
Input connector type	N*J or customized(Wire length customized too)
Lightning Protection	DC Ground
Mechanical Specifications
Dimensions-mm(Height/Width/Depth)	26026040mm
Antenna weight(kg)	885g
Rated Wind Velocity(m/s)	60m/s
Operational Humidity(%)	10-95
Radome Color	Black color
Radome material	ABS
Operating temperature(C)	-30~70°
Installation Method	Handheld

Details Images
