Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable

Lightweight 750-850Mhz Bands Long Range Anti Drone Antenna Customizable

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	5-8work days
Payment Terms:	LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Contact Now

Detail Information
Packing Size(mm):	975330330mm	Antenna Weight(kg):	13.5Kg
Maximum Input Power(W):	300W
Highlight:	Lightweight Anti Drone Antenna , 850Mhz Anti Drone Antenna , 850Mhz long range drone antenna

Product Description

The 550-650/750-850Mhz bands are customizable and lightweight drone counter antennas

Product Description

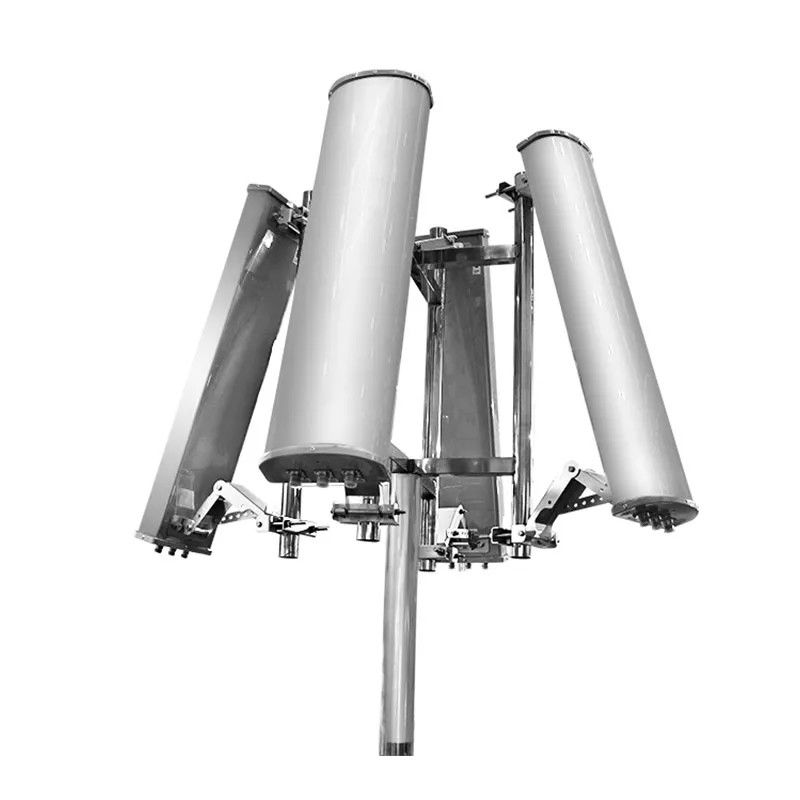

This high performance 550-650/750-850MHZ 65 panel antenna is designed for excellent signal transmission and reception in specific frequency bands. It is a high performance and reliable panel antenna with precise band coverage, high gain performance, high quality materials and exquisite craftsmanship, and easy installation. It is suitable for various wireless communication application scenarios, providing stable and efficient signal support for your communication system. By choosing our products, you will get excellent performance and high quality service.

Product Paramenters

Electrical Specifications
Frequency Range	550-650 MHZ 750-850 MHZ
Gain(dBi)	550-650 MHZ 10±1dBi 750-850 MHZ 12±1dBi
VSWR	≤1.5
Polarization	550-650 MHZ V 750-850 MHZ V
Horizontal Beamwidth(0º)	65±8º
Vertical Beamwidth(0º)	35±5º
Front-to-back ratio(dB)	≥22
Electrical lower inclination(0º)	0º
Isolation(dB)	≥26
Input Impedance(Ω)	50Ω
Maximum input power(W)	300W
Input connector type	2*N-K
Lightning Protection	DC Ground
Mechanical Specifications
Dimensions-mm(Height/Width/Depth)	90028080mm
Packing size(mm)	975330330mm
Antenna weight(kg)	13.5Kg
Rated Wind Velocity(m/s)	31m/s
Operational Humidity(％)	10- 95
Radome Color	offwhite
Radome material	UPVC
Operating temperature(ºC)	-40～55 º
Installation Method	Pole mounting
Mounting hardware(mm)	￠40～￠80
Mechanical tilt(º)	0-10º
