8dBi 915MHz Fiberglass Counter Drone Antenna Lora Communication MIMO Antenna

8dBi 915MHz Fiberglass Counter Drone Antenna Lora Communication MIMO Antenna

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	flysafe
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Contact Now

Detail Information
Frequency Range:	806-960 MHz	Gain:	8 DBi
Maximum Input Power:	100 W	Dimensions:	Diameter 32*1500mm
Antenna Weight:	0.85kg
Highlight:	MIMO counter drone antenna , 915MHz counter drone antenna , Fiberglass mimo antenna

Product Description

roducts

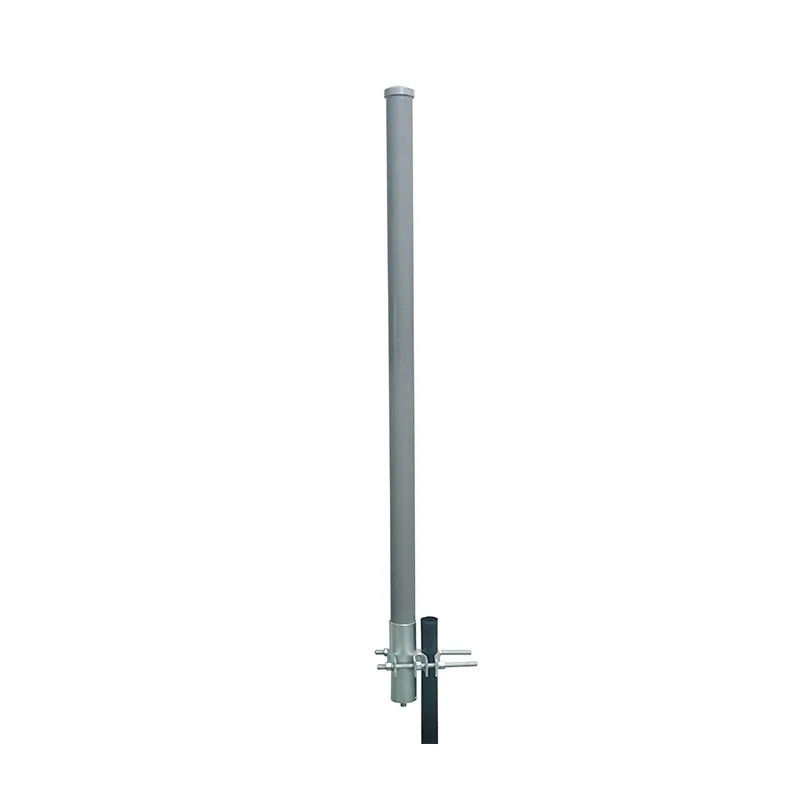

8dBi 915MHz 868 Fiberglass Lora Communication MIMO Antenna

Product Paramenters

Electrical Specifications
Frequency range	806-960 MHz
Material	Fiberglass
Bandwidth	83.5 MHz
Gain	8 dBi
Half-power beam width	H:360° V:15±2°
VSWR	≤1.5
Input Impedance	50Ω
Polarization	Vertical
Maximum input power	100 W
Lightning protection	DC Ground
Input connector type	N/F or Customized
Mechanical Specifications
Dimensions	Φ32*1500mm
Antenna weight	0.85kg
Operating temperature	-40～60 C°
Rated Wind Velocity	60 m/s
Radome color	Gray,Customized
Mounting way	Pole-holding
Mounting hardware	￠40-￠60 mm
