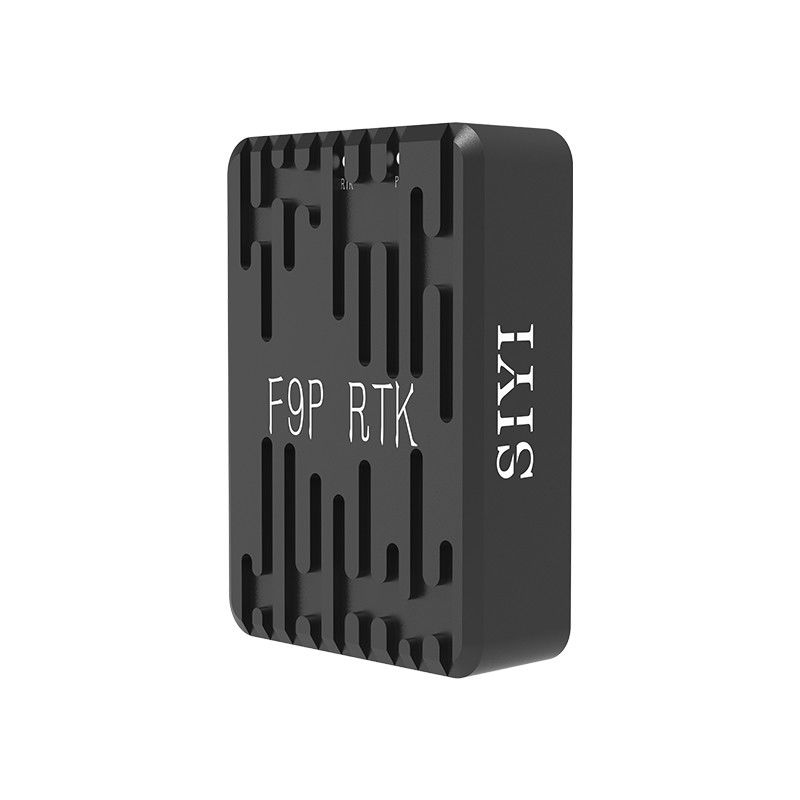

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System

Name: SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System
Brand: Shenzhen Baohong intelligent manufacturing Co., LTD
SKU: F9P RTK
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: flysafe

Model Number: F9P RTK

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: 5-8 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Navigation FPV Accessories, FPV Accessories RTK Module, Navigation rtk module for drone


Satellite Receiver:	184 Channel ZED-F9P (Ublox)	Electronic Compass:	IST8310
Satellite Navigation System:	GPS GLONASS Beidou Galileo	Satellite Bands:	GPS-L1C/A, GPS - L2C, GLONASS - L1OF, GLONASS- L2OF GALILEO - E1B/C, GALILEO- E5b BeiDou - B1I, BeiDou - B2I QZSS - L1C/A, QZSS - L2C
Dimensions:	47 X 33 X 13 Mm	Weight:	57 G

Satellite Receiver:	184 Channel ZED-F9P (Ublox)
Electronic Compass:	IST8310
Satellite Navigation System:	GPS GLONASS Beidou Galileo
Satellite Bands:	GPS-L1C/A, GPS - L2C, GLONASS - L1OF, GLONASS- L2OF GALILEO - E1B/C, GALILEO- E5b BeiDou - B1I, BeiDou - B2I QZSS - L1C/A, QZSS - L2C
Dimensions:	47 X 33 X 13 Mm
Weight:	57 G

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System

Product Description

F9P RTK module is a high-accuracy centimeter-level four-satellite multi-frequency navigation and positioning system developed for flight control systems. Through real-time kinematic positioning technology,the 3D positioning accuracy is improved from meter level to centimeter level. lt integrates positioning, altitude detection and dual-module direction finding functions. RTK technology makes up for the shortcomings of traditional GPS, barometer, and magnetic compass, enables UAVs to adapt to complex magnetic field environments. It is easy to operate and supports all-weather operations, providing accurate and reliable system solutions for high-precision application scenarios such as surveying and mapping, geographic information, agriculture, forestry, water conservancy, environmental monitoring, urban planning, transportation, and marine development.

Technical Specification

Position Accuracy	1 cm + 1 ppm
Direction Finding Accuracy (Dual Module)	(0.25 / R) ° *R is the distance between two mobile station antennas in meters.
Single Point Position	1.5M CEP
SBAS Auxiliary Position	1.0M CEP
Surveying Time	RTK < 55 s
GPS Acquisition Time	Cold Start < 23 s Hot Start < 1 s
Antenna Gain	Mobile: 2 dBi Base: 5.5 dBi
Dual Module Direction Finding	Supported Yaw Accuracy: 0.35 edg (for reference)
Interfaces	2 x UART 1 x USB (Type-C)
Antenna Connector Type	MMCX
Working Voltage	4.5 ~ 5.5 V
Power Consumption	0.6 W
Working Temperature	–30 ~ 75 °C
Product Dimension	47 x 33 x 13 mm
Product Weight	31 g

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 0

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 1

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 2

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 3

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 4

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 5

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation and Positioning System 6
