SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System
SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Model Number: F9P RTK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

Detail Information
Satellite Receiver: 184 Channel ZED-F9P (Ublox) Electronic Compass: IST8310
Satellite Navigation System: GPS GLONASS Beidou Galileo Satellite Bands: GPS-L1C/A, GPS - L2C, GLONASS - L1OF, GLONASS- L2OF GALILEO - E1B/C, GALILEO- E5b BeiDou - B1I, BeiDou - B2I QZSS - L1C/A, QZSS - L2C
Dimensions: 47 X 33 X 13 Mm Weight: 57 G
Highlight:

Centimeter Level RTK Module

,

Four-Satellite RTK Module

,

Mutilfrequency RTK Module

Product Description

Product Description

F9P RTK module is a high-accuracy centimeter-level four-satellite multi-frequency navigation  and positioning system developed for flight control systems. Through real-time kinematic  positioning technology,the 3D positioning accuracy is improved from meter level to centimeter level. lt integrates positioning, altitude detection and dual-module direction finding functions. RTK technology makes up for the shortcomings of traditional GPS, barometer, and magnetic compass, enables UAVs to adapt to complex magnetic field environments.  It is easy to operate and supports all-weather operations, providing accurate and reliable  system solutions for high-precision application scenarios such as surveying and mapping,  geographic information, agriculture, forestry, water conservancy, environmental monitoring,  urban planning, transportation, and marine development.

Technical Specification



Position Accuracy 1 cm + 1 ppm
Direction Finding Accuracy (Dual Module)

(0.25 / R) °

*R is the distance between two mobile station antennas in  meters.
Single Point Position 1.5M CEP
SBAS Auxiliary Position 1.0M CEP
Surveying Time RTK < 55 s
GPS Acquisition Time

Cold Start < 23 s

Hot Start < 1 s
Antenna Gain

Mobile: 2 dBi

Base: 5.5 dBi
Dual Module Direction Finding

Supported

Yaw Accuracy: 0.35 edg (for reference)
Interfaces

2 x UART

1 x USB (Type-C)
Antenna Connector Type MMCX
Working Voltage 4.5 ~ 5.5 V
Power Consumption 0.6 W
Working Temperature –30 ~ 75 °C
Product Dimension 47 x 33 x 13 mm
Product Weight 31 g

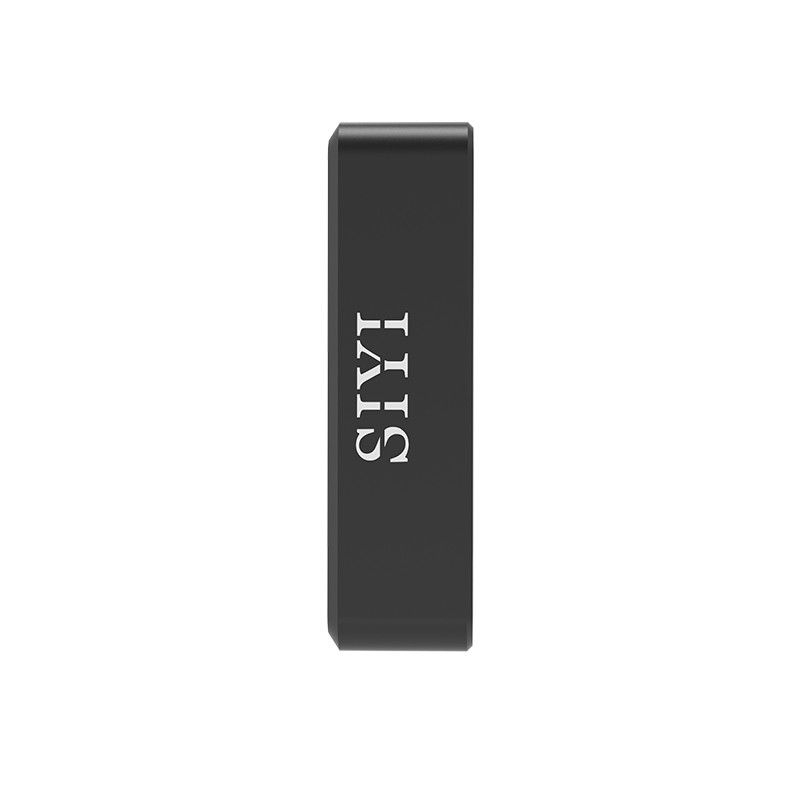

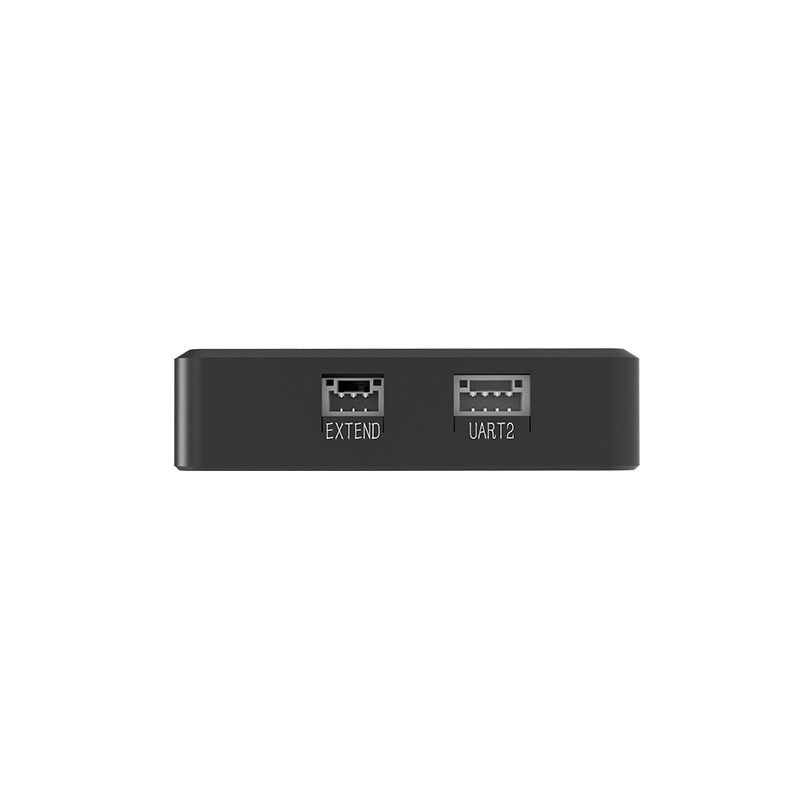

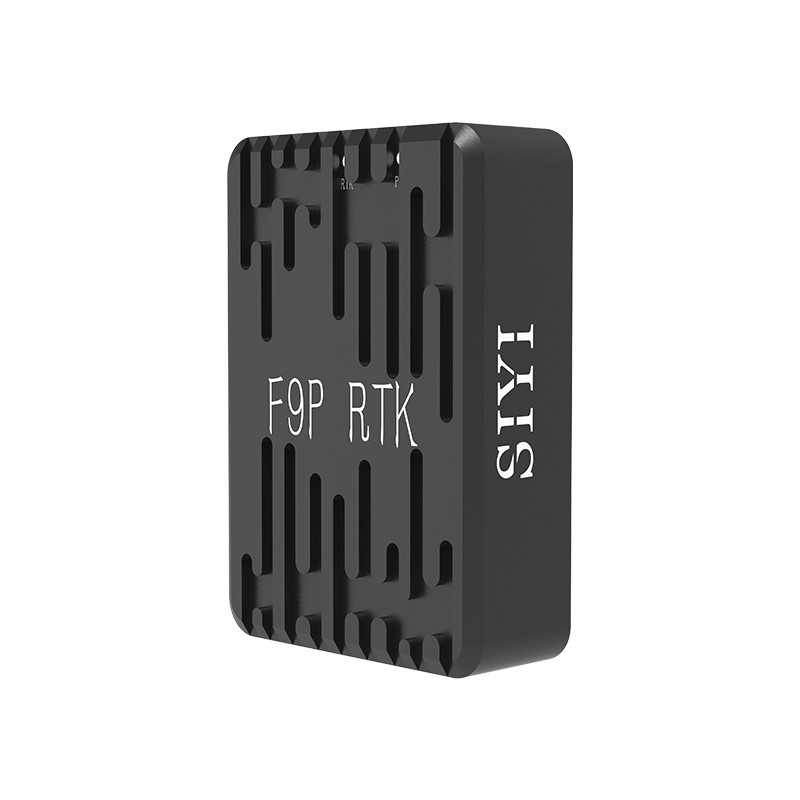

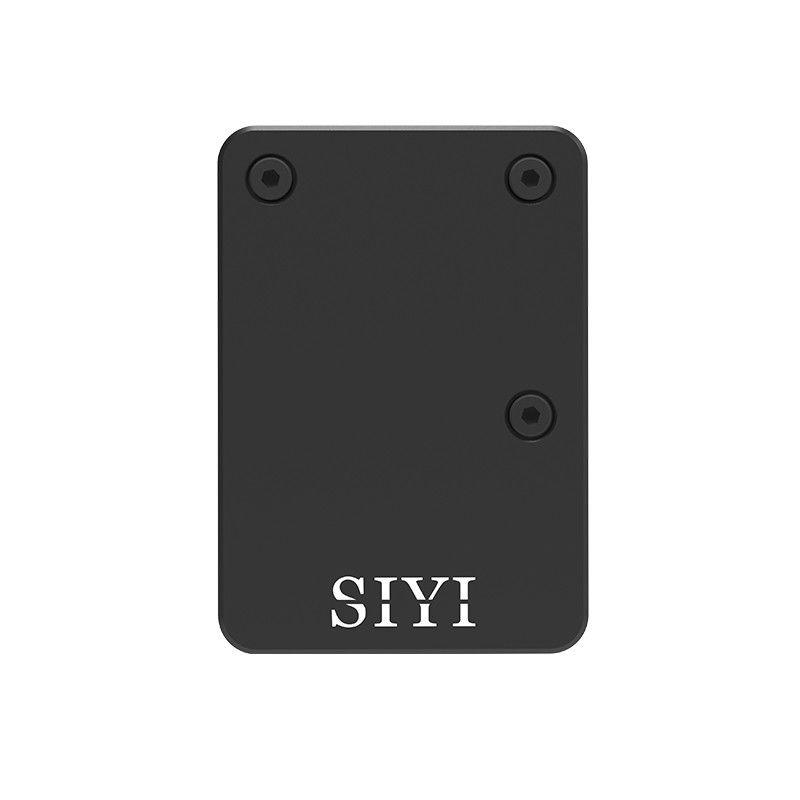

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 0

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 1

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 2

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 3

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 4

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 5

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutilfrequency Navigation And Positioning System 6
