10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency
10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency 10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency 10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency 10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency

10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency

Product Details:
Place of Origin: Guangdong, China
Brand Name: flysafe
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 7-15 work days
Payment Terms: LC,T/T
Contact Now

Detail Information
Directional Antenna Frequency Range: 2400-2500MHz Gain(dBi): 10dBi
Dimensionsmm(Height/Width/Depth): 320*70*16mm Antenna Weight(kg): 0.4KG
Highlight:

10dBi Anti Drone Antenna

,

Directional Anti Drone Antenna

,

10dBi directional cellular antenna

Product Description

2400-2500MHz frequency 10dBi high gain directional antenna

Product Description

2400-2500MHz 10dBi Yagi Directional Antenna is designed for efficient signal transmission and reception in the 2400 - 2500MHz frequency band, this antenna has a high gain of 10dBi, which provides strong signal support for your wireless communication system and ensures a stable and reliable communication connection in both indoor and outdoor environments.2400-2500MHz The 10dBi Yagi directional antenna is suitable for wireless communication systems in the 2.4GHz band, such as Wi-Fi network coverage, wireless LAN extension, etc. It enhances signal coverage and signal quality. It can enhance signal coverage and signal strength, improve network stability and transmission speed.

Product Paramenters

Electrical Specifications

Directional Antenna Frequency Range
2400-2500MHz

Gain(dBi)
10dBi

VSWR
≤1.5

Polarization
vertical

Horizontal Beamwidth(0º)
55±10º

Vertical Beamwidth(0º)
30±10º

Front-to-back ratio(dB)
≥18

Input Impedance(Ω)
50Ω

Maximum input power(W)
100W

Input connector type
N-K

Lightning Protection
DC Ground

Mechanical Specifications

Dimensions­-mm(Height/Width/Depth)
320*70*16mm

Packing size(mm)
Mm

Antenna weight(kg)
0.4K

Rated Wind Velocity(m/s)
31m/s

Operational Humidity(％)
10- 95

Radome Color
black

Radome material
aluminum

Operating temperature(ºC)
-40～55 º

Installation Method
Pole mounting

Mounting hardware(mm)
Φ30～Φ50mm


Details Images

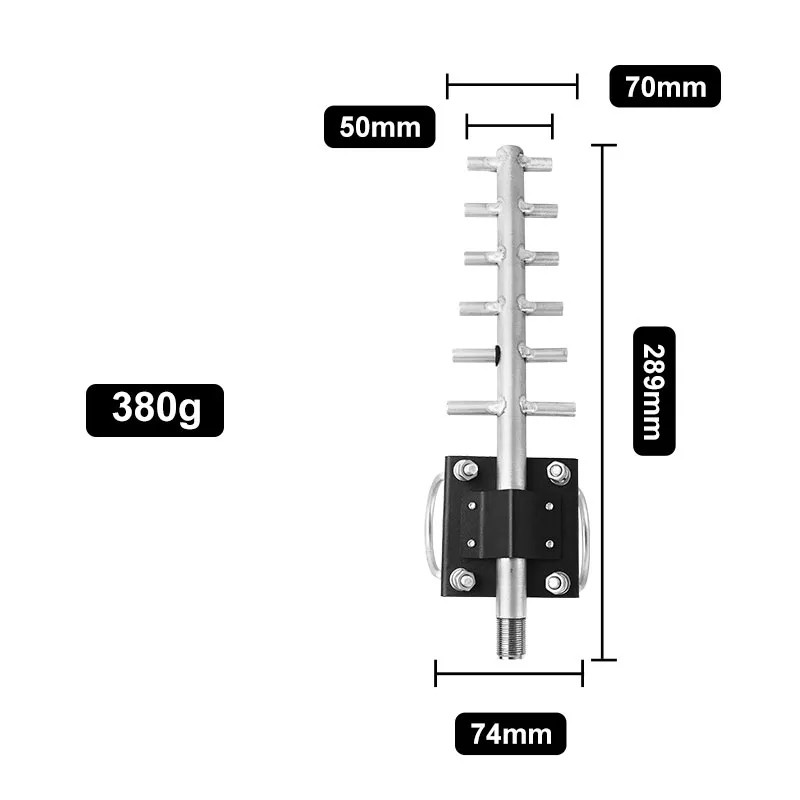

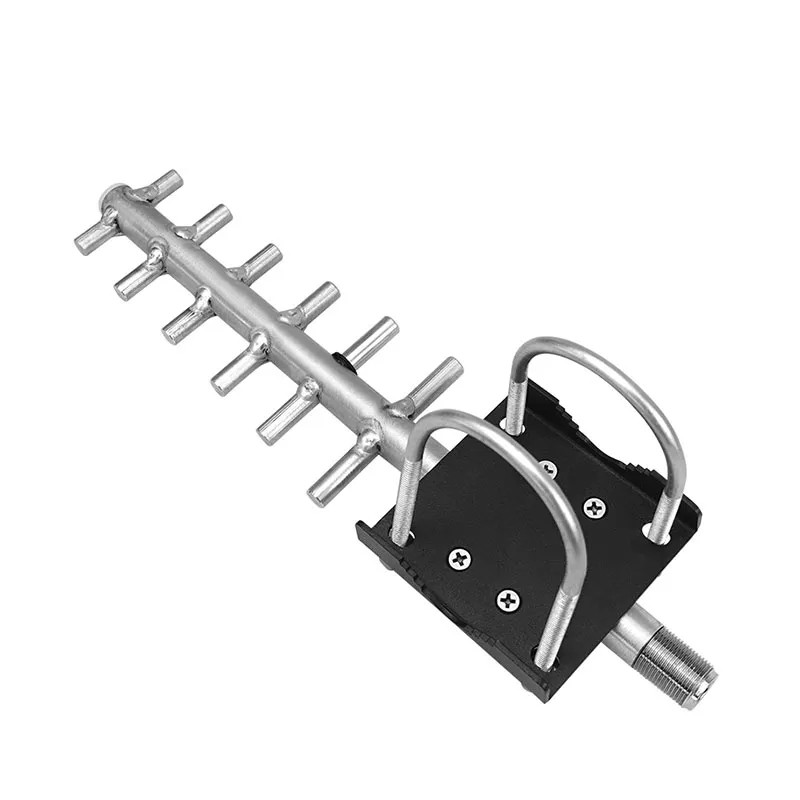

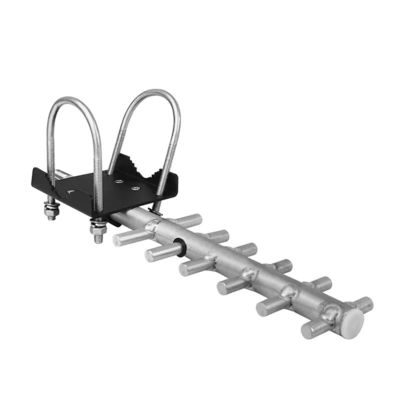

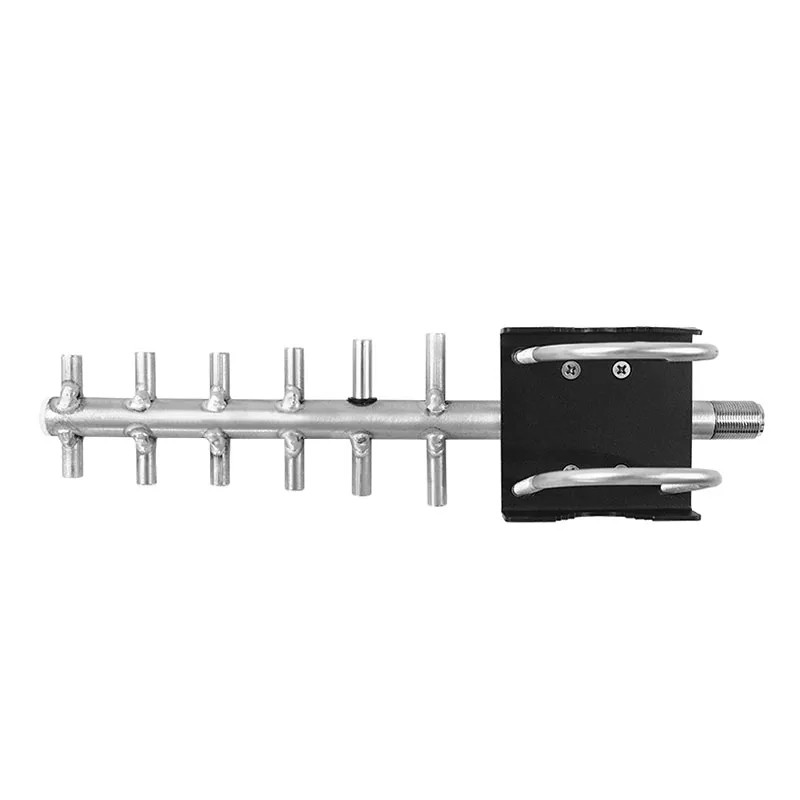

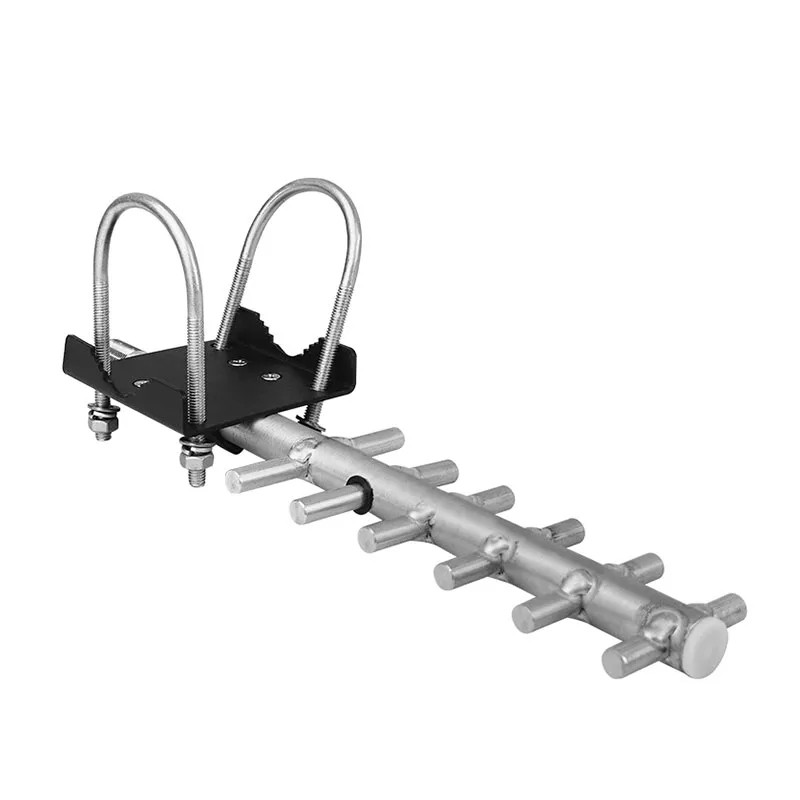

10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency 0
10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency 1
